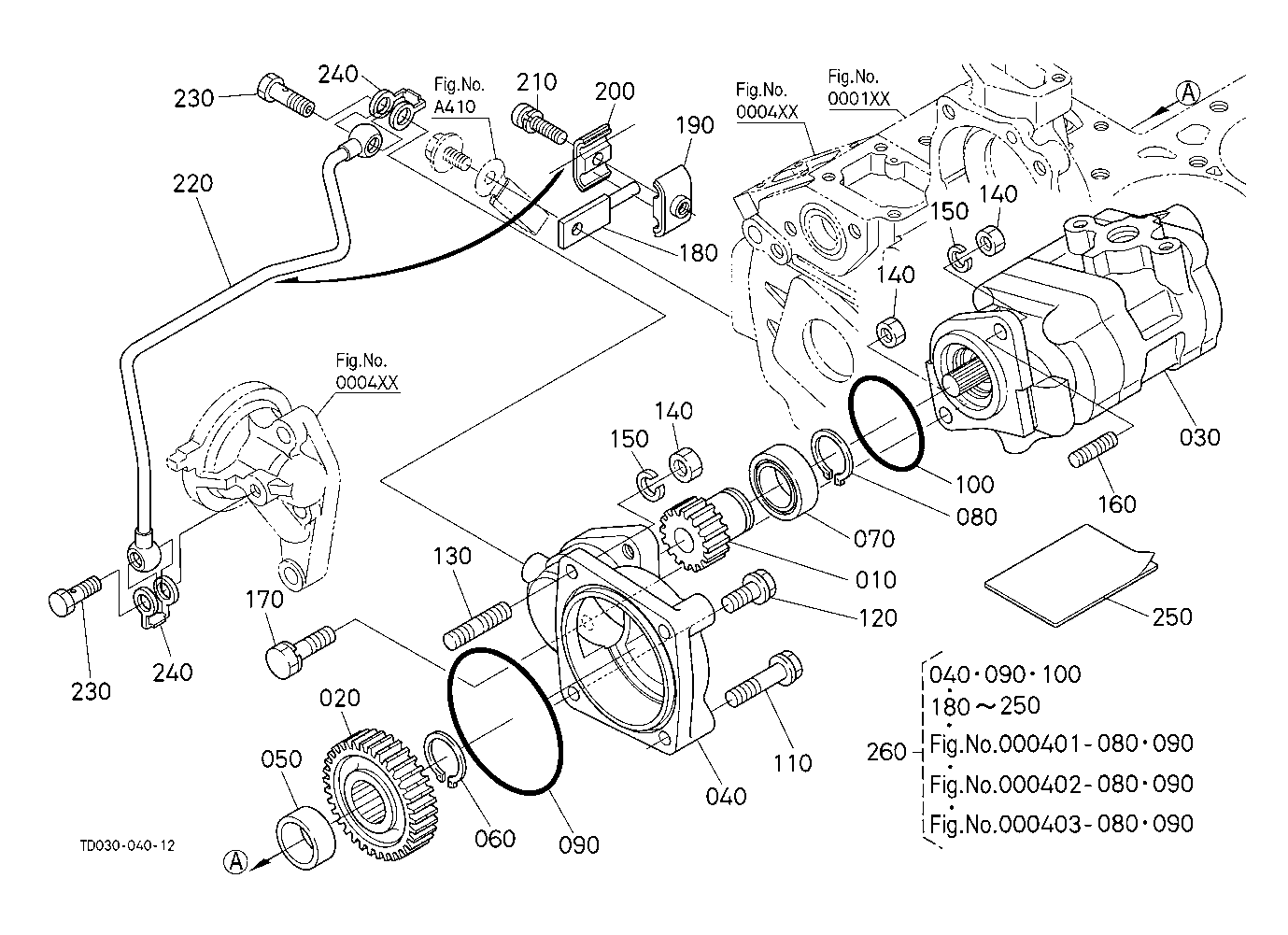

KUBOTA L3130F PARTS HYDRAULIC SYSTEM H12000 HYDRAULIC PUMP

    KUBOTA >kubota-l3130f-parts-hydraulic-system-h12000-hydraulic-pump
    Ref: 010  Part #: T1062-36820  Price: $75.63

    Item: GEAR,17

    QTY:
    Ref: 020  Part #: T1062-36810  Price: $112.02

    Item: GEAR, PUMP DRIVE 41T

    QTY:
    Ref: 030  Part #: T1150-36440  Price: $1,185.46

    Item: ASSY PUMP,HYDRAULIC *

    QTY:
    Ref: 040  Part #: 34070-33612  Price: $60.62

    Item: HOLDER PUMP ***

    QTY:
    Ref: 040  Part #: TD030-33610  Price: $66.15

    Item: HOLDER, PUMP

    QTY:
    Ref: 050  Part #: T1060-36830  Price: $6.94

    Item: COLLAR

    QTY:
    Ref: 060080  Part #: 04612-00250  Price: $0.99

    Item: CIR-CLIP, EXTERNAL ***

    QTY:
    Ref: 070  Part #: TD060-36850  Price: $37.09

    Item: BEARING, BALL (3205)

    QTY:
    Ref: 090  Part #: 04811-10850  Price: $4.16

    Item: O-RING

    QTY:
    Ref: 100  Part #: T1060-36620  Price: $3.83

    Item: O-RING

    QTY:
    Ref: 110  Part #: 01754-50840  Price: $3.75

    Item: BOLT M8x1.25x40 mm ***

    QTY:
    Ref: 120  Part #: 01754-50820  Price: $3.11

    Item: BOLT M8x1.25x20 mm ***

    QTY:
    Ref: 130  Part #: 38240-36330  Price: $1.65

    Item: STUD

    QTY:
    Ref: 140  Part #: 02156-50080  Price: $0.99

    Item: NUT, HEX M8 -1.25 ***

    QTY:
    Ref: 150  Part #: 04512-70080  Price: $0.99

    Item: WASHER,SPRING

    QTY:
    Ref: 160  Part #: 01513-70820  Price: $0.99

    Item: STUD

    QTY:
    Ref: 170  Part #: 01123-50835  Price: $1.04

    Item: BOLT M8x1.25x35 mm ***

    QTY:
    Ref: 180  Part #: TD030-16100  Price: $56.19

    Item: STAY, PIPE CLAMP

    QTY:
    Ref: 190  Part #: 15841-53850  Price: $4.19

    Item: CLAMP, PIPE 1

    QTY:
    Ref: 200  Part #: 15841-53860  Price: $2.60

    Item: CLAMP, PIPE 2

    QTY:
    Ref: 210  Part #: 03024-50520  Price: $0.99

    Item: SCREW, w/WASHER ***

    QTY:
    Ref: 220  Part #: TD030-16092  Price: $88.55

    Item: COMP, PIPE (LUB. OIL)

    QTY:
    Ref: 220  Part #: TD030-16092  Price: $88.55

    Item: COMP, PIPE (LUB. OIL)

    QTY:
    Ref: 230  Part #: 1J818-95780  Price: $7.80

    Item: BOLT, JOINT

    QTY:
    Ref: 240  Part #: 15021-33660  Price: $0.99

    Item: GASKET, COPPER *

    QTY:
    Ref: 240  Part #: 1G557-96650  Price: $1.24

    Item: GASKET *

    QTY:
    Ref: 250  Part #: ---- -  Price: Call for price

    Item: MANUAL INSTRUCTION S/N <=11405

    QTY:
    Ref: 260  Part #: TD030-99300  Price: $441.29

    Item: KIT HOLDER

    QTY:
