Ref	Part #	Item	Price
010	TD030-12400	ASSY ROD, TIE	$350.30
020	3A011-62980	JOINT,TIE ROD	$312.83
030	35533-62860	RING, SET	$2.17
040	35080-44690	CLIP	$1.65
050	35080-44680	COVER, DUST RUBBER	$25.18
060	38440-44780	ASSY END, TIE ROD RH	$55.19
060	38440-44780	ASSY END, TIE ROD RH	$55.19
070	38240-12650	COVER, DUST	$11.89
080	38240-12660	CLIP	$0.99
090	05511-50325	PIN, SPLIT ***	$0.99
100	38240-12830	NUT, SLOTTED	$2.60
110	TD030-12520	ROD, TIE	$55.73
120	02172-50160	NUT, 149400 ***	$1.49
130, 240	33251-62860	CLAMP, TIE ROD	$13.15
140, 250	38430-12560	BOLT	$2.23
150, 270	04512-70100	WASHER,SPRING	$0.99
160, 210, 260	02176-50100	NUT,HEX M10-1.25mm 6T ***	$0.99
170	TD060-14312	COVER	$31.65
180	01135-71020	BOLT M10x1.25x20 mm	$1.31
190	TC650-39800	ASSY CYL.,HYDR PS	$1,275.93
190	TC650-39800	ASSY CYL.,HYDR PS	$1,275.93
200	3A111-62130	CLAMP	$11.94
220	35564-62820	ASSY SPACER, TIE ROD	$156.52
230	35523-62870	SPACER, TIE ROD 1	$116.14

Ref: 010 Part #: TD030-12400 Price: $350.30

Item: ASSY ROD, TIE

QTY:

Ref: 020 Part #: 3A011-62980 Price: $312.83

Item: JOINT,TIE ROD

QTY:

Ref: 030 Part #: 35533-62860 Price: $2.17

Item: RING, SET

QTY:

Ref: 040 Part #: 35080-44690 Price: $1.65

Item: CLIP

QTY:

Ref: 050 Part #: 35080-44680 Price: $25.18

Item: COVER, DUST RUBBER

QTY:

Ref: 060 Part #: 38440-44780 Price: $55.19

Item: ASSY END, TIE ROD RH

QTY:

Ref: 060 Part #: 38440-44780 Price: $55.19

Item: ASSY END, TIE ROD RH

QTY:

Ref: 070 Part #: 38240-12650 Price: $11.89

Item: COVER, DUST

QTY:

Ref: 080 Part #: 38240-12660 Price: $0.99

Item: CLIP

QTY:

Ref: 090 Part #: 05511-50325 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 100 Part #: 38240-12830 Price: $2.60

Item: NUT, SLOTTED

QTY:

Ref: 110 Part #: TD030-12520 Price: $55.73

Item: ROD, TIE

QTY:

Ref: 120 Part #: 02172-50160 Price: $1.49

Item: NUT, 149400 ***

QTY:

Ref: 130240 Part #: 33251-62860 Price: $13.15

Item: CLAMP, TIE ROD

QTY:

Ref: 140250 Part #: 38430-12560 Price: $2.23

Item: BOLT

QTY:

Ref: 150270 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 160210260 Part #: 02176-50100 Price: $0.99

Item: NUT,HEX M10-1.25mm 6T ***

QTY:

Ref: 170 Part #: TD060-14312 Price: $31.65

Item: COVER

QTY:

Ref: 180 Part #: 01135-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 190 Part #: TC650-39800 Price: $1,275.93

Item: ASSY CYL.,HYDR PS

QTY:

Ref: 190 Part #: TC650-39800 Price: $1,275.93

Item: ASSY CYL.,HYDR PS

QTY:

Ref: 200 Part #: 3A111-62130 Price: $11.94

Item: CLAMP

QTY:

Ref: 220 Part #: 35564-62820 Price: $156.52

Item: ASSY SPACER, TIE ROD

QTY:

Ref: 230 Part #: 35523-62870 Price: $116.14

Item: SPACER, TIE ROD 1

QTY:

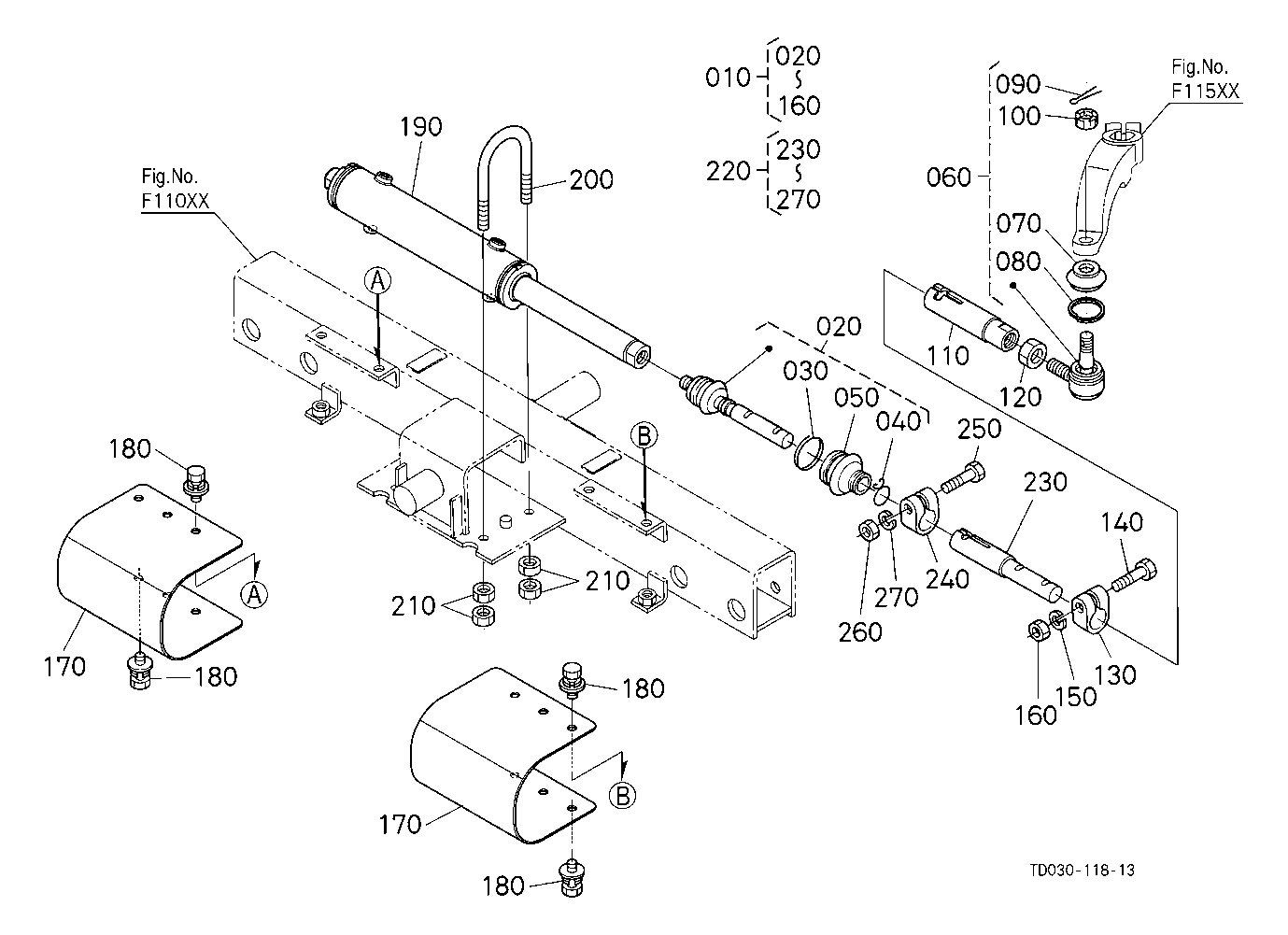

KUBOTA L3240F PARTS HYDRAULIC SYSTEM G18001 STEERING CYLINDER
