Ref	Part #	Item	Price
010	TA040-20414	CASE(TRANSMISSION)	$2,592.24
010	TA030-20420	CASE, TRANSMISSION ***	$1,765.58
020	31301-14230	GAUGE, OIL SIGHT	$15.53
030, 130	05012-01018	PIN, STRAIGHT	$1.00
040	01574-51260	STUD	$2.57
050	01133-51260	BOLT M12x1.25x60 mm ***	$1.95
060	01133-51235	BOLT M12x1.25x35 mm ***	$1.63
070	04512-50120	WASHER, SPRING LOCK ***	$1.70
080	02176-50120	NUT, HEX M12x1.25 ***	$0.99
090	15512-96010	PLUG, DRAIN	$7.59
100	04717-02150	WASHER, SEAL w/RUBBER	$2.37
110, 160, 170	34076-60470	PLUG	$1.72
120	TA040-60450	HOLDER, BEARING ***	$417.25
140	01133-51040	BOLT M10x1.25x40 mm ***	$1.90
150	01133-51060	BOLT M10x1.25x60 mm ***	$2.13

Ref: 010 Part #: TA040-20414 Price: $2,592.24

Item: CASE(TRANSMISSION)

QTY:

Ref: 010 Part #: TA030-20420 Price: $1,765.58

Item: CASE, TRANSMISSION ***

QTY:

Ref: 020 Part #: 31301-14230 Price: $15.53

Item: GAUGE, OIL SIGHT

QTY:

Ref: 030130 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 040 Part #: 01574-51260 Price: $2.57

Item: STUD

QTY:

Ref: 050 Part #: 01133-51260 Price: $1.95

Item: BOLT M12x1.25x60 mm ***

QTY:

Ref: 060 Part #: 01133-51235 Price: $1.63

Item: BOLT M12x1.25x35 mm ***

QTY:

Ref: 070 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 080 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 090 Part #: 15512-96010 Price: $7.59

Item: PLUG, DRAIN

QTY:

Ref: 100 Part #: 04717-02150 Price: $2.37

Item: WASHER, SEAL w/RUBBER

QTY:

Ref: 110160170 Part #: 34076-60470 Price: $1.72

Item: PLUG

QTY:

Ref: 120 Part #: TA040-60450 Price: $417.25

Item: HOLDER, BEARING ***

QTY:

Ref: 140 Part #: 01133-51040 Price: $1.90

Item: BOLT M10x1.25x40 mm ***

QTY:

Ref: 150 Part #: 01133-51060 Price: $2.13

Item: BOLT M10x1.25x60 mm ***

QTY:

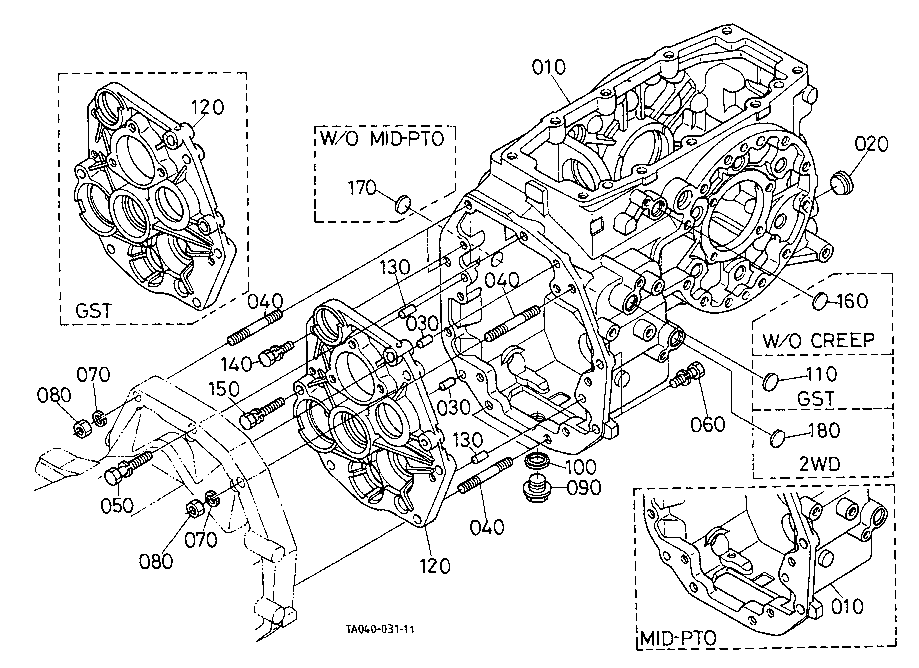

KUBOTA L3300DT GST PARTS TRANSMISSION T05200 TRANSMISSION CASE
