Ref	Part #	Item	Price
010	TC420-12010	ASSY GEAR, BEVEL	$635.88
020	34070-12200	BEARING, TAPER-ROLLER	$42.98
030	TC432-12060	COLLAR(CN,5.8)	$9.97
030	TC432-12070	COLLAR(CN,5.9)	$9.97
030	TC432-12080	COLLAR(CN,6.0)	$9.97
030	TC432-12090	COLLAR(CN,6.1)	$9.97
030	TC432-12100	COLLAR(CN,6.2)	$9.97
040	TC402-12130	COLLAR	$13.83
040	TC402-12140	COLLAR	$13.83
040	TC402-12150	COLLAR	$13.83
040	TC402-12160	COLLAR	$12.12
040	TC402-12170	COLLAR	$12.12
050	TC402-56710	NUT	$22.50
060	TC402-12220	SEAL,OIL	$17.61
070	04611-00580	CIR-CLIP, INTERNAL	$3.20
080	TC403-12252	CASE,DIFF.	$439.08
082	TC403-12260	CASE,DIFF COVER	$439.08
084	05012-01020	PIN, STRAIGHT	$1.00
086	01133-51075	BOLT M10x1.25x75 mm ***	$2.27
090	08101-06212	BEARING, BALL(RADIAL)	$45.18
100	TC403-43330	SHAFT(DIFF.PINION)	$33.36
110	05012-00628	PIN, STRAIGHT	$0.99
120	31353-43343	PINION, DIFFERENTAL	$86.83
130	67121-56670	WASHER, DIFF. PINION	$3.20
140	31353-43353	GEAR, DIFF SIDE	$97.18
150	31353-43360	SHIM	$5.02
150	31353-43370	SHIM	$5.02
150	TC402-15160	SHIM	$9.97
150	TC402-15170	SHIM	$9.97
150	TC402-15180	SHIM	$9.97
160	TC402-12302	SHIM,110 1.6	$16.62
160	TC402-12322	SHIM,110 2.0	$16.62
160	TC402-12332	SHIM,110 2.2	$16.62
160	TC402-12342	SHIM,110 2.4	$18.38
160	TC402-12352	SHIM,110 1.8	$13.83
170	34070-12280	CIR-CLIP, EXTERNAL	$5.41

Ref: 010 Part #: TC420-12010 Price: $635.88

Item: ASSY GEAR, BEVEL

QTY:

Ref: 020 Part #: 34070-12200 Price: $42.98

Item: BEARING, TAPER-ROLLER

QTY:

Ref: 030 Part #: TC432-12060 Price: $9.97

Item: COLLAR(CN,5.8)

QTY:

Ref: 030 Part #: TC432-12070 Price: $9.97

Item: COLLAR(CN,5.9)

QTY:

Ref: 030 Part #: TC432-12080 Price: $9.97

Item: COLLAR(CN,6.0)

QTY:

Ref: 030 Part #: TC432-12090 Price: $9.97

Item: COLLAR(CN,6.1)

QTY:

Ref: 030 Part #: TC432-12100 Price: $9.97

Item: COLLAR(CN,6.2)

QTY:

Ref: 040 Part #: TC402-12130 Price: $13.83

Item: COLLAR

QTY:

Ref: 040 Part #: TC402-12140 Price: $13.83

Item: COLLAR

QTY:

Ref: 040 Part #: TC402-12150 Price: $13.83

Item: COLLAR

QTY:

Ref: 040 Part #: TC402-12160 Price: $12.12

Item: COLLAR

QTY:

Ref: 040 Part #: TC402-12170 Price: $12.12

Item: COLLAR

QTY:

Ref: 050 Part #: TC402-56710 Price: $22.50

Item: NUT

QTY:

Ref: 060 Part #: TC402-12220 Price: $17.61

Item: SEAL,OIL

QTY:

Ref: 070 Part #: 04611-00580 Price: $3.20

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 080 Part #: TC403-12252 Price: $439.08

Item: CASE,DIFF.

QTY:

Ref: 082 Part #: TC403-12260 Price: $439.08

Item: CASE,DIFF COVER

QTY:

Ref: 084 Part #: 05012-01020 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 086 Part #: 01133-51075 Price: $2.27

Item: BOLT M10x1.25x75 mm ***

QTY:

Ref: 090 Part #: 08101-06212 Price: $45.18

Item: BEARING, BALL(RADIAL)

QTY:

Ref: 100 Part #: TC403-43330 Price: $33.36

Item: SHAFT(DIFF.PINION)

QTY:

Ref: 110 Part #: 05012-00628 Price: $0.99

Item: PIN, STRAIGHT

QTY:

Ref: 120 Part #: 31353-43343 Price: $86.83

Item: PINION, DIFFERENTAL

QTY:

Ref: 130 Part #: 67121-56670 Price: $3.20

Item: WASHER, DIFF. PINION

QTY:

Ref: 140 Part #: 31353-43353 Price: $97.18

Item: GEAR, DIFF SIDE

QTY:

Ref: 150 Part #: 31353-43360 Price: $5.02

Item: SHIM

QTY:

Ref: 150 Part #: 31353-43370 Price: $5.02

Item: SHIM

QTY:

Ref: 150 Part #: TC402-15160 Price: $9.97

Item: SHIM

QTY:

Ref: 150 Part #: TC402-15170 Price: $9.97

Item: SHIM

QTY:

Ref: 150 Part #: TC402-15180 Price: $9.97

Item: SHIM

QTY:

Ref: 160 Part #: TC402-12302 Price: $16.62

Item: SHIM,110 1.6

QTY:

Ref: 160 Part #: TC402-12322 Price: $16.62

Item: SHIM,110 2.0

QTY:

Ref: 160 Part #: TC402-12332 Price: $16.62

Item: SHIM,110 2.2

QTY:

Ref: 160 Part #: TC402-12342 Price: $18.38

Item: SHIM,110 2.4

QTY:

Ref: 160 Part #: TC402-12352 Price: $13.83

Item: SHIM,110 1.8

QTY:

Ref: 170 Part #: 34070-12280 Price: $5.41

Item: CIR-CLIP, EXTERNAL

QTY:

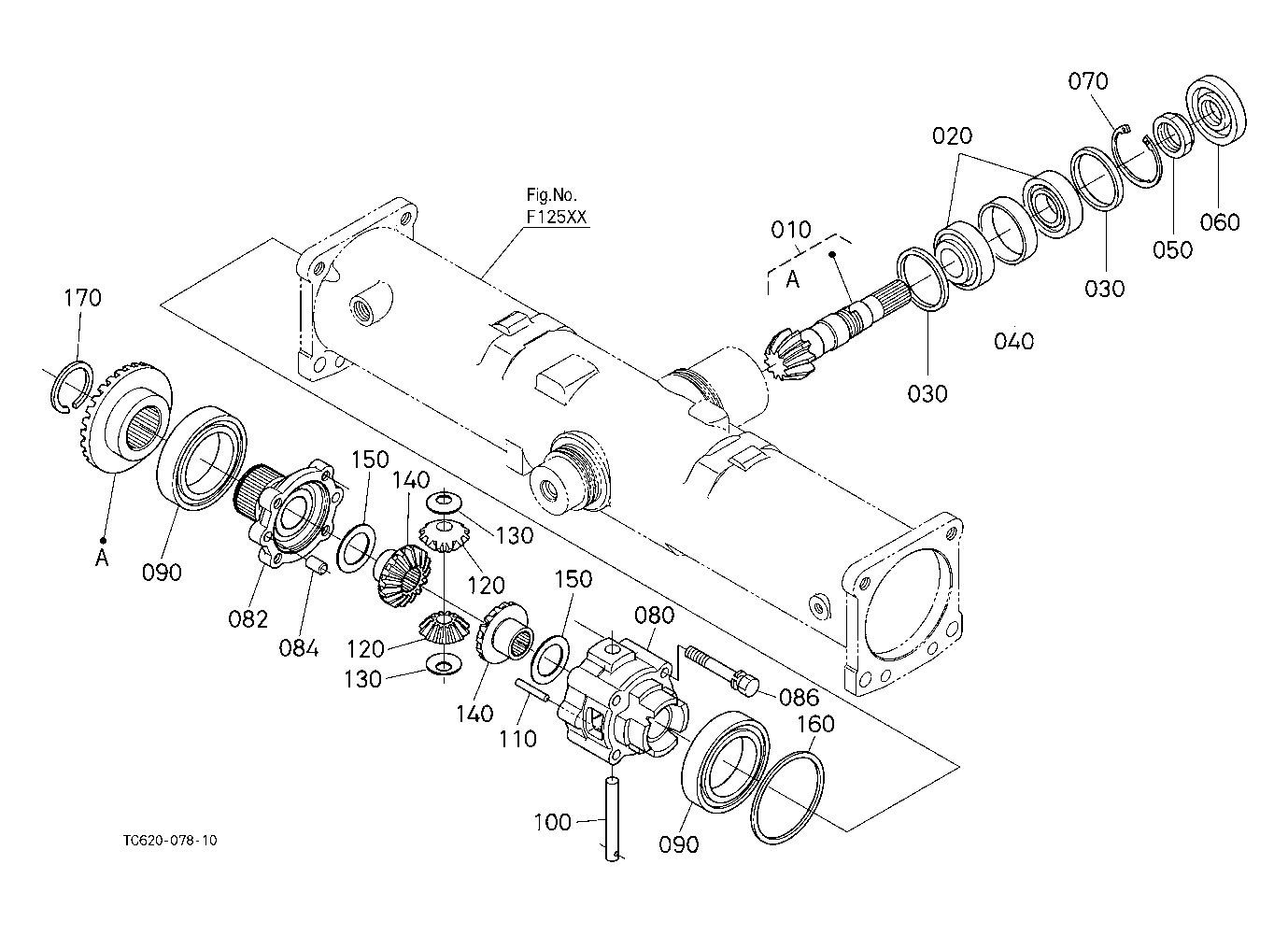

KUBOTA L3301DT PARTS FRONT AXLE CHASSIS F13500 FRONT DIFFERENTIAL
