Ref	Part #	Item	Price
010	TC402-12720	SHAFT,BEVEL GEAR	$144.25
020	TC402-13020	GEARCASE,LH FRONT	$873.74
030	06331-45010	PLUG	$2.23
040	04717-01000	WASHER, SEAL W/RUBBER	$1.49
050	TC422-13152	SEAL,OIL	$168.29
060	08101-06012	BEARING,BALL(RADIAL60/95) ***	$41.83
070	04611-00800	CIR-CLIP, INTERNAL	$8.83
080	08101-06010	BEARING,BALL(RADIAL)	$24.99
090	TC402-12020	SHIM (1.0,DT)	$18.38
090	TC402-12030	SHIM (1.2,DT)	$12.12
090	TC402-12040	SHIM (1.4,DT)	$16.62
090	TC402-12050	SHIM (1.6,DT)	$20.69
090	TC402-12010	SHIM (0.8,DT)	$16.62
100	04612-00500	CIR-CLIP, EXTERNAL	$1.94
110	TC402-13100	PLUG	$28.39
120	TD030-13200	GEAR BEVEL	$128.85
130	08101-06207	BEARING,BALL RADIAL 35/72 ***	$13.69
140	TC402-12650	SHIM	$9.97
140	TC402-12610	SHIM	$9.97
140	TC402-12620	SHIM	$9.97
140	TC402-12630	SHIM	$9.97
140	TC402-12640	SHIM	$9.97
140	TC402-57160	SHIM	$7.74
140	TC402-57170	SHIM	$7.74
150	04611-00720	CIR-CLIP, INTERNAL	$6.61

Ref: 010 Part #: TC402-12720 Price: $144.25

Item: SHAFT,BEVEL GEAR

QTY:

Ref: 020 Part #: TC402-13020 Price: $873.74

Item: GEARCASE,LH FRONT

QTY:

Ref: 030 Part #: 06331-45010 Price: $2.23

Item: PLUG

QTY:

Ref: 040 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 050 Part #: TC422-13152 Price: $168.29

Item: SEAL,OIL

QTY:

Ref: 060 Part #: 08101-06012 Price: $41.83

Item: BEARING,BALL(RADIAL60/95) ***

QTY:

Ref: 070 Part #: 04611-00800 Price: $8.83

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 080 Part #: 08101-06010 Price: $24.99

Item: BEARING,BALL(RADIAL)

QTY:

Ref: 090 Part #: TC402-12020 Price: $18.38

Item: SHIM (1.0,DT)

QTY:

Ref: 090 Part #: TC402-12030 Price: $12.12

Item: SHIM (1.2,DT)

QTY:

Ref: 090 Part #: TC402-12040 Price: $16.62

Item: SHIM (1.4,DT)

QTY:

Ref: 090 Part #: TC402-12050 Price: $20.69

Item: SHIM (1.6,DT)

QTY:

Ref: 090 Part #: TC402-12010 Price: $16.62

Item: SHIM (0.8,DT)

QTY:

Ref: 100 Part #: 04612-00500 Price: $1.94

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 110 Part #: TC402-13100 Price: $28.39

Item: PLUG

QTY:

Ref: 120 Part #: TD030-13200 Price: $128.85

Item: GEAR BEVEL

QTY:

Ref: 130 Part #: 08101-06207 Price: $13.69

Item: BEARING,BALL RADIAL 35/72 ***

QTY:

Ref: 140 Part #: TC402-12650 Price: $9.97

Item: SHIM

QTY:

Ref: 140 Part #: TC402-12610 Price: $9.97

Item: SHIM

QTY:

Ref: 140 Part #: TC402-12620 Price: $9.97

Item: SHIM

QTY:

Ref: 140 Part #: TC402-12630 Price: $9.97

Item: SHIM

QTY:

Ref: 140 Part #: TC402-12640 Price: $9.97

Item: SHIM

QTY:

Ref: 140 Part #: TC402-57160 Price: $7.74

Item: SHIM

QTY:

Ref: 140 Part #: TC402-57170 Price: $7.74

Item: SHIM

QTY:

Ref: 150 Part #: 04611-00720 Price: $6.61

Item: CIR-CLIP, INTERNAL

QTY:

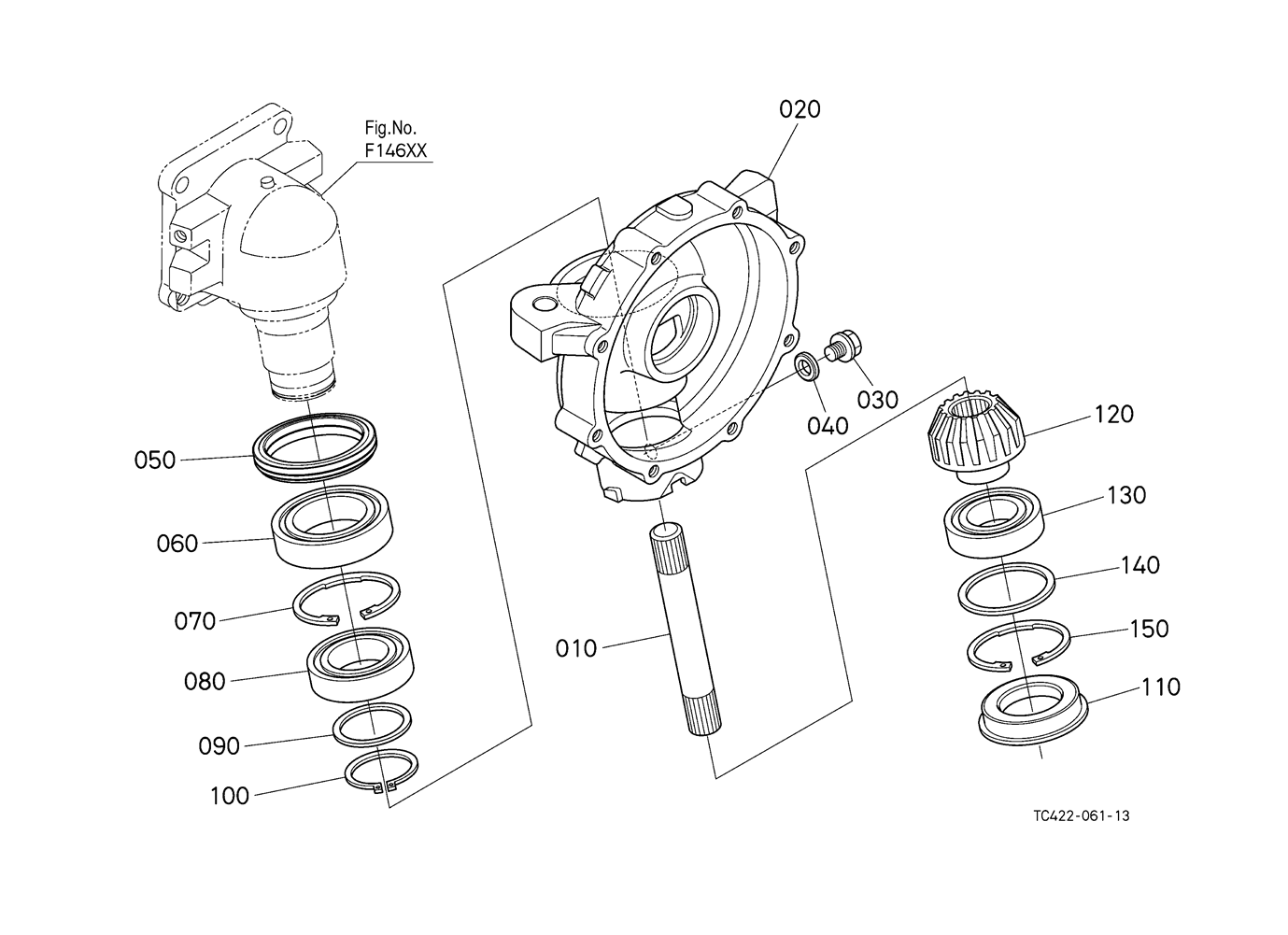

KUBOTA L3301H PARTS FRONT AXLE CHASSIS F14100 FRONT AXLE CASE LH
