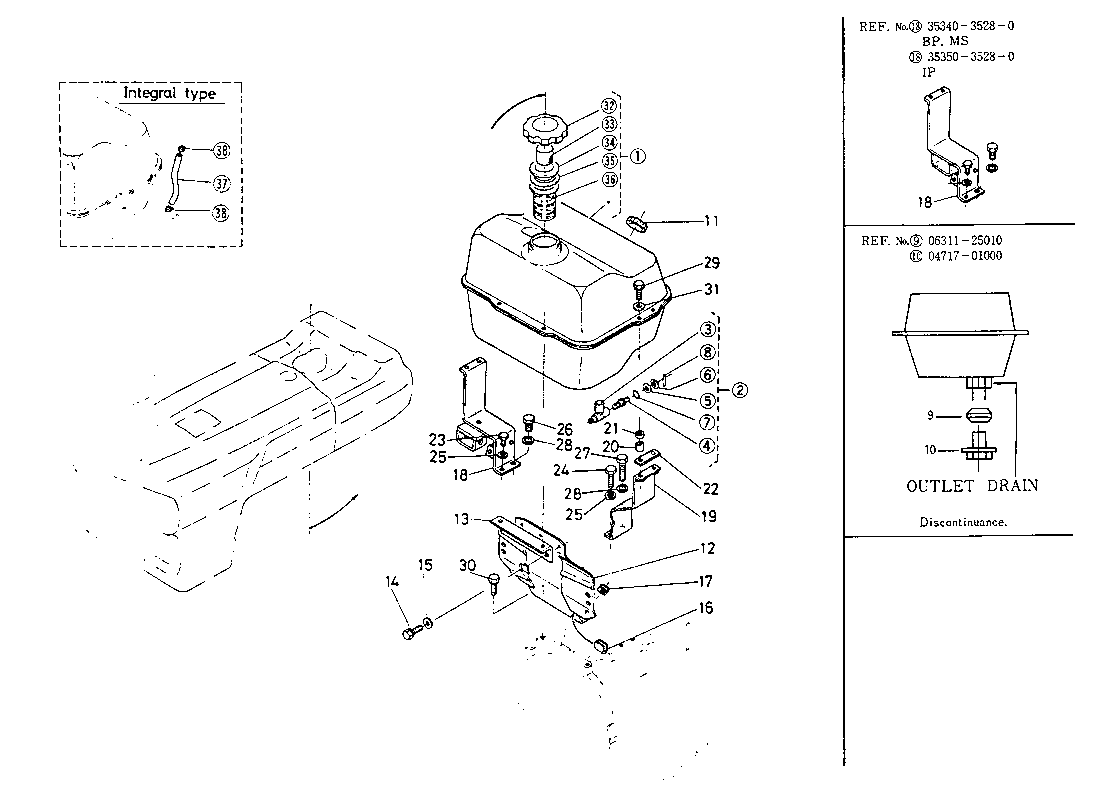

KUBOTA L345DT PARTS FUEL SYSTEM 490000 FUEL TANK

    KUBOTA >kubota-l345dt-parts-fuel-system-490000-fuel-tank
    Ref: 001  Part #: 37300-35100  Price: $215.64

    Item: FUEL TANK ASSY.** *

    QTY:
    Ref: 001  Part #: 35350-35100  Price: $261.37

    Item: TANK, ASSY FUEL **

    QTY:
    Ref: 002  Part #: 31220-35400  Price: $108.90

    Item: ASSY COCK, FUEL

    QTY:
    Ref: 005  Part #: 31220-35400  Price: $108.90

    Item: ASSY COCK, FUEL

    QTY:
    Ref: 006  Part #: 04611-00140  Price: $0.99

    Item: CIR-CLIP, INTERNAL

    QTY:
    Ref: 007  Part #: 04811-00080  Price: $0.99

    Item: O-RING***

    QTY:
    Ref: 008  Part #: 05411-00330  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 010  Part #: 04717-01000  Price: $1.49

    Item: WASHER, SEAL W/RUBBER

    QTY:
    Ref: 011  Part #: 37300-35550  Price: $12.79

    Item: BUSHING ***

    QTY:
    Ref: 012  Part #: 37300-35270  Price: $53.42

    Item: SUPPORT, FUEL TANK

    QTY:
    Ref: 013  Part #: 37300-35260  Price: $7.59

    Item: BRACKET ***

    QTY:
    Ref: 014  Part #: 01133-51020  Price: $1.44

    Item: BOLT M10x1.25x20 mm ***

    QTY:
    Ref: 015  Part #: 04015-50100  Price: $0.99

    Item: WASHER, PLAIN *** ***

    QTY:
    Ref: 016  Part #: 37150-13920  Price: $1.72

    Item: CUSHION

    QTY:
    Ref: 017  Part #: 32150-29180  Price: $0.99

    Item: CAP, RUBBER

    QTY:
    Ref: 018  Part #: 35340-35280  Price: $84.09

    Item: STAY, FUEL TANK **

    QTY:
    Ref: 018  Part #: 35348-35280  Price: $75.07

    Item: STAY, FUEL TANK RH

    QTY:
    Ref: 018  Part #: 35350-35280  Price: $27.72

    Item: STAY,FUEL TANK RH ***

    QTY:
    Ref: 018  Part #: 35350-35282  Price: $92.74

    Item: STAY, FUEL TANK RH ***

    QTY:
    Ref: 019  Part #: 35340-35290  Price: $46.35

    Item: STAY, FUEL TANK

    QTY:
    Ref: 019  Part #: 35350-35290  Price: $20.78

    Item: STAY**

    QTY:
    Ref: 020  Part #: 37300-35140  Price: $4.65

    Item: SPACER

    QTY:
    Ref: 021  Part #: 37300-35130  Price: $5.26

    Item: CUSHION ***

    QTY:
    Ref: 022  Part #: 37300-35120  Price: $2.34

    Item: CUSHION

    QTY:
    Ref: 023  Part #: 01153-50816  Price: $0.99

    Item: BOLT M8x1.25x16 mm ***

    QTY:
    Ref: 024  Part #: 01153-50832  Price: $0.99

    Item: BOLT

    QTY:
    Ref: 024  Part #: 01153-50855  Price: $1.82

    Item: BOLT M8x1.25x55 mm ***

    QTY:
    Ref: 025  Part #: 04512-50080  Price: $0.99

    Item: WASHER, SPRING ***

    QTY:
    Ref: 026  Part #: 01173-51225  Price: $1.31

    Item: BOLT M12x1.25x25 mm

    QTY:
    Ref: 027  Part #: 01173-51240  Price: $1.82

    Item: BOLT M12x1.25x40 mm ***

    QTY:
    Ref: 027  Part #: 01173-51265  Price: $2.23

    Item: BOLT ***

    QTY:
    Ref: 028  Part #: 04512-50120  Price: $1.70

    Item: WASHER, SPRING LOCK ***

    QTY:
    Ref: 029  Part #: 01120-50830  Price: $0.99

    Item: BOLT M8x1.25x30 mm

    QTY:
    Ref: 030  Part #: 01123-50818  Price: $0.99

    Item: BOLT M8x1.25x18 mm ***

    QTY:
    Ref: 031  Part #: 04015-50080  Price: $0.99

    Item: WASHER, PLAIN ***

    QTY:
    Ref: 033  Part #: 34150-35240  Price: $2.90

    Item: SPONGE

    QTY:
    Ref: 034  Part #: 34150-35230  Price: $5.41

    Item: GASKET NA

    QTY:
    Ref: 035  Part #: 34150-35180  Price: $8.30

    Item: GASKET

    QTY:
    Ref: 036  Part #: 13251-41060  Price: $14.21

    Item: STRAINER, FUEL FILTR

    QTY:
    Ref: 037  Part #: 07935-05741  Price: $3.34

    Item: TUBE, FUEL GAUGE

    QTY:
    Ref: 038  Part #: 10013-41770  Price: $0.99

    Item: CLIP, PIPE

    QTY:
    Ref: 039  Part #: 38240-35200  Price: $35.71

    Item: CAP, FUEL TANK ASSY
