Ref	Part #	Item	Price
010	35080-14110	HOUSING, CLUTCH	$2,603.81
020	35080-14060	COVER, CLUTCH ***	$238.75
030	35080-14070	O-RING	$13.18
040	08111-06909	BEARING BALL RADIAL45/68 ***	$88.62
050	35080-14080	CIR-CLIP, INTERNAL ***	$9.90
060	09500-45609	SEAL	$9.42
070	31351-27392	BOLT, REAMER	$2.01
080	04811-00110	O-RING***	$0.99
080	04817-00110	O-RING	$1.65
090	32425-14150	GASKET	$15.25
100	15512-96010	PLUG, DRAIN	$7.59
100	32420-67020	PLUG,MAGNET ***	$29.82
110	04717-02150	WASHER, SEAL w/RUBBER	$2.37
120	H3270-21410	PLUG	$26.03
130	04816-50300	O-RING *	$2.08
140	38240-14210	OIL GAUGE	$14.86
150	05012-01022	PIN, KNOCK	$1.00
160	32210-27580	PLUG, BLIND	$1.39
170	38430-14130	STUD	$7.22
180	37300-14190	NUT	$2.60
190	01136-51065	BOLT	$4.42
200	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
210	01136-51040	BOLT	$1.65
220	31351-14210	COVER ***	$46.56
230	01123-50814	BOLT M8x1.25x14 mm ***	$0.99
240	01754-50816	BOLT M8x1.25x16 mm ***	$2.86
250, 320	04717-00800	WASHER, w/RUBBER	$1.49
260	31351-14222	GASKET	$25.73
270	13816-67580	CLAMP, CORD *	$1.54
280	35080-23370	PIN, JOINT	$7.93
290	04816-00200	O-RING	$1.65
300	35080-23350	CLIP	$0.99
310	01754-50812	BOLT M8x1.25x12 mm ***	$2.59
330	06311-35020	PLUG	$2.72
340	04717-01320	WASHER, SEAL	$1.65

Ref: 010 Part #: 35080-14110 Price: $2,603.81

Item: HOUSING, CLUTCH

QTY:

Ref: 020 Part #: 35080-14060 Price: $238.75

Item: COVER, CLUTCH ***

QTY:

Ref: 030 Part #: 35080-14070 Price: $13.18

Item: O-RING

QTY:

Ref: 040 Part #: 08111-06909 Price: $88.62

Item: BEARING BALL RADIAL45/68 ***

QTY:

Ref: 050 Part #: 35080-14080 Price: $9.90

Item: CIR-CLIP, INTERNAL ***

QTY:

Ref: 060 Part #: 09500-45609 Price: $9.42

Item: SEAL

QTY:

Ref: 070 Part #: 31351-27392 Price: $2.01

Item: BOLT, REAMER

QTY:

Ref: 080 Part #: 04811-00110 Price: $0.99

Item: O-RING***

QTY:

Ref: 080 Part #: 04817-00110 Price: $1.65

Item: O-RING

QTY:

Ref: 090 Part #: 32425-14150 Price: $15.25

Item: GASKET

QTY:

Ref: 100 Part #: 15512-96010 Price: $7.59

Item: PLUG, DRAIN

QTY:

Ref: 100 Part #: 32420-67020 Price: $29.82

Item: PLUG,MAGNET ***

QTY:

Ref: 110 Part #: 04717-02150 Price: $2.37

Item: WASHER, SEAL w/RUBBER

QTY:

Ref: 120 Part #: H3270-21410 Price: $26.03

Item: PLUG

QTY:

Ref: 130 Part #: 04816-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 140 Part #: 38240-14210 Price: $14.86

Item: OIL GAUGE

QTY:

Ref: 150 Part #: 05012-01022 Price: $1.00

Item: PIN, KNOCK

QTY:

Ref: 160 Part #: 32210-27580 Price: $1.39

Item: PLUG, BLIND

QTY:

Ref: 170 Part #: 38430-14130 Price: $7.22

Item: STUD

QTY:

Ref: 180 Part #: 37300-14190 Price: $2.60

Item: NUT

QTY:

Ref: 190 Part #: 01136-51065 Price: $4.42

Item: BOLT

QTY:

Ref: 200 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 210 Part #: 01136-51040 Price: $1.65

Item: BOLT

QTY:

Ref: 220 Part #: 31351-14210 Price: $46.56

Item: COVER ***

QTY:

Ref: 230 Part #: 01123-50814 Price: $0.99

Item: BOLT M8x1.25x14 mm ***

QTY:

Ref: 240 Part #: 01754-50816 Price: $2.86

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 250320 Part #: 04717-00800 Price: $1.49

Item: WASHER, w/RUBBER

QTY:

Ref: 260 Part #: 31351-14222 Price: $25.73

Item: GASKET

QTY:

Ref: 270 Part #: 13816-67580 Price: $1.54

Item: CLAMP, CORD *

QTY:

Ref: 280 Part #: 35080-23370 Price: $7.93

Item: PIN, JOINT

QTY:

Ref: 290 Part #: 04816-00200 Price: $1.65

Item: O-RING

QTY:

Ref: 300 Part #: 35080-23350 Price: $0.99

Item: CLIP

QTY:

Ref: 310 Part #: 01754-50812 Price: $2.59

Item: BOLT M8x1.25x12 mm ***

QTY:

Ref: 330 Part #: 06311-35020 Price: $2.72

Item: PLUG

QTY:

Ref: 340 Part #: 04717-01320 Price: $1.65

Item: WASHER, SEAL

QTY:

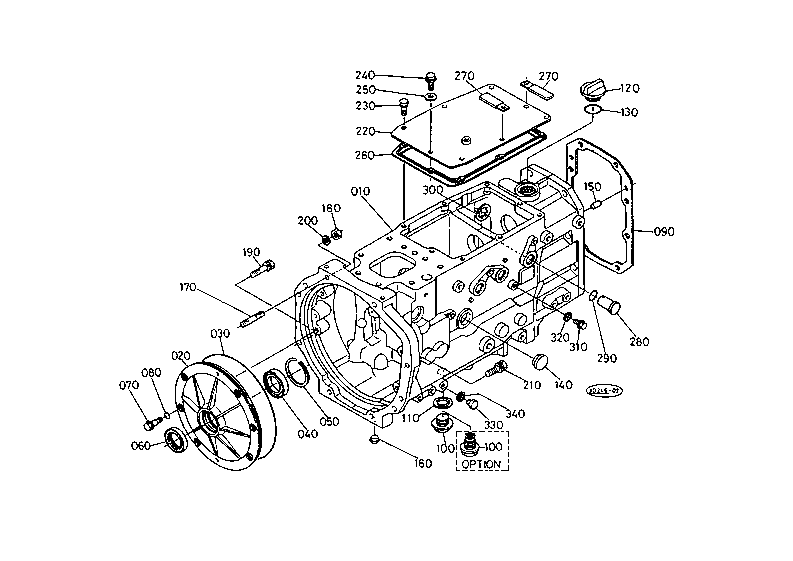

KUBOTA L3650DT WET PARTS CLUTCH T04702 CLUTCH HOUSING [WITH WET CLUTCH]
