Ref	Part #	Item	Price
010	31321-37310	PISTON, HYDRAULIC	$95.83
020	04811-00650	O-RING	$3.58
030	34220-37380	RING, BACKUP	$29.82
040	31351-37320	ROD, HYD. PISTON 3PT	$42.55
050	31351-37330	GUIDE, O/P ROD	$3.34
060	05411-00656	PIN, SPRING	$1.49
070	TA150-37420	ASSY SHAFT	$227.91
080	31321-37445	ARM, HYDRAULIC	$168.87
090	34150-37480	COLLAR (LIFT ARM)	$8.30
100	34150-37490	COLLAR (LIFT ARM)	$7.59
110	04817-50450	O RING	$4.42
120	04817-06400	O-RING	$6.34
130	TA040-34610	ARM, LIFT	$171.38
140	04612-00400	CIR-CLIP, EXTERNAL 40mm	$1.49
150	30442-37690	PIN, LIFT LEVER	$19.88
160	04512-70160	WASHER,SPRING	$0.99
170	02174-50160	NUT,HEX M16x2 4T JIS ***	$1.49
180	34150-37640	PIN, SET	$5.72
190	04011-50180	WASHER, FLAT 18MM (19MM IDX34MM OD) ***	$0.99
200	TA150-37720	LINK 2, CONTROL	$12.21
210	01754-50812	BOLT M8x1.25x12 mm ***	$2.59

Ref: 010 Part #: 31321-37310 Price: $95.83

Item: PISTON, HYDRAULIC

QTY:

Ref: 020 Part #: 04811-00650 Price: $3.58

Item: O-RING

QTY:

Ref: 030 Part #: 34220-37380 Price: $29.82

Item: RING, BACKUP

QTY:

Ref: 040 Part #: 31351-37320 Price: $42.55

Item: ROD, HYD. PISTON 3PT

QTY:

Ref: 050 Part #: 31351-37330 Price: $3.34

Item: GUIDE, O/P ROD

QTY:

Ref: 060 Part #: 05411-00656 Price: $1.49

Item: PIN, SPRING

QTY:

Ref: 070 Part #: TA150-37420 Price: $227.91

Item: ASSY SHAFT

QTY:

Ref: 080 Part #: 31321-37445 Price: $168.87

Item: ARM, HYDRAULIC

QTY:

Ref: 090 Part #: 34150-37480 Price: $8.30

Item: COLLAR (LIFT ARM)

QTY:

Ref: 100 Part #: 34150-37490 Price: $7.59

Item: COLLAR (LIFT ARM)

QTY:

Ref: 110 Part #: 04817-50450 Price: $4.42

Item: O RING

QTY:

Ref: 120 Part #: 04817-06400 Price: $6.34

Item: O-RING

QTY:

Ref: 130 Part #: TA040-34610 Price: $171.38

Item: ARM, LIFT

QTY:

Ref: 140 Part #: 04612-00400 Price: $1.49

Item: CIR-CLIP, EXTERNAL 40mm

QTY:

Ref: 150 Part #: 30442-37690 Price: $19.88

Item: PIN, LIFT LEVER

QTY:

Ref: 160 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 170 Part #: 02174-50160 Price: $1.49

Item: NUT,HEX M16x2 4T JIS ***

QTY:

Ref: 180 Part #: 34150-37640 Price: $5.72

Item: PIN, SET

QTY:

Ref: 190 Part #: 04011-50180 Price: $0.99

Item: WASHER, FLAT 18MM (19MM IDX34MM OD) ***

QTY:

Ref: 200 Part #: TA150-37720 Price: $12.21

Item: LINK 2, CONTROL

QTY:

Ref: 210 Part #: 01754-50812 Price: $2.59

Item: BOLT M8x1.25x12 mm ***

QTY:

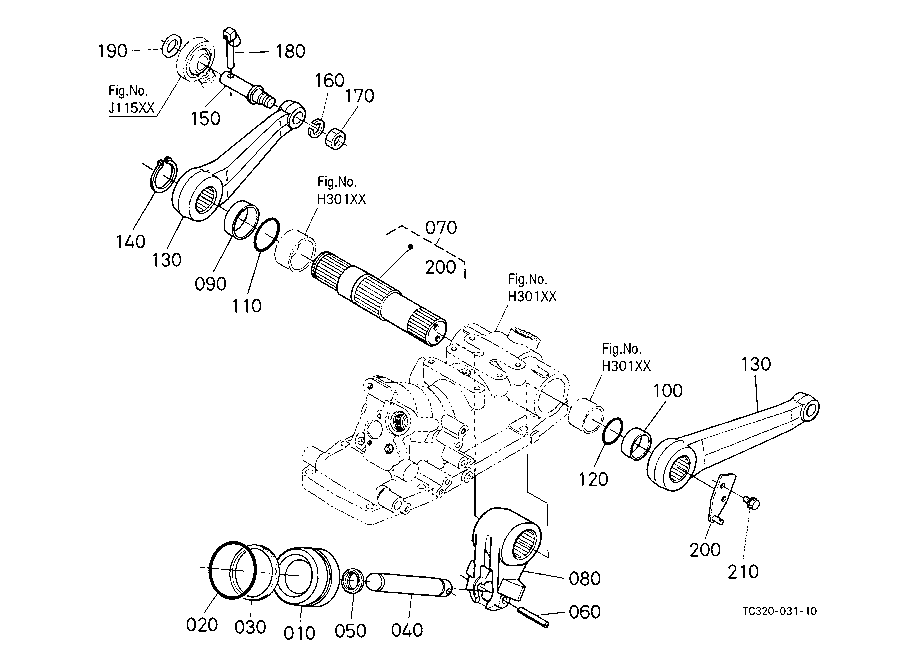

KUBOTA L3700SU PARTS HYDRAULIC SYSTEM H32000 LIFT ARM
