Ref	Part #	Item	Price
010	TC220-26710	GEARSHAFT, DIFF RH	$123.44
010	TC220-26712	GEARSHAFT, DIFF RH	$123.95
020	TC220-26722	GEARSHAFT, DIFF LH	$133.56
020	TC220-26722	GEARSHAFT, DIFF LH	$133.56
030	08101-06309	BEARING, BALL (RAD45/100	$32.66
040	04611-01000	CIR-CLIP, INTERNAL	$13.37
050	TC220-27310	CASE	$798.99
060, 170	31331-26832	GEAR 53	$384.31
070, 180	32400-27110	AXLE,REAR ***	$714.13
080, 190	32400-27140	SPACER	$27.48
090, 200	T0030-27160	WASHER	$2.92
100, 210	08101-06209	BEARING,BALL RADIAL 45/85	$24.91
110, 220	04611-00850	CIR-CLIP, INTERNAL	$8.83
120, 230	70650-11380	NUT	$45.14
130, 240	37150-27560	SEAL, OIL	$40.00
140, 250	08101-06306	BEARING, BALL (RADIAL)	$15.18
150, 260	08101-06307	BEARING, BALL (RADIAL) ***	$27.35
160	TC220-27330	CASE	$798.99
270	05012-01018	PIN, STRAIGHT	$1.00
280	01133-51035	BOLT M10x1.25x35 mm ***	$1.82
290	01517-51035	STUD ***	$1.32
300	04512-70100	WASHER,SPRING	$0.99
310	02176-50100	NUT,HEX M10-1.25mm 6T ***	$0.99
320	31220-14290	PLUG	$1.07

Ref: 010 Part #: TC220-26710 Price: $123.44

Item: GEARSHAFT, DIFF RH

QTY:

Ref: 010 Part #: TC220-26712 Price: $123.95

Item: GEARSHAFT, DIFF RH

QTY:

Ref: 020 Part #: TC220-26722 Price: $133.56

Item: GEARSHAFT, DIFF LH

QTY:

Ref: 020 Part #: TC220-26722 Price: $133.56

Item: GEARSHAFT, DIFF LH

QTY:

Ref: 030 Part #: 08101-06309 Price: $32.66

Item: BEARING, BALL (RAD45/100

QTY:

Ref: 040 Part #: 04611-01000 Price: $13.37

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 050 Part #: TC220-27310 Price: $798.99

Item: CASE

QTY:

Ref: 060170 Part #: 31331-26832 Price: $384.31

Item: GEAR 53

QTY:

Ref: 070180 Part #: 32400-27110 Price: $714.13

Item: AXLE,REAR ***

QTY:

Ref: 080190 Part #: 32400-27140 Price: $27.48

Item: SPACER

QTY:

Ref: 090200 Part #: T0030-27160 Price: $2.92

Item: WASHER

QTY:

Ref: 100210 Part #: 08101-06209 Price: $24.91

Item: BEARING,BALL RADIAL 45/85

QTY:

Ref: 110220 Part #: 04611-00850 Price: $8.83

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 120230 Part #: 70650-11380 Price: $45.14

Item: NUT

QTY:

Ref: 130240 Part #: 37150-27560 Price: $40.00

Item: SEAL, OIL

QTY:

Ref: 140250 Part #: 08101-06306 Price: $15.18

Item: BEARING, BALL (RADIAL)

QTY:

Ref: 150260 Part #: 08101-06307 Price: $27.35

Item: BEARING, BALL (RADIAL) ***

QTY:

Ref: 160 Part #: TC220-27330 Price: $798.99

Item: CASE

QTY:

Ref: 270 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 280 Part #: 01133-51035 Price: $1.82

Item: BOLT M10x1.25x35 mm ***

QTY:

Ref: 290 Part #: 01517-51035 Price: $1.32

Item: STUD ***

QTY:

Ref: 300 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 310 Part #: 02176-50100 Price: $0.99

Item: NUT,HEX M10-1.25mm 6T ***

QTY:

Ref: 320 Part #: 31220-14290 Price: $1.07

Item: PLUG

QTY:

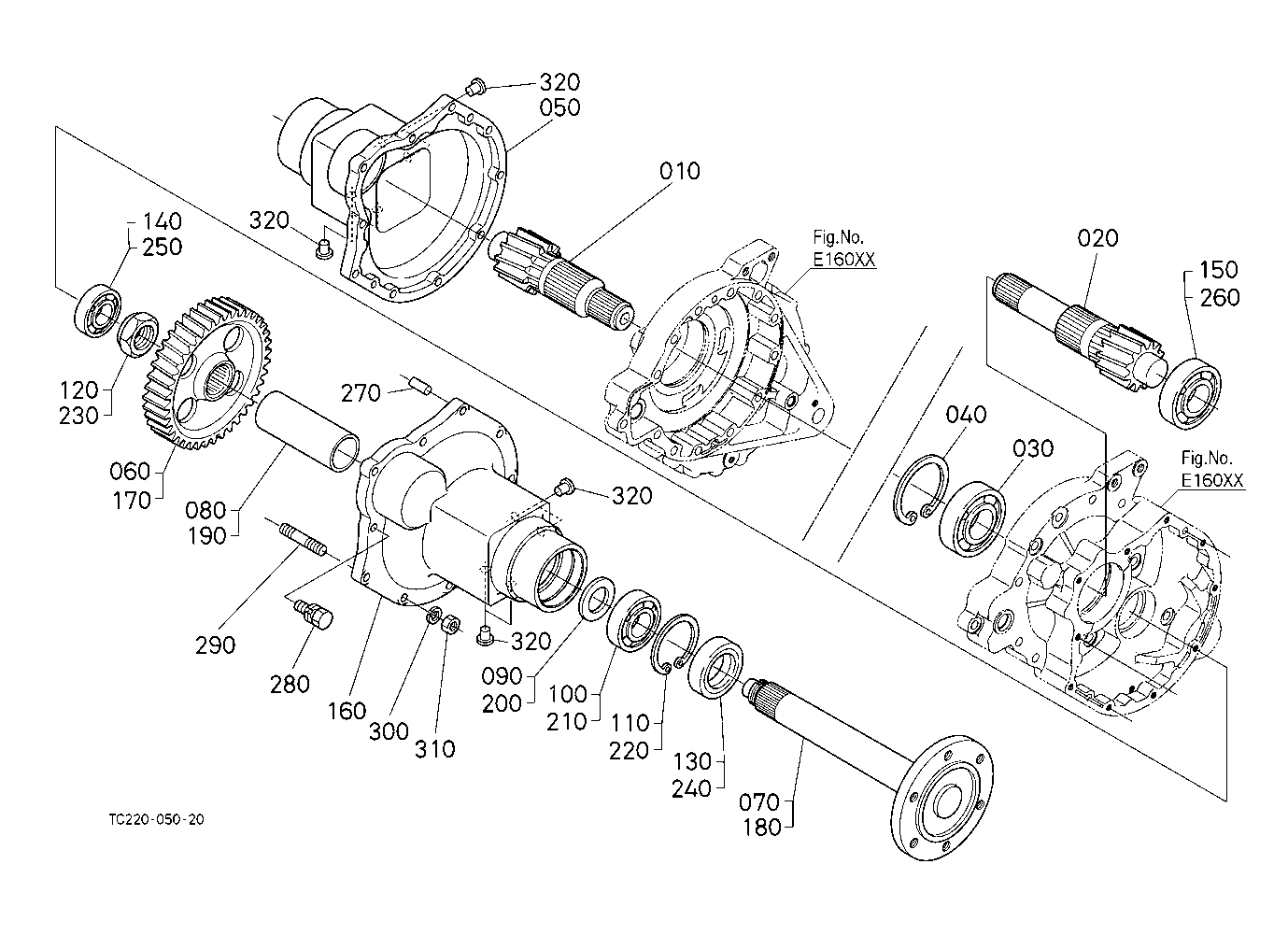

KUBOTA L3700SU PARTS REAR AXLE BRAKE E15000 REAR AXLE
