KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	32530-13010	ASSY SUPPORT, FRONT AXLE ***	$202.47
020, 130	32530-13630	WASHER, THRUST	$18.60
030, 140	08511-04530	BUSHING	$10.29
040, 150	09230-45606	SEAL, OIL	$4.42
050	32580-44540	BOLT	$8.26
060	38440-44750	WASHER, SEAL	$1.49
070	02172-50160	NUT, 149400 ***	$1.49
080	01517-71640	STUD	$2.54
090	02076-50160	NUT,HEX M16x1.5 ***	$1.65
100	01173-51650	BOLT M16x1.5x50 mm	$2.33
110	04512-70160	WASHER,SPRING	$0.99
120	32530-13020	FRT AXLE SUPPRT ASSY	$302.18
160	06312-10010	PLUG ***	$2.72
170	01173-51860	BOLT	$3.52
180	04512-50180	WASHER, SPRING LOCK ***	$0.99

Ref: 010 Part #: 32530-13010 Price: $202.47

Item: ASSY SUPPORT, FRONT AXLE ***

QTY:

Ref: 020130 Part #: 32530-13630 Price: $18.60

Item: WASHER, THRUST

QTY:

Ref: 030140 Part #: 08511-04530 Price: $10.29

Item: BUSHING

QTY:

Ref: 040150 Part #: 09230-45606 Price: $4.42

Item: SEAL, OIL

QTY:

Ref: 050 Part #: 32580-44540 Price: $8.26

Item: BOLT

QTY:

Ref: 060 Part #: 38440-44750 Price: $1.49

Item: WASHER, SEAL

QTY:

Ref: 070 Part #: 02172-50160 Price: $1.49

Item: NUT, 149400 ***

QTY:

Ref: 080 Part #: 01517-71640 Price: $2.54

Item: STUD

QTY:

Ref: 090 Part #: 02076-50160 Price: $1.65

Item: NUT,HEX M16x1.5 ***

QTY:

Ref: 100 Part #: 01173-51650 Price: $2.33

Item: BOLT M16x1.5x50 mm

QTY:

Ref: 110 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 120 Part #: 32530-13020 Price: $302.18

Item: FRT AXLE SUPPRT ASSY

QTY:

Ref: 160 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 170 Part #: 01173-51860 Price: $3.52

Item: BOLT

QTY:

Ref: 180 Part #: 04512-50180 Price: $0.99

Item: WASHER, SPRING LOCK ***

QTY:

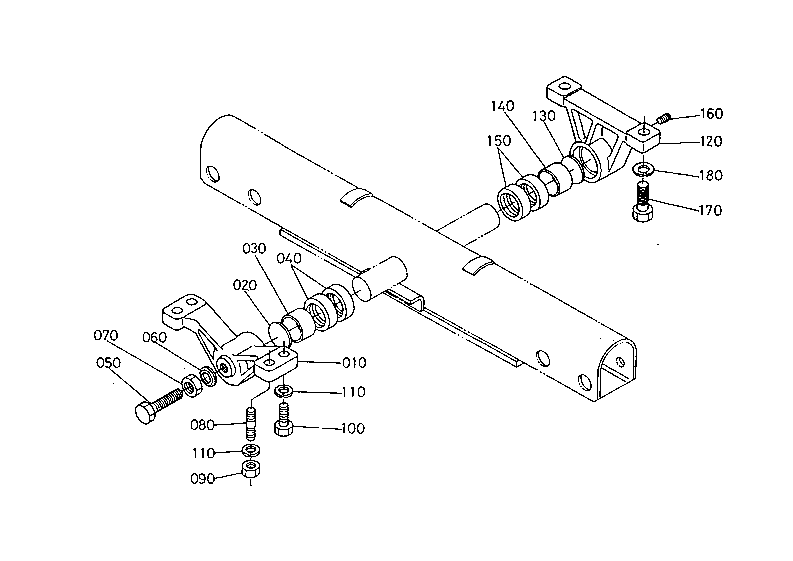

KUBOTA L3750 PARTS FRONT AXLE T00300 FRONT AXLE SUPPORT
