Ref	Part #	Item	Price
010	32530-27110	AXLE,REAR ***	$755.25
020	38430-27170	RETAINER, CARRIER ***	$24.98
030	01133-51025	BOLT M10x1.25x25 mm ***	$1.55
040	38430-27140	COLLAR	$12.08
050	08101-06211	BEARING BALL RADIAL55/100	$35.81
060	08101-06212	BEARING, BALL(RADIAL)	$45.18
070	38430-27150	NUT*	$40.82
080	TC250-48250	SEAL,OIL	$48.59
090	36200-48120	COVER, REAR AXLE	$91.64
100	36200-48132	GASKET	$6.67
110	01133-51038	BOLT	$1.28
120	32530-27310	BOX, AXLE REAR ***	$720.01
130	36200-48160	O RING ***	$15.00
140	32530-27350	STUD	$7.16
150	02176-50120	NUT, HEX M12x1.25 ***	$0.99
160	04512-50120	WASHER, SPRING LOCK ***	$1.70
170	32530-37180	BOLT	$6.97
180	32530-27410	STUD 2 1/2" *	$14.60
190	RD451-19140	SPRING, PLATE *	$7.20
200	33251-49170	NUT, WHEEL FRONT	$8.52

Ref: 010 Part #: 32530-27110 Price: $755.25

Item: AXLE,REAR ***

QTY:

Ref: 020 Part #: 38430-27170 Price: $24.98

Item: RETAINER, CARRIER ***

QTY:

Ref: 030 Part #: 01133-51025 Price: $1.55

Item: BOLT M10x1.25x25 mm ***

QTY:

Ref: 040 Part #: 38430-27140 Price: $12.08

Item: COLLAR

QTY:

Ref: 050 Part #: 08101-06211 Price: $35.81

Item: BEARING BALL RADIAL55/100

QTY:

Ref: 060 Part #: 08101-06212 Price: $45.18

Item: BEARING, BALL(RADIAL)

QTY:

Ref: 070 Part #: 38430-27150 Price: $40.82

Item: NUT*

QTY:

Ref: 080 Part #: TC250-48250 Price: $48.59

Item: SEAL,OIL

QTY:

Ref: 090 Part #: 36200-48120 Price: $91.64

Item: COVER, REAR AXLE

QTY:

Ref: 100 Part #: 36200-48132 Price: $6.67

Item: GASKET

QTY:

Ref: 110 Part #: 01133-51038 Price: $1.28

Item: BOLT

QTY:

Ref: 120 Part #: 32530-27310 Price: $720.01

Item: BOX, AXLE REAR ***

QTY:

Ref: 130 Part #: 36200-48160 Price: $15.00

Item: O RING ***

QTY:

Ref: 140 Part #: 32530-27350 Price: $7.16

Item: STUD

QTY:

Ref: 150 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 160 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 170 Part #: 32530-37180 Price: $6.97

Item: BOLT

QTY:

Ref: 180 Part #: 32530-27410 Price: $14.60

Item: STUD 2 1/2" *

QTY:

Ref: 190 Part #: RD451-19140 Price: $7.20

Item: SPRING, PLATE *

QTY:

Ref: 200 Part #: 33251-49170 Price: $8.52

Item: NUT, WHEEL FRONT

QTY:

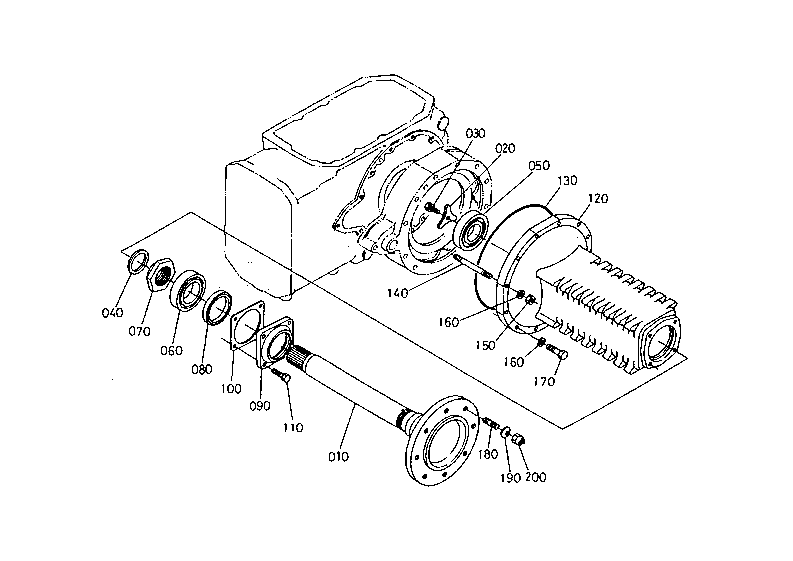

KUBOTA L3750 PARTS REAR AXLE T05100 REAR AXLE
