Ref	Part #	Item	Price
010	TD060-47700	ASSY SEAT	$961.87
020	TD060-47710	CUSHION	$415.14
030	TD060-47720	CUSHION	$312.63
040, 090	TD060-48010	ARMREST	$185.82
050	TD060-48020	BRACKET	$181.89
060, 110	TD060-48060	WASHER, PLAIN	$7.30
065, 115	TD060-48080	WASHER, PLAIN PLASTIC	$10.10
070, 120	TD060-48070	WASHER, PLAIN	$7.53
080, 130	01123-70816	BOLT M8x1.25x16 mm	$0.99
100	TD060-48030	BRACKET	$181.89
140	3A259-85070	HINGE, SEAT RH	$181.26
150	3A259-85080	HINGE, SEAT LH	$50.90
160	TD060-47750	KNOB	$10.34
170	TD060-47790	SCREW	$7.06
180	TD060-48110	COVER, HINGE, RH	$22.76
190	TD060-48120	COVER	$22.76
200	TD060-48150	SCREW	$1.44
210	TD060-48160	SCREW, TAPPING M4-25	$5.12
220	TD060-48130	SKIRT	$191.66
230	04013-70050	WASHER,PLAIN *	$0.99
240	TD060-47950	BRACKET	$18.15
250	TD060-47960	BRACKET	$18.15
260	01123-70820	BOLT M8x1.25x20 mm	$0.99
270	TA140-47780	CUSHION, SEAT	$15.85
280	03014-50820	SCREW, PAN HEAD	$0.99
290	01123-70840	BOLT M8x1.25x40 mm	$1.17
300	01123-70825	BOLT M8x1.25x25 mm	$1.04
310	01123-50855	BOLT M8x1.25x55 mm ***	$1.37

Ref: 010 Part #: TD060-47700 Price: $961.87

Item: ASSY SEAT

QTY:

Ref: 020 Part #: TD060-47710 Price: $415.14

Item: CUSHION

QTY:

Ref: 030 Part #: TD060-47720 Price: $312.63

Item: CUSHION

QTY:

Ref: 040090 Part #: TD060-48010 Price: $185.82

Item: ARMREST

QTY:

Ref: 050 Part #: TD060-48020 Price: $181.89

Item: BRACKET

QTY:

Ref: 060110 Part #: TD060-48060 Price: $7.30

Item: WASHER, PLAIN

QTY:

Ref: 065115 Part #: TD060-48080 Price: $10.10

Item: WASHER, PLAIN PLASTIC

QTY:

Ref: 070120 Part #: TD060-48070 Price: $7.53

Item: WASHER, PLAIN

QTY:

Ref: 080130 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 100 Part #: TD060-48030 Price: $181.89

Item: BRACKET

QTY:

Ref: 140 Part #: 3A259-85070 Price: $181.26

Item: HINGE, SEAT RH

QTY:

Ref: 150 Part #: 3A259-85080 Price: $50.90

Item: HINGE, SEAT LH

QTY:

Ref: 160 Part #: TD060-47750 Price: $10.34

Item: KNOB

QTY:

Ref: 170 Part #: TD060-47790 Price: $7.06

Item: SCREW

QTY:

Ref: 180 Part #: TD060-48110 Price: $22.76

Item: COVER, HINGE, RH

QTY:

Ref: 190 Part #: TD060-48120 Price: $22.76

Item: COVER

QTY:

Ref: 200 Part #: TD060-48150 Price: $1.44

Item: SCREW

QTY:

Ref: 210 Part #: TD060-48160 Price: $5.12

Item: SCREW, TAPPING M4-25

QTY:

Ref: 220 Part #: TD060-48130 Price: $191.66

Item: SKIRT

QTY:

Ref: 230 Part #: 04013-70050 Price: $0.99

Item: WASHER,PLAIN *

QTY:

Ref: 240 Part #: TD060-47950 Price: $18.15

Item: BRACKET

QTY:

Ref: 250 Part #: TD060-47960 Price: $18.15

Item: BRACKET

QTY:

Ref: 260 Part #: 01123-70820 Price: $0.99

Item: BOLT M8x1.25x20 mm

QTY:

Ref: 270 Part #: TA140-47780 Price: $15.85

Item: CUSHION, SEAT

QTY:

Ref: 280 Part #: 03014-50820 Price: $0.99

Item: SCREW, PAN HEAD

QTY:

Ref: 290 Part #: 01123-70840 Price: $1.17

Item: BOLT M8x1.25x40 mm

QTY:

Ref: 300 Part #: 01123-70825 Price: $1.04

Item: BOLT M8x1.25x25 mm

QTY:

Ref: 310 Part #: 01123-50855 Price: $1.37

Item: BOLT M8x1.25x55 mm ***

QTY:

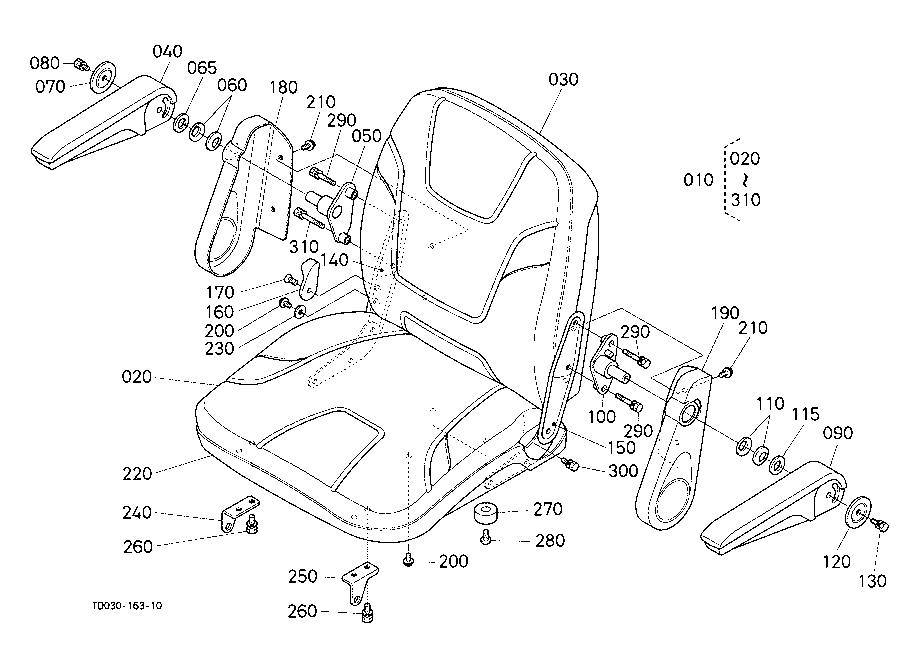

KUBOTA L3830DT GST HST PARTS HOOD BONNET L22001 SEAT [COMPONENT PARTS] [ROPS TYPE]
