Ref	Part #	Item	Price
010	32530-37113	ASSY CYLINDER, HYD O/P ***	$785.13
020	32530-37122	GASKET	$39.98
030	01173-51250	BOLT M12x1.25x50 mm ***	$2.07
040	01173-51295	BOLT M12x1.25x95 mm	$2.98
050	32530-37180	BOLT	$6.97
060	01574-51245	STUD ***	$2.60
070	02176-50120	NUT, HEX M12x1.25 ***	$0.99
080	04512-50120	WASHER, SPRING LOCK ***	$1.70

Ref: 010 Part #: 32530-37113 Price: $785.13

Item: ASSY CYLINDER, HYD O/P ***

QTY:

Ref: 020 Part #: 32530-37122 Price: $39.98

Item: GASKET

QTY:

Ref: 030 Part #: 01173-51250 Price: $2.07

Item: BOLT M12x1.25x50 mm ***

QTY:

Ref: 040 Part #: 01173-51295 Price: $2.98

Item: BOLT M12x1.25x95 mm

QTY:

Ref: 050 Part #: 32530-37180 Price: $6.97

Item: BOLT

QTY:

Ref: 060 Part #: 01574-51245 Price: $2.60

Item: STUD ***

QTY:

Ref: 070 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 080 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

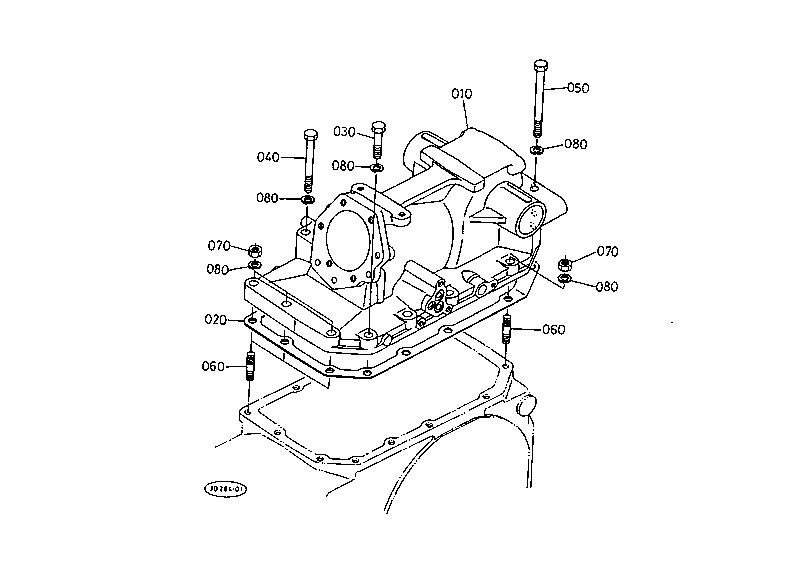

KUBOTA L4150DT N PARTS HYDRAULIC SYSTEM T06200 HYDRAULIC CYLINDER
