Ref	Part #	Item	Price
010	17382-25012	FLYWHEEL, COMP	$1,589.07
020	15602-63820	GEAR, RING	$249.56
030	15321-25163	BOLT, FLYWHEEL	$19.75
040	15601-25170	WASHER	$31.09
050	17381-04600	HOUSING, FLYWHEEL	$632.32
050	17381-04604	COMP HOUSING,FLYWHEE ***	$632.32
060	05012-01018	PIN, STRAIGHT	$1.00
070	17381-91610	STUD	$16.40
080	01073-51032	BOLT	$1.00
090, 180	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
100	01173-51475	BOLT M14x1.5x75 mm	$3.34
110	04512-50140	WASHER, SPRING ***	$0.99
120	01517-51028	STUD ***	$1.00
130	32530-10530	COVER ***	$18.30
130	32530-10532	COVER, WINDOW	$30.86
140	01123-50816	BOLT M8x1.25x16 mm ***	$0.99
140	01133-51425	BOLT *	$3.20
150	77700-12017	STARTER, 12V	$879.86
150	77700-12017	STARTER, 12V	$879.86
160	01133-51030	BOLT M10x1.25x30 mm *	$1.68
170	02176-50100	NUT,HEX M10-1.25mm 6T ***	$0.99
190	31220-14290	PLUG	$1.07

Ref: 010 Part #: 17382-25012 Price: $1,589.07

Item: FLYWHEEL, COMP

QTY:

Ref: 020 Part #: 15602-63820 Price: $249.56

Item: GEAR, RING

QTY:

Ref: 030 Part #: 15321-25163 Price: $19.75

Item: BOLT, FLYWHEEL

QTY:

Ref: 040 Part #: 15601-25170 Price: $31.09

Item: WASHER

QTY:

Ref: 050 Part #: 17381-04600 Price: $632.32

Item: HOUSING, FLYWHEEL

QTY:

Ref: 050 Part #: 17381-04604 Price: $632.32

Item: COMP HOUSING,FLYWHEE ***

QTY:

Ref: 060 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 070 Part #: 17381-91610 Price: $16.40

Item: STUD

QTY:

Ref: 080 Part #: 01073-51032 Price: $1.00

Item: BOLT

QTY:

Ref: 090180 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 100 Part #: 01173-51475 Price: $3.34

Item: BOLT M14x1.5x75 mm

QTY:

Ref: 110 Part #: 04512-50140 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 120 Part #: 01517-51028 Price: $1.00

Item: STUD ***

QTY:

Ref: 130 Part #: 32530-10530 Price: $18.30

Item: COVER ***

QTY:

Ref: 130 Part #: 32530-10532 Price: $30.86

Item: COVER, WINDOW

QTY:

Ref: 140 Part #: 01123-50816 Price: $0.99

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 140 Part #: 01133-51425 Price: $3.20

Item: BOLT *

QTY:

Ref: 150 Part #: 77700-12017 Price: $879.86

Item: STARTER, 12V

QTY:

Ref: 150 Part #: 77700-12017 Price: $879.86

Item: STARTER, 12V

QTY:

Ref: 160 Part #: 01133-51030 Price: $1.68

Item: BOLT M10x1.25x30 mm *

QTY:

Ref: 170 Part #: 02176-50100 Price: $0.99

Item: NUT,HEX M10-1.25mm 6T ***

QTY:

Ref: 190 Part #: 31220-14290 Price: $1.07

Item: PLUG

QTY:

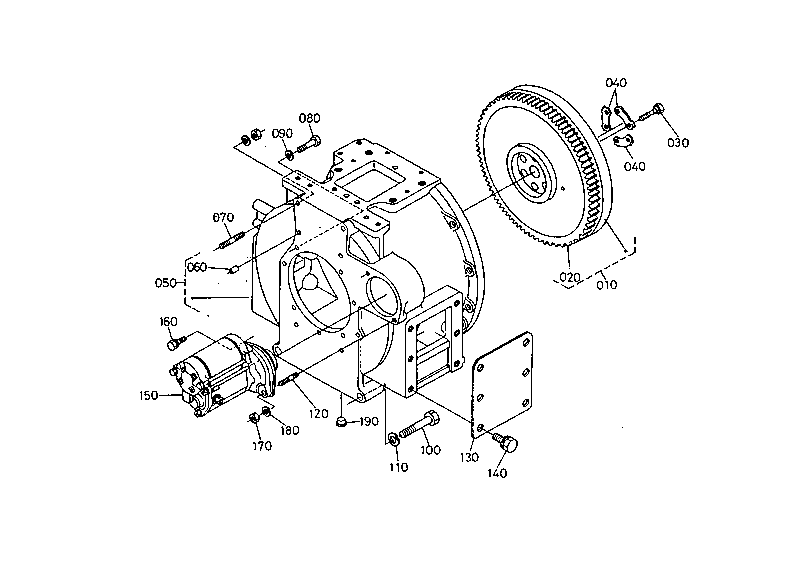

KUBOTA L4150DT PARTS ENGINE E01200 FLYWHEEL AND STARTER
