Ref	Part #	Item	Price
010	31301-34303	ASSY LIGHT COMB RH	$108.56
010	31301-34303	ASSY LIGHT COMB RH	$108.56
020	31301-34320	BODY, RH	$88.85
030, 100	31301-34340	LENS, TAIL LIGHT RED/AMBER	$24.39
040, 110	31391-34350	GASKET, LIGHT	$5.41
050, 120	31391-34360	BULB, HEADLIGHT (12v/23w)	$16.13
060, 130	31301-34370	BULB	$16.13
070, 140	T1150-34380	SCREW	$1.65
080	31301-34313	LIGHT, REAR LH ASSY	$108.56
080	31301-34313	LIGHT, REAR LH ASSY	$108.56
090	31301-34330	BODY, LH	$91.51
150	04512-70060	WASHER,SPRING ***	$0.99
160	03614-50614	SCREW, TAPPING 14 MM	$0.99
170	34040-68960	HOLDER	$46.55
180	02761-50050	NUT,M5 FLANGE ***	$0.99

Ref: 010 Part #: 31301-34303 Price: $108.56

Item: ASSY LIGHT COMB RH

QTY:

Ref: 010 Part #: 31301-34303 Price: $108.56

Item: ASSY LIGHT COMB RH

QTY:

Ref: 020 Part #: 31301-34320 Price: $88.85

Item: BODY, RH

QTY:

Ref: 030100 Part #: 31301-34340 Price: $24.39

Item: LENS, TAIL LIGHT RED/AMBER

QTY:

Ref: 040110 Part #: 31391-34350 Price: $5.41

Item: GASKET, LIGHT

QTY:

Ref: 050120 Part #: 31391-34360 Price: $16.13

Item: BULB, HEADLIGHT (12v/23w)

QTY:

Ref: 060130 Part #: 31301-34370 Price: $16.13

Item: BULB

QTY:

Ref: 070140 Part #: T1150-34380 Price: $1.65

Item: SCREW

QTY:

Ref: 080 Part #: 31301-34313 Price: $108.56

Item: LIGHT, REAR LH ASSY

QTY:

Ref: 080 Part #: 31301-34313 Price: $108.56

Item: LIGHT, REAR LH ASSY

QTY:

Ref: 090 Part #: 31301-34330 Price: $91.51

Item: BODY, LH

QTY:

Ref: 150 Part #: 04512-70060 Price: $0.99

Item: WASHER,SPRING ***

QTY:

Ref: 160 Part #: 03614-50614 Price: $0.99

Item: SCREW, TAPPING 14 MM

QTY:

Ref: 170 Part #: 34040-68960 Price: $46.55

Item: HOLDER

QTY:

Ref: 180 Part #: 02761-50050 Price: $0.99

Item: NUT,M5 FLANGE ***

QTY:

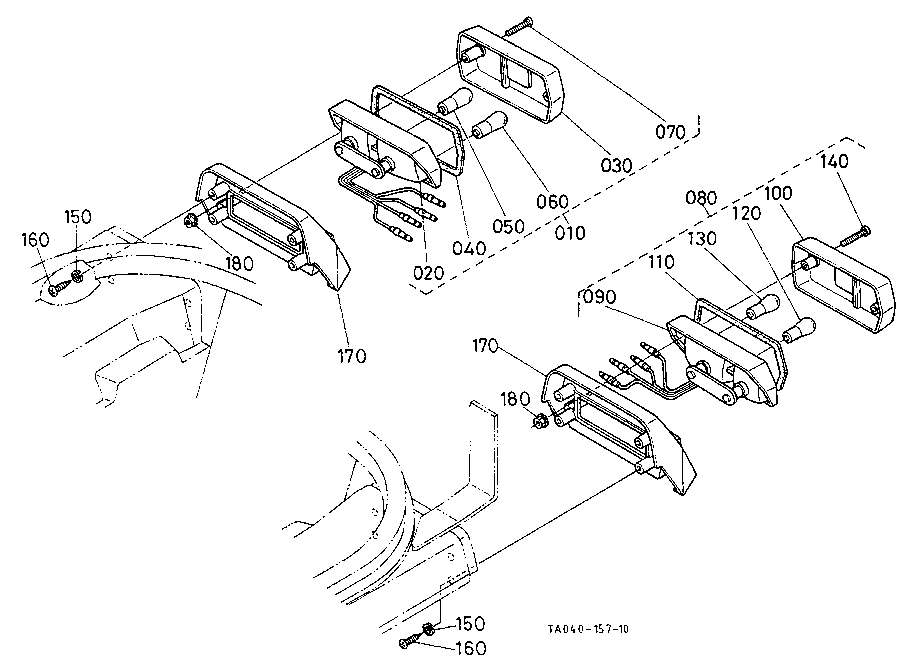

KUBOTA L4200DT GST C PARTS ELECTRICAL SYSTEM T04600 LIGHT
