KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	TA040-12003	CASE, FRONT AXLE	$1,139.68
020	31321-38720	PLUG	$2.17
030	06331-35020	PLUG ***	$3.34
040	04717-02000	WASHER, SEAL W/RUBBER	$2.23
050	06331-45010	PLUG	$2.23
060	04717-01000	WASHER, SEAL W/RUBBER	$1.49
070	TA040-12910	PIPE, BREATHER	$34.30
080	04811-00080	O-RING***	$0.99
080	04816-00080	O-RING	$1.00
090	01123-70814	BOLT M8x1.25x14 mm	$0.99
100	09663-80725	TUBE, FUEL	$10.64
110	09318-88115	BAND, HOSE ***	$1.65
120	TA140-13553	ASSY HOLDER, FRONT ***	$138.65
120	TA140-13553	ASSY HOLDER, FRONT ***	$138.65
130	37410-56180	COLLAR, THRUST	$10.64
140	08511-05020	BUSHING	$10.64
150	04811-00490	O-RING	$3.42
150	04817-00490	O RING	$3.20
160	01173-51030	BOLT M10x1.25x30 mm ***	$1.17
170	02118-50100	NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***	$0.99
180	31351-16250	WASHER, SEAL	$3.83
190	TA040-13570	BOLT, HEX	$6.93
200	04512-70160	WASHER,SPRING	$0.99
210	05012-00818	PIN, STRAIGHT (CYLINDER)	$0.99
220, 300	06613-10010	NIPPLE, GREASE	$2.34
230	06312-10010	PLUG ***	$2.72
240	TA140-13602	ASSY HOLDER, REAR	$259.00
250	TA140-13640	BUSHING	$58.12
260	04811-50700	O-RING	$2.41
270	34070-13620	COLLAR, THRUST	$10.64
280	01176-51245	BOLT M12x1.25x45 mm	$1.95
280	01138-51245	BOLT M12x1.25x45 mm	$2.59
290	04512-70120	WASHER,SPRING	$0.99
310	53581-64150	BAND, CORD L=140mm *	$3.20

Ref: 010 Part #: TA040-12003 Price: $1,139.68

Item: CASE, FRONT AXLE

QTY:

Ref: 020 Part #: 31321-38720 Price: $2.17

Item: PLUG

QTY:

Ref: 030 Part #: 06331-35020 Price: $3.34

Item: PLUG ***

QTY:

Ref: 040 Part #: 04717-02000 Price: $2.23

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 050 Part #: 06331-45010 Price: $2.23

Item: PLUG

QTY:

Ref: 060 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 070 Part #: TA040-12910 Price: $34.30

Item: PIPE, BREATHER

QTY:

Ref: 080 Part #: 04811-00080 Price: $0.99

Item: O-RING***

QTY:

Ref: 080 Part #: 04816-00080 Price: $1.00

Item: O-RING

QTY:

Ref: 090 Part #: 01123-70814 Price: $0.99

Item: BOLT M8x1.25x14 mm

QTY:

Ref: 100 Part #: 09663-80725 Price: $10.64

Item: TUBE, FUEL

QTY:

Ref: 110 Part #: 09318-88115 Price: $1.65

Item: BAND, HOSE ***

QTY:

Ref: 120 Part #: TA140-13553 Price: $138.65

Item: ASSY HOLDER, FRONT ***

QTY:

Ref: 120 Part #: TA140-13553 Price: $138.65

Item: ASSY HOLDER, FRONT ***

QTY:

Ref: 130 Part #: 37410-56180 Price: $10.64

Item: COLLAR, THRUST

QTY:

Ref: 140 Part #: 08511-05020 Price: $10.64

Item: BUSHING

QTY:

Ref: 150 Part #: 04811-00490 Price: $3.42

Item: O-RING

QTY:

Ref: 150 Part #: 04817-00490 Price: $3.20

Item: O RING

QTY:

Ref: 160 Part #: 01173-51030 Price: $1.17

Item: BOLT M10x1.25x30 mm ***

QTY:

Ref: 170 Part #: 02118-50100 Price: $0.99

Item: NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

QTY:

Ref: 180 Part #: 31351-16250 Price: $3.83

Item: WASHER, SEAL

QTY:

Ref: 190 Part #: TA040-13570 Price: $6.93

Item: BOLT, HEX

QTY:

Ref: 200 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 210 Part #: 05012-00818 Price: $0.99

Item: PIN, STRAIGHT (CYLINDER)

QTY:

Ref: 220300 Part #: 06613-10010 Price: $2.34

Item: NIPPLE, GREASE

QTY:

Ref: 230 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 240 Part #: TA140-13602 Price: $259.00

Item: ASSY HOLDER, REAR

QTY:

Ref: 250 Part #: TA140-13640 Price: $58.12

Item: BUSHING

QTY:

Ref: 260 Part #: 04811-50700 Price: $2.41

Item: O-RING

QTY:

Ref: 270 Part #: 34070-13620 Price: $10.64

Item: COLLAR, THRUST

QTY:

Ref: 280 Part #: 01176-51245 Price: $1.95

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 280 Part #: 01138-51245 Price: $2.59

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 290 Part #: 04512-70120 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 310 Part #: 53581-64150 Price: $3.20

Item: BAND, CORD L=140mm *

QTY:

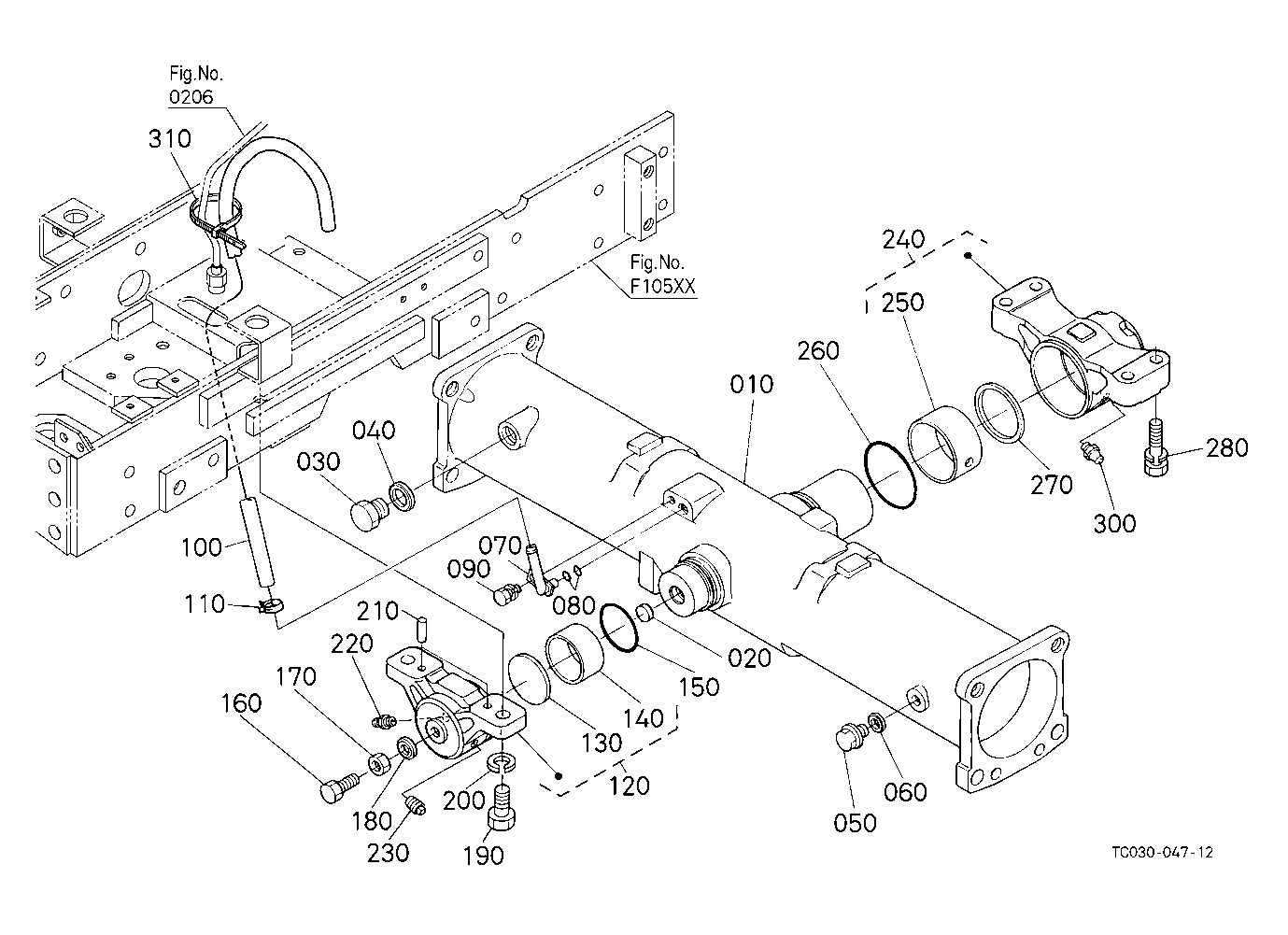

KUBOTA L4300DT PARTS FRONT AXLE CHASSIS F12500 FRONT DIFFERENTIAL CASE
