KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	TA140-14003	FRAME F-AXLE COMP	$2,016.76
010	TA140-14003	FRAME F-AXLE COMP	$2,016.76
020, 050	TA040-14252	BOLT	$6.03
030, 060	04512-70160	WASHER,SPRING	$0.99
040, 070	02174-50160	NUT,HEX M16x2 4T JIS ***	$1.49
080	01133-51230	BOLT M12x1.25x30 mm ***	$1.55
090	01133-51240	BOLT M12x1.25x40 mm ***	$1.68
100	TA049-44880	BUMPER	$403.49
100	TA049-44880	BUMPER	$403.49
110	01133-51435	BOLT M14x1.5x35 mm ***	$2.21
120, 150	04512-70140	WASHER,SPRING *	$0.99
130	01173-51435	BOLT M14x1.5x35 mm ***	$2.01
140	02174-50140	NUT, HEX M14-1.5 ***	$1.00

Ref: 010 Part #: TA140-14003 Price: $2,016.76

Item: FRAME F-AXLE COMP

QTY:

Ref: 010 Part #: TA140-14003 Price: $2,016.76

Item: FRAME F-AXLE COMP

QTY:

Ref: 020050 Part #: TA040-14252 Price: $6.03

Item: BOLT

QTY:

Ref: 030060 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 040070 Part #: 02174-50160 Price: $1.49

Item: NUT,HEX M16x2 4T JIS ***

QTY:

Ref: 080 Part #: 01133-51230 Price: $1.55

Item: BOLT M12x1.25x30 mm ***

QTY:

Ref: 090 Part #: 01133-51240 Price: $1.68

Item: BOLT M12x1.25x40 mm ***

QTY:

Ref: 100 Part #: TA049-44880 Price: $403.49

Item: BUMPER

QTY:

Ref: 100 Part #: TA049-44880 Price: $403.49

Item: BUMPER

QTY:

Ref: 110 Part #: 01133-51435 Price: $2.21

Item: BOLT M14x1.5x35 mm ***

QTY:

Ref: 120150 Part #: 04512-70140 Price: $0.99

Item: WASHER,SPRING *

QTY:

Ref: 130 Part #: 01173-51435 Price: $2.01

Item: BOLT M14x1.5x35 mm ***

QTY:

Ref: 140 Part #: 02174-50140 Price: $1.00

Item: NUT, HEX M14-1.5 ***

QTY:

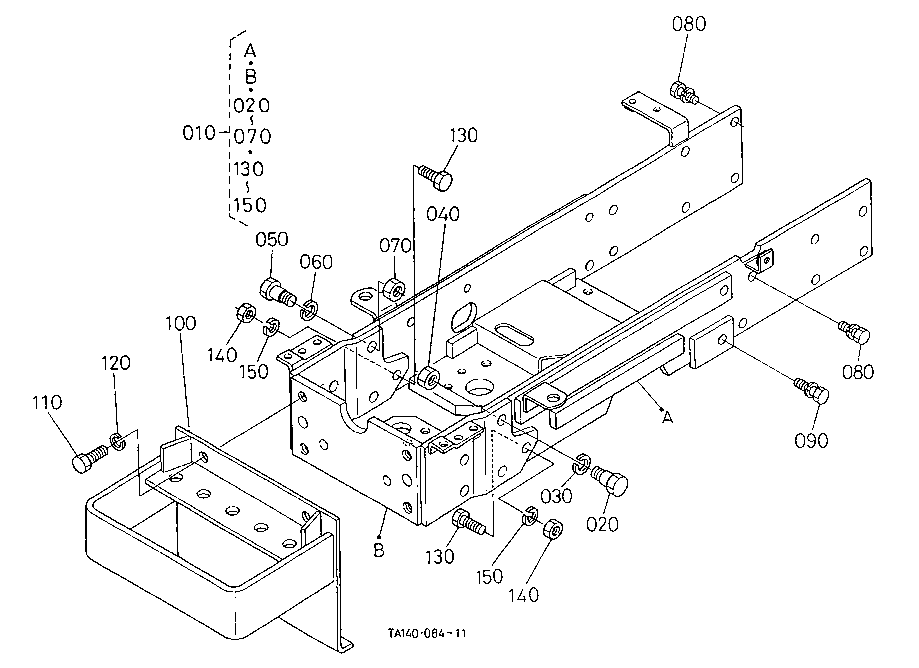

KUBOTA L4310DT GST HST PARTS FRONT AXLE CHASSIS F10502 FRONT AXLE FRAME
