KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	77700-12017	STARTER, 12V	$879.86
020	15461-63080	ASSY YOKE	$456.42
030	15511-63070	ARMATURE	$548.72
040	15511-63500	BEARING BALL RADIAL10/30	$29.70
050	15511-63530	BEARING BALL RADIAL10/26	$34.82
060	15601-63042	CLUTCH, OVER RUNNING	$385.43
080	19821-63030	FRAME DRIVE END	$133.16
090	17381-63020	MAGNETIC SWITCH ASSY	$444.82
100	17341-63380	ASSY HOLDER, BUSH	$53.33
110	15401-63390	SPRING,BRUSH *	$2.37
120	19212-97130	BALL, STEEL	$0.99
130	19212-63120	SPRING	$2.13
140	19212-63100	ROLLER	$1.58
150	19212-63110	RETAINER	$6.98
160	15401-63270	GEAR, SPUR 2	$46.42
170	15511-63260	GEAR 1	$26.82
180	15511-96660	O-RING	$14.19
190	17381-63200	END FRAME	$63.96
200	19215-63320	BOLT	$9.39
210	17381-63290	COVER	$12.13
220	15511-63760	ASSY BOLT	$5.13
230	15501-93310	SCREW, PAN HEAD	$0.99
240	17381-63450	COVER ***	$8.74
250	13963-92010	NUT, HEX	$3.52

Ref: 010 Part #: 77700-12017 Price: $879.86

Item: STARTER, 12V

QTY:

Ref: 020 Part #: 15461-63080 Price: $456.42

Item: ASSY YOKE

QTY:

Ref: 030 Part #: 15511-63070 Price: $548.72

Item: ARMATURE

QTY:

Ref: 040 Part #: 15511-63500 Price: $29.70

Item: BEARING BALL RADIAL10/30

QTY:

Ref: 050 Part #: 15511-63530 Price: $34.82

Item: BEARING BALL RADIAL10/26

QTY:

Ref: 060 Part #: 15601-63042 Price: $385.43

Item: CLUTCH, OVER RUNNING

QTY:

Ref: 080 Part #: 19821-63030 Price: $133.16

Item: FRAME DRIVE END

QTY:

Ref: 090 Part #: 17381-63020 Price: $444.82

Item: MAGNETIC SWITCH ASSY

QTY:

Ref: 100 Part #: 17341-63380 Price: $53.33

Item: ASSY HOLDER, BUSH

QTY:

Ref: 110 Part #: 15401-63390 Price: $2.37

Item: SPRING,BRUSH *

QTY:

Ref: 120 Part #: 19212-97130 Price: $0.99

Item: BALL, STEEL

QTY:

Ref: 130 Part #: 19212-63120 Price: $2.13

Item: SPRING

QTY:

Ref: 140 Part #: 19212-63100 Price: $1.58

Item: ROLLER

QTY:

Ref: 150 Part #: 19212-63110 Price: $6.98

Item: RETAINER

QTY:

Ref: 160 Part #: 15401-63270 Price: $46.42

Item: GEAR, SPUR 2

QTY:

Ref: 170 Part #: 15511-63260 Price: $26.82

Item: GEAR 1

QTY:

Ref: 180 Part #: 15511-96660 Price: $14.19

Item: O-RING

QTY:

Ref: 190 Part #: 17381-63200 Price: $63.96

Item: END FRAME

QTY:

Ref: 200 Part #: 19215-63320 Price: $9.39

Item: BOLT

QTY:

Ref: 210 Part #: 17381-63290 Price: $12.13

Item: COVER

QTY:

Ref: 220 Part #: 15511-63760 Price: $5.13

Item: ASSY BOLT

QTY:

Ref: 230 Part #: 15501-93310 Price: $0.99

Item: SCREW, PAN HEAD

QTY:

Ref: 240 Part #: 17381-63450 Price: $8.74

Item: COVER ***

QTY:

Ref: 250 Part #: 13963-92010 Price: $3.52

Item: NUT, HEX

QTY:

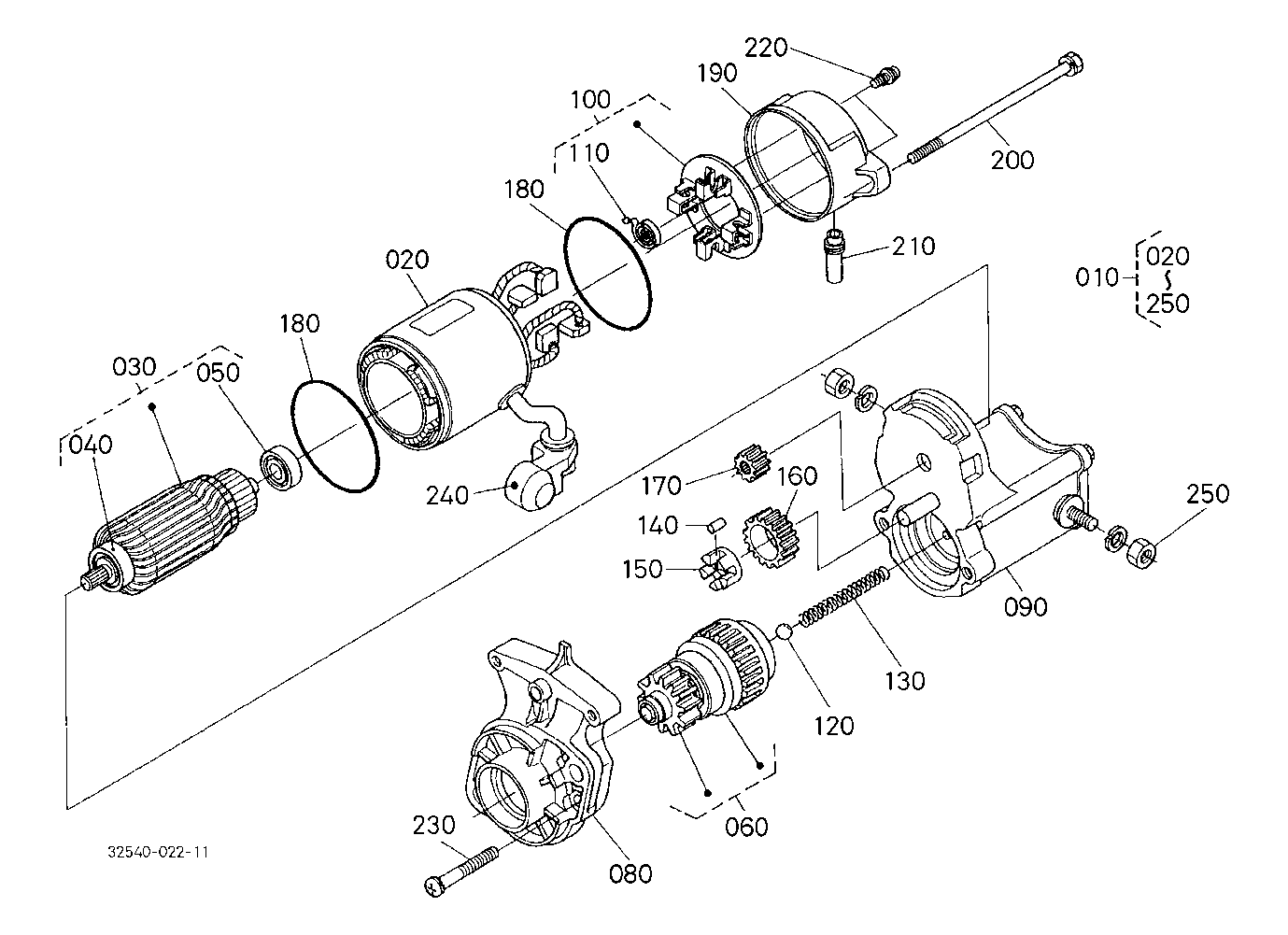

KUBOTA L4350DT PARTS ELECTRICAL SYSTEM T04202 STARTER [OLD TYPE] [COMPONENT PARTS]
