Ref	Part #	Item	Price
010	32530-27115	REAR AXLE	$1,309.20
040	38430-27140	COLLAR	$12.08
050	08101-06211	BEARING BALL RADIAL55/100	$35.81
060	08101-06212	BEARING, BALL(RADIAL)	$45.18
070	38430-27150	NUT*	$40.82
080	TC250-48250	SEAL,OIL	$48.59
090	36200-48120	COVER, REAR AXLE	$91.64
100	36200-48132	GASKET	$6.67
110	01133-51040	BOLT M10x1.25x40 mm ***	$1.90
120	32530-27310	BOX, AXLE REAR ***	$720.01
130	36200-48160	O RING ***	$15.00
140	32530-27350	STUD	$7.16
150	02176-50120	NUT, HEX M12x1.25 ***	$0.99
160	04512-70120	WASHER,SPRING	$0.99
170	32530-37180	BOLT	$6.97

Ref: 010 Part #: 32530-27115 Price: $1,309.20

Item: REAR AXLE

QTY:

Ref: 040 Part #: 38430-27140 Price: $12.08

Item: COLLAR

QTY:

Ref: 050 Part #: 08101-06211 Price: $35.81

Item: BEARING BALL RADIAL55/100

QTY:

Ref: 060 Part #: 08101-06212 Price: $45.18

Item: BEARING, BALL(RADIAL)

QTY:

Ref: 070 Part #: 38430-27150 Price: $40.82

Item: NUT*

QTY:

Ref: 080 Part #: TC250-48250 Price: $48.59

Item: SEAL,OIL

QTY:

Ref: 090 Part #: 36200-48120 Price: $91.64

Item: COVER, REAR AXLE

QTY:

Ref: 100 Part #: 36200-48132 Price: $6.67

Item: GASKET

QTY:

Ref: 110 Part #: 01133-51040 Price: $1.90

Item: BOLT M10x1.25x40 mm ***

QTY:

Ref: 120 Part #: 32530-27310 Price: $720.01

Item: BOX, AXLE REAR ***

QTY:

Ref: 130 Part #: 36200-48160 Price: $15.00

Item: O RING ***

QTY:

Ref: 140 Part #: 32530-27350 Price: $7.16

Item: STUD

QTY:

Ref: 150 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 160 Part #: 04512-70120 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 170 Part #: 32530-37180 Price: $6.97

Item: BOLT

QTY:

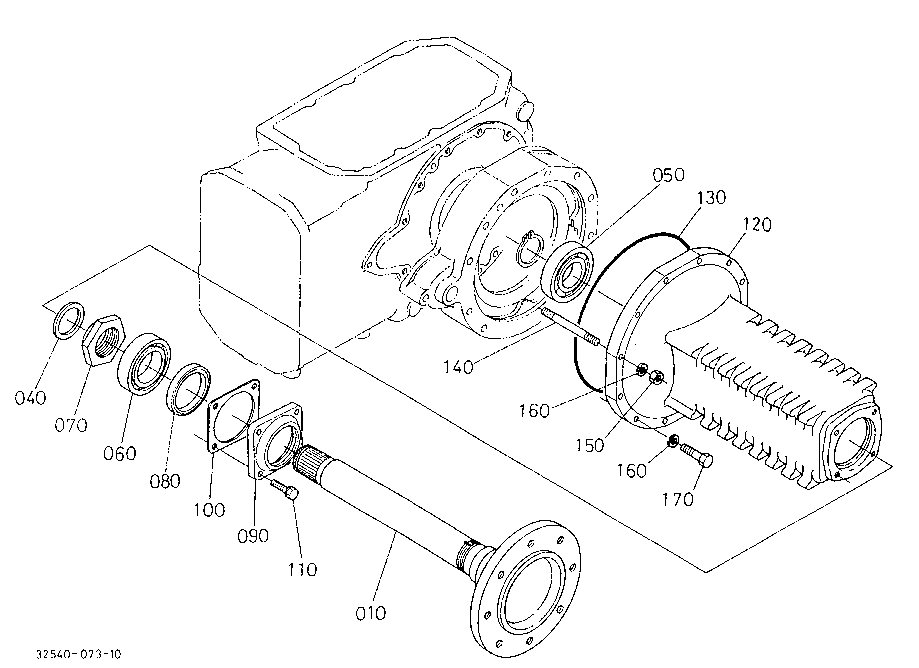

KUBOTA L4350DT PARTS REAR AXLE REAR WHEEL T07701 REAR AXLE
