Ref	Part #	Item	Price
010	32590-21740	GEAR	$297.76
020	32590-21730	GEAR	$325.97
030	32590-21720	GEAR ***	$281.42
040	32590-21710	GEAR, 24T ***	$253.58
050	32530-21850	COUPLING	$42.32
060	32530-21870	RACE,INNER 4	$52.28
070	32530-21810	BOSS, SPLINE ***	$67.14
080	32530-21750	SHIFTER	$110.35
090	32530-21770	HUB, CLUTCH	$152.21
100	38360-21750	CLUTCH	$202.97
105	32530-21700	ASSY SHIFTERS ***	$338.93
110	32430-67630	SYNCHRONIZER	$47.14
110	32430-67630	SYNCHRONIZER	$47.14
120	38360-21760	KEY, SYNCHRONIZER	$24.75
130	38360-21780	SPRING, KEY *	$3.19
140	32590-21860	COLLAR, THRUST	$13.44
150	32530-21830	COLLAR, THRUST	$21.90
160	36280-41150	WASHER, THRUST	$12.23
170	08151-06208	BEARING BALL RADIAL40/80	$33.89
180	08101-06307	BEARING, BALL (RADIAL) ***	$27.35
190	32530-21620	NUT 35 ***	$78.70
200	38430-25530	BEARING RETAINER	$9.42
210	01123-50820	BOLT M8x1.25x20 mm ***	$0.99
220	32530-21610	SHAFT, COUNTER ***	$382.94
230	32530-21630	COUNTERSHAFT 2	$446.45
240	32530-25160	BUSH	$5.38

Ref: 010 Part #: 32590-21740 Price: $297.76

Item: GEAR

QTY:

Ref: 020 Part #: 32590-21730 Price: $325.97

Item: GEAR

QTY:

Ref: 030 Part #: 32590-21720 Price: $281.42

Item: GEAR ***

QTY:

Ref: 040 Part #: 32590-21710 Price: $253.58

Item: GEAR, 24T ***

QTY:

Ref: 050 Part #: 32530-21850 Price: $42.32

Item: COUPLING

QTY:

Ref: 060 Part #: 32530-21870 Price: $52.28

Item: RACE,INNER 4

QTY:

Ref: 070 Part #: 32530-21810 Price: $67.14

Item: BOSS, SPLINE ***

QTY:

Ref: 080 Part #: 32530-21750 Price: $110.35

Item: SHIFTER

QTY:

Ref: 090 Part #: 32530-21770 Price: $152.21

Item: HUB, CLUTCH

QTY:

Ref: 100 Part #: 38360-21750 Price: $202.97

Item: CLUTCH

QTY:

Ref: 105 Part #: 32530-21700 Price: $338.93

Item: ASSY SHIFTERS ***

QTY:

Ref: 110 Part #: 32430-67630 Price: $47.14

Item: SYNCHRONIZER

QTY:

Ref: 110 Part #: 32430-67630 Price: $47.14

Item: SYNCHRONIZER

QTY:

Ref: 120 Part #: 38360-21760 Price: $24.75

Item: KEY, SYNCHRONIZER

QTY:

Ref: 130 Part #: 38360-21780 Price: $3.19

Item: SPRING, KEY *

QTY:

Ref: 140 Part #: 32590-21860 Price: $13.44

Item: COLLAR, THRUST

QTY:

Ref: 150 Part #: 32530-21830 Price: $21.90

Item: COLLAR, THRUST

QTY:

Ref: 160 Part #: 36280-41150 Price: $12.23

Item: WASHER, THRUST

QTY:

Ref: 170 Part #: 08151-06208 Price: $33.89

Item: BEARING BALL RADIAL40/80

QTY:

Ref: 180 Part #: 08101-06307 Price: $27.35

Item: BEARING, BALL (RADIAL) ***

QTY:

Ref: 190 Part #: 32530-21620 Price: $78.70

Item: NUT 35 ***

QTY:

Ref: 200 Part #: 38430-25530 Price: $9.42

Item: BEARING RETAINER

QTY:

Ref: 210 Part #: 01123-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 220 Part #: 32530-21610 Price: $382.94

Item: SHAFT, COUNTER ***

QTY:

Ref: 230 Part #: 32530-21630 Price: $446.45

Item: COUNTERSHAFT 2

QTY:

Ref: 240 Part #: 32530-25160 Price: $5.38

Item: BUSH

QTY:

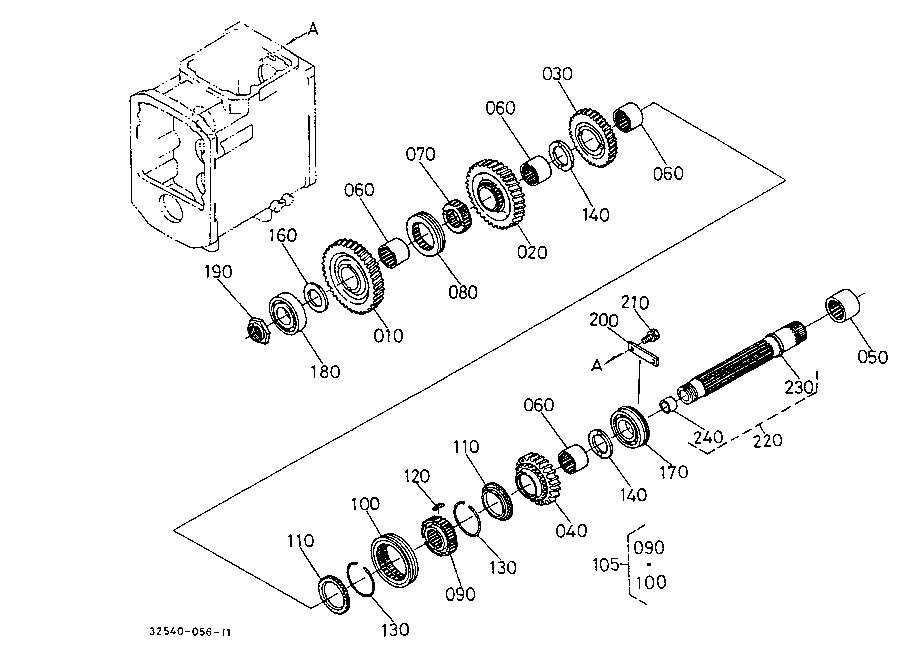

KUBOTA L4350DT PARTS TRANSMISSION T06200 COUNTERSHAFT
