Ref	Part #	Item	Price
010	TC432-23712	BASE,MAIN SHIFT	$113.66
020	01123-50820	BOLT M8x1.25x20 mm ***	$0.99
030	01513-50825	STUD ***	$1.00
040	02751-50080	NUT,HEX M8X1.25 FLANGE 4T	$3.05
050	04811-50600	O RING *	$1.98
060	TC432-23810	LEVER,MAIN SHIFT	$169.76
070	TC422-49850	GRIP,MAIN SHIFT	$50.96
080	02116-50100	NUT, HEX M10 ***	$0.99
090	TC402-23870	SHIELD,SHIFT PTO	$23.02
100	04611-00420	CIR-CLIP, INTERNAL	$1.65
110	TC402-24970	SHIELD,SHIFT PTO UP	$23.02
120	TC402-24760	SPRING,PTO SHIFT	$4.87
130	TC402-24810	POPPET,PTO SHIFT	$11.68
140	TC402-24820	PLUG,COVER CH	$7.51
150	04717-01200	WASHER, w/RUBBER ***	$1.49
160	TC402-24782	COLLAR, MAIN SHIFT	$4.36

Ref: 010 Part #: TC432-23712 Price: $113.66

Item: BASE,MAIN SHIFT

QTY:

Ref: 020 Part #: 01123-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 030 Part #: 01513-50825 Price: $1.00

Item: STUD ***

QTY:

Ref: 040 Part #: 02751-50080 Price: $3.05

Item: NUT,HEX M8X1.25 FLANGE 4T

QTY:

Ref: 050 Part #: 04811-50600 Price: $1.98

Item: O RING *

QTY:

Ref: 060 Part #: TC432-23810 Price: $169.76

Item: LEVER,MAIN SHIFT

QTY:

Ref: 070 Part #: TC422-49850 Price: $50.96

Item: GRIP,MAIN SHIFT

QTY:

Ref: 080 Part #: 02116-50100 Price: $0.99

Item: NUT, HEX M10 ***

QTY:

Ref: 090 Part #: TC402-23870 Price: $23.02

Item: SHIELD,SHIFT PTO

QTY:

Ref: 100 Part #: 04611-00420 Price: $1.65

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 110 Part #: TC402-24970 Price: $23.02

Item: SHIELD,SHIFT PTO UP

QTY:

Ref: 120 Part #: TC402-24760 Price: $4.87

Item: SPRING,PTO SHIFT

QTY:

Ref: 130 Part #: TC402-24810 Price: $11.68

Item: POPPET,PTO SHIFT

QTY:

Ref: 140 Part #: TC402-24820 Price: $7.51

Item: PLUG,COVER CH

QTY:

Ref: 150 Part #: 04717-01200 Price: $1.49

Item: WASHER, w/RUBBER ***

QTY:

Ref: 160 Part #: TC402-24782 Price: $4.36

Item: COLLAR, MAIN SHIFT

QTY:

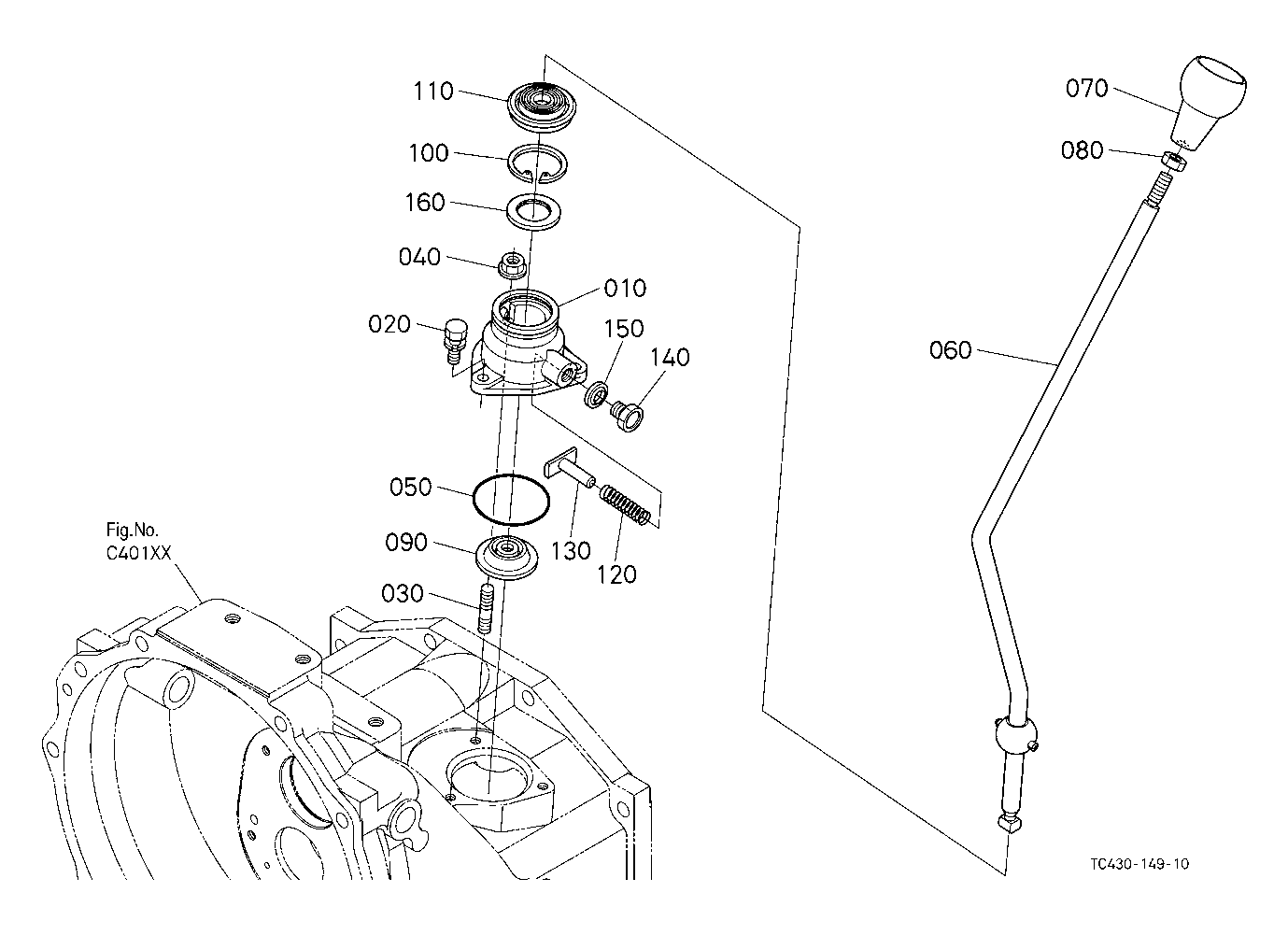

KUBOTA L4701F PARTS SPEED CHANGE SHIFT FORK SHIFT LEVER E10100 MAIN GEAR SHIFT LEVER
