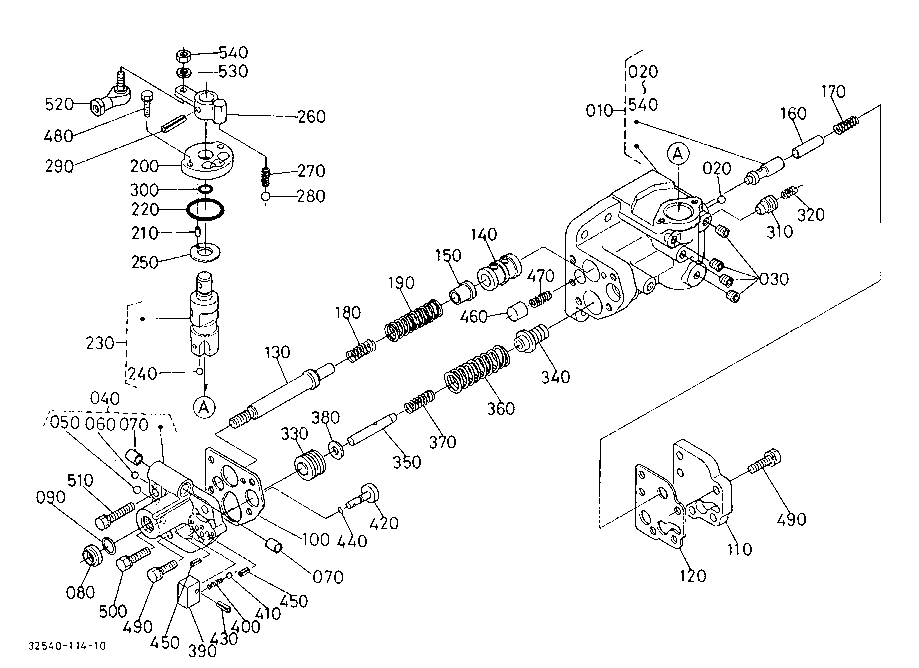

KUBOTA L4850DT PARTS HYDRAULIC SYSTEM T11503 SHUTTLE AND CLUTCH VELVE (HDT-W) [COMPONENT PARTS]

    KUBOTA >kubota-l4850dt-parts-hydraulic-system-t11503-shuttle-and-clutch-velve-(hdt-w)-[component-parts]
    Ref: 010  Part #: 32590-46700  Price: $1,765.58

    Item: ASSY VALVE, HCS ***

    QTY:
    Ref: 020  Part #: 07715-03211  Price: $0.99

    Item: BALL (CREEP SPEED KIT COMPONENT)

    QTY:
    Ref: 030  Part #: 31351-37160  Price: $3.34

    Item: PLUG, 9.728 w/6mm Orifice *

    QTY:
    Ref: 040  Part #: 32590-46760  Price: $484.57

    Item: COVER, FRONT

    QTY:
    Ref: 050  Part #: 07715-01605  Price: $0.99

    Item: BALL

    QTY:
    Ref: 060  Part #: 07715-00401  Price: $0.99

    Item: BALL, PISTON CRANKSHAFT *

    QTY:
    Ref: 070  Part #: 08511-01010  Price: $2.49

    Item: BUSHING

    QTY:
    Ref: 080  Part #: 38747-71660  Price: $3.34

    Item: SEAL

    QTY:
    Ref: 090  Part #: 04816-00140  Price: $1.32

    Item: O-RING ***

    QTY:
    Ref: 100  Part #: 32590-46770  Price: $13.51

    Item: GASKET, FRONT ***

    QTY:
    Ref: 110  Part #: 32590-46780  Price: $272.29

    Item: COVER REAR

    QTY:
    Ref: 120  Part #: 32590-46790  Price: $12.79

    Item: GASKET REAR ***

    QTY:
    Ref: 130  Part #: 32590-46720  Price: $364.81

    Item: ROD

    QTY:
    Ref: 140  Part #: 32590-46700  Price: $1,765.58

    Item: ASSY VALVE, HCS ***

    QTY:
    Ref: 150  Part #: 32590-46750  Price: $38.07

    Item: SEAT, SPRING

    QTY:
    Ref: 160  Part #: 32590-46810  Price: $33.14

    Item: ROD

    QTY:
    Ref: 170  Part #: 32590-46820  Price: $18.68

    Item: SPRING, REAR ***

    QTY:
    Ref: 180  Part #: 32590-46830  Price: $24.31

    Item: SPRING, INNER ***

    QTY:
    Ref: 190  Part #: 32590-46840  Price: $21.89

    Item: SPRING, OUTER ***

    QTY:
    Ref: 200  Part #: 32590-46800  Price: $704.92

    Item: COVER, SELECTOR ***

    QTY:
    Ref: 210  Part #: 05012-00206  Price: $0.99

    Item: PIN, STRAIGHT

    QTY:
    Ref: 220  Part #: 04811-10350  Price: $1.89

    Item: O-RING

    QTY:
    Ref: 230  Part #: 32590-46900  Price: $288.63

    Item: SELECTOR ***

    QTY:
    Ref: 240  Part #: 07715-03209  Price: $0.99

    Item: BALL, VALVE CONTROL

    QTY:
    Ref: 250  Part #: 32590-46910  Price: $10.32

    Item: BUSH THRUST

    QTY:
    Ref: 260  Part #: 32590-46920  Price: $148.98

    Item: LEVER SHIFT ***

    QTY:
    Ref: 270  Part #: 32590-47150  Price: $21.90

    Item: SPRING ***

    QTY:
    Ref: 280  Part #: 07715-00803  Price: $0.99

    Item: BALL

    QTY:
    Ref: 290  Part #: 05411-00530  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 300  Part #: 04816-00120  Price: $1.28

    Item: O-RING

    QTY:
    Ref: 310  Part #: 32590-46860  Price: $61.71

    Item: VALVE, RELIEF ***

    QTY:
    Ref: 320  Part #: 32590-46870  Price: $8.99

    Item: SPRING

    QTY:
    Ref: 330  Part #: 32530-46120  Price: $54.77

    Item: PISTON, VALVE ***

    QTY:
    Ref: 340  Part #: 32530-46130  Price: $179.76

    Item: VALVE, RELIEF 1 ***

    QTY:
    Ref: 350  Part #: 35370-46140  Price: $26.35

    Item: PIN ***

    QTY:
    Ref: 360  Part #: 35370-46150  Price: $10.32

    Item: SPRING ***

    QTY:
    Ref: 370  Part #: 35370-46160  Price: $9.79

    Item: SPRING ***

    QTY:
    Ref: 380  Part #: 35370-46170  Price: $3.34

    Item: SHIM ***

    QTY:
    Ref: 380  Part #: 35370-46180  Price: $3.17

    Item: SHIM ***

    QTY:
    Ref: 390  Part #: 35370-46310  Price: $72.08

    Item: LEVER

    QTY:
    Ref: 400  Part #: 35370-46320  Price: $5.38

    Item: SPRING ***

    QTY:
    Ref: 410  Part #: 07715-00801  Price: $0.99

    Item: BALL

    QTY:
    Ref: 420  Part #: 32590-49880  Price: $210.97

    Item: ORIFICE, ROTARY

    QTY:
    Ref: 430  Part #: 05411-00216  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 440  Part #: 04811-10040  Price: $1.28

    Item: O-RING

    QTY:
    Ref: 450  Part #: 05411-00208  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 460  Part #: 32530-46210  Price: $64.89

    Item: VALVE, CHECK ***

    QTY:
    Ref: 470  Part #: 35370-46220  Price: $10.32

    Item: SPRING ***

    QTY:
    Ref: 480  Part #: 01023-50616  Price: $0.99

    Item: BOLT M6x1.0x16 mm ***

    QTY:
    Ref: 490  Part #: 01123-50825  Price: $0.99

    Item: BOLT M8x1.25x25 mm *

    QTY:
    Ref: 500  Part #: 01123-50830  Price: $0.99

    Item: BOLT M8x1.25x30 mm ***

    QTY:
    Ref: 510  Part #: 01123-50840  Price: $1.17

    Item: BOLT M8x1.25x40 mm ***

    QTY:
    Ref: 520  Part #: 32530-41510  Price: $161.54

    Item: BALL, LINK

    QTY:
    Ref: 530  Part #: 04512-70050  Price: $0.99

    Item: WASHER,SPRING

    QTY:
    Ref: 540  Part #: 02054-50050  Price: $0.99

    Item: NUT ***
