KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	32530-20525	CASE, BEARING	$175.53
020	01176-51040	BOLT, PIN	$2.47
030	04512-70100	WASHER,SPRING	$0.99
040	01133-51240	BOLT M12x1.25x40 mm ***	$1.68
050	32590-20570	PIPE, KNOCK	$1.64
060	32540-20610	SHAFT, FIRST	$1,714.23
070	32530-20540	GEAR 23 ***	$83.37
080	32530-20560	GEAR 22T	$141.56
090	32530-20530	COLLAR (SHAFT) ***	$9.59
100	36730-28043	CIR-CLIP (CREEP KIT COMPONENT)**	$9.14
100	36730-28043	CIR-CLIP (CREEP KIT COMPONENT)**	$9.14
110	08151-06208	BEARING BALL RADIAL40/80	$33.89
120	08101-06207	BEARING,BALL RADIAL 35/72 ***	$13.69
130	36730-24330	SEAL, 1ST SHAFT	$25.90
140	32530-20920	SHAFT, 1ST PTO	$202.89
150	08101-06005	BEARING, BALL RADIAL35/47	$9.05
160	04611-00470	CIR-CLIP, INTERNAL	$1.94
170, 230	38430-21550	CIR-CLIP, EXTERNAL	$8.22
180	32530-20570	GEAR 25 ***	$79.31
190	08822-53216	BRG NDL ROLLER25/32	$10.60
200	32530-20660	SHAFT, BACK	$98.04
210	04816-00210	O RING	$1.32
220	32530-21760	COLLAR (SHAFT)	$10.67
240	32530-23130	SCREW	$4.57
250	04512-70080	WASHER,SPRING	$0.99

Ref: 010 Part #: 32530-20525 Price: $175.53

Item: CASE, BEARING

QTY:

Ref: 020 Part #: 01176-51040 Price: $2.47

Item: BOLT, PIN

QTY:

Ref: 030 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 040 Part #: 01133-51240 Price: $1.68

Item: BOLT M12x1.25x40 mm ***

QTY:

Ref: 050 Part #: 32590-20570 Price: $1.64

Item: PIPE, KNOCK

QTY:

Ref: 060 Part #: 32540-20610 Price: $1,714.23

Item: SHAFT, FIRST

QTY:

Ref: 070 Part #: 32530-20540 Price: $83.37

Item: GEAR 23 ***

QTY:

Ref: 080 Part #: 32530-20560 Price: $141.56

Item: GEAR 22T

QTY:

Ref: 090 Part #: 32530-20530 Price: $9.59

Item: COLLAR (SHAFT) ***

QTY:

Ref: 100 Part #: 36730-28043 Price: $9.14

Item: CIR-CLIP (CREEP KIT COMPONENT)**

QTY:

Ref: 100 Part #: 36730-28043 Price: $9.14

Item: CIR-CLIP (CREEP KIT COMPONENT)**

QTY:

Ref: 110 Part #: 08151-06208 Price: $33.89

Item: BEARING BALL RADIAL40/80

QTY:

Ref: 120 Part #: 08101-06207 Price: $13.69

Item: BEARING,BALL RADIAL 35/72 ***

QTY:

Ref: 130 Part #: 36730-24330 Price: $25.90

Item: SEAL, 1ST SHAFT

QTY:

Ref: 140 Part #: 32530-20920 Price: $202.89

Item: SHAFT, 1ST PTO

QTY:

Ref: 150 Part #: 08101-06005 Price: $9.05

Item: BEARING, BALL RADIAL35/47

QTY:

Ref: 160 Part #: 04611-00470 Price: $1.94

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 170230 Part #: 38430-21550 Price: $8.22

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 180 Part #: 32530-20570 Price: $79.31

Item: GEAR 25 ***

QTY:

Ref: 190 Part #: 08822-53216 Price: $10.60

Item: BRG NDL ROLLER25/32

QTY:

Ref: 200 Part #: 32530-20660 Price: $98.04

Item: SHAFT, BACK

QTY:

Ref: 210 Part #: 04816-00210 Price: $1.32

Item: O RING

QTY:

Ref: 220 Part #: 32530-21760 Price: $10.67

Item: COLLAR (SHAFT)

QTY:

Ref: 240 Part #: 32530-23130 Price: $4.57

Item: SCREW

QTY:

Ref: 250 Part #: 04512-70080 Price: $0.99

Item: WASHER,SPRING

QTY:

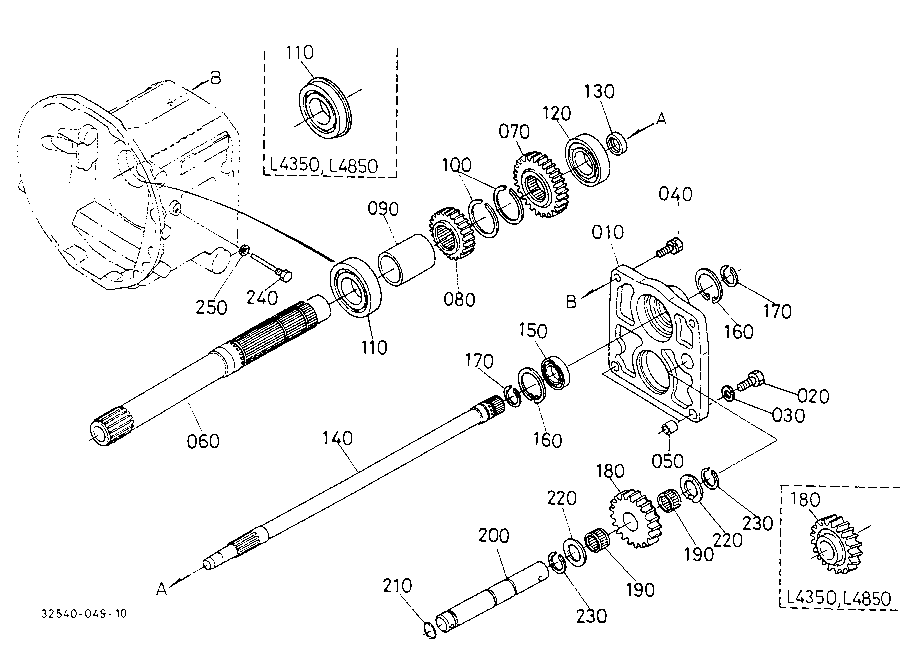

KUBOTA L4850DT PARTS TRANSMISSION T05901 1ST SHAFT (MDT)
