Ref	Part #	Item	Price
010	32530-21910	SHAFT, GEAR 12	$481.80
020	32530-25160	BUSH	$5.38
030	32590-21920	GEAR	$210.97
040	04612-00450	CIR-CLIP, EXTERNAL 45mm	$1.49
050	32530-21940	COLLAR (SHAFT)	$30.19
060	08151-06208	BEARING BALL RADIAL40/80	$33.89
070	35822-32380	BRG BALL 40/80	$59.36
080	32530-21990	WASHER 40	$6.15
090	36730-28043	CIR-CLIP (CREEP KIT COMPONENT)**	$9.14
090	36730-28043	CIR-CLIP (CREEP KIT COMPONENT)**	$9.14
100	04612-00400	CIR-CLIP, EXTERNAL 40mm	$1.49
110	38430-25530	BEARING RETAINER	$9.42
120	01123-50825	BOLT M8x1.25x25 mm *	$0.99
130	32530-21950	GEAR 39	$291.31
140	32590-21960	GEAR	$210.97
150	32530-25120	RACE,INNER 1	$94.39
160	32530-25150	RACE,INNER 2	$52.07
170	32530-21970	BOSS, SPLINE	$73.34
180	32530-21750	SHIFTER	$110.35
190	36280-41150	WASHER, THRUST	$12.23
200	32590-22130	BRG CYL ROLLER35/80	$158.51
210	32530-22140	BRG TAPER ROLL30/72	$108.75
220	32530-22150	CASE, PINION BEARING	$87.77
230	32530-22170	RETAINER, BEARING	$20.50
240	01133-51040	BOLT M10x1.25x40 mm ***	$1.90
250	01123-50820	BOLT M8x1.25x20 mm ***	$0.99
260	32530-22610	SHIM 0.5	$2.71
260	32530-22620	SHIM 0.2	$1.48
260	32530-22630	SHIM 0.1	$1.32
270	32580-44160	GEAR 23 (LH) ***	$70.35

Ref: 010 Part #: 32530-21910 Price: $481.80

Item: SHAFT, GEAR 12

QTY:

Ref: 020 Part #: 32530-25160 Price: $5.38

Item: BUSH

QTY:

Ref: 030 Part #: 32590-21920 Price: $210.97

Item: GEAR

QTY:

Ref: 040 Part #: 04612-00450 Price: $1.49

Item: CIR-CLIP, EXTERNAL 45mm

QTY:

Ref: 050 Part #: 32530-21940 Price: $30.19

Item: COLLAR (SHAFT)

QTY:

Ref: 060 Part #: 08151-06208 Price: $33.89

Item: BEARING BALL RADIAL40/80

QTY:

Ref: 070 Part #: 35822-32380 Price: $59.36

Item: BRG BALL 40/80

QTY:

Ref: 080 Part #: 32530-21990 Price: $6.15

Item: WASHER 40

QTY:

Ref: 090 Part #: 36730-28043 Price: $9.14

Item: CIR-CLIP (CREEP KIT COMPONENT)**

QTY:

Ref: 090 Part #: 36730-28043 Price: $9.14

Item: CIR-CLIP (CREEP KIT COMPONENT)**

QTY:

Ref: 100 Part #: 04612-00400 Price: $1.49

Item: CIR-CLIP, EXTERNAL 40mm

QTY:

Ref: 110 Part #: 38430-25530 Price: $9.42

Item: BEARING RETAINER

QTY:

Ref: 120 Part #: 01123-50825 Price: $0.99

Item: BOLT M8x1.25x25 mm *

QTY:

Ref: 130 Part #: 32530-21950 Price: $291.31

Item: GEAR 39

QTY:

Ref: 140 Part #: 32590-21960 Price: $210.97

Item: GEAR

QTY:

Ref: 150 Part #: 32530-25120 Price: $94.39

Item: RACE,INNER 1

QTY:

Ref: 160 Part #: 32530-25150 Price: $52.07

Item: RACE,INNER 2

QTY:

Ref: 170 Part #: 32530-21970 Price: $73.34

Item: BOSS, SPLINE

QTY:

Ref: 180 Part #: 32530-21750 Price: $110.35

Item: SHIFTER

QTY:

Ref: 190 Part #: 36280-41150 Price: $12.23

Item: WASHER, THRUST

QTY:

Ref: 200 Part #: 32590-22130 Price: $158.51

Item: BRG CYL ROLLER35/80

QTY:

Ref: 210 Part #: 32530-22140 Price: $108.75

Item: BRG TAPER ROLL30/72

QTY:

Ref: 220 Part #: 32530-22150 Price: $87.77

Item: CASE, PINION BEARING

QTY:

Ref: 230 Part #: 32530-22170 Price: $20.50

Item: RETAINER, BEARING

QTY:

Ref: 240 Part #: 01133-51040 Price: $1.90

Item: BOLT M10x1.25x40 mm ***

QTY:

Ref: 250 Part #: 01123-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 260 Part #: 32530-22610 Price: $2.71

Item: SHIM 0.5

QTY:

Ref: 260 Part #: 32530-22620 Price: $1.48

Item: SHIM 0.2

QTY:

Ref: 260 Part #: 32530-22630 Price: $1.32

Item: SHIM 0.1

QTY:

Ref: 270 Part #: 32580-44160 Price: $70.35

Item: GEAR 23 (LH) ***

QTY:

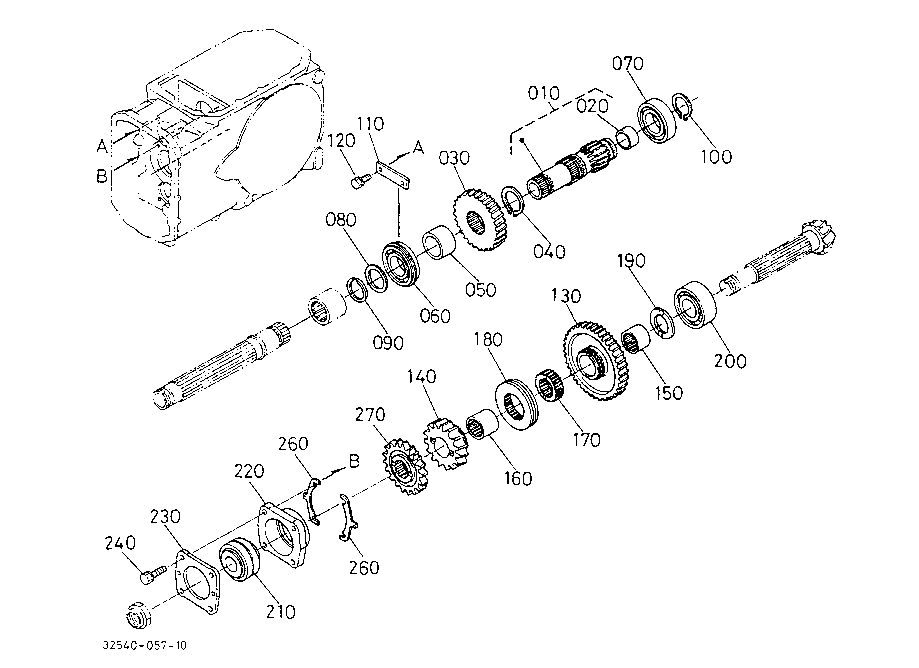

KUBOTA L4850DT PARTS TRANSMISSION T06300 RANGE GEAR SHAFT
