Ref	Part #	Item	Price
010	7J416-90112	FRAME, MAIN LH (LABEL)	$3,785.71
010	7J416-90112	FRAME, MAIN LH (LABEL)	$3,785.71
020, 150	7J246-56442	LABEL, WARNING 1	$1.86
030	7J246-56450	LABEL, CAUTION 1	$37.86
040, 160	01073-51860	BOLT M18x1.5x60 mm *	$5.88
050, 090, 130, 170, 210, 250	04512-70180	WASHER, SPRING	$0.99
060, 100, 180, 220	75599-32518	WASHER, PLAIN (HD) 3/4	$0.99
070, 190	7J416-55812	BOLT, STUD (M18X1.5)	$10.84
080	02076-50180	NUT ***	$1.94
110, 230	01073-51865	BOLT M18x1.5x65 mm * ***	$5.17
120, 240	01073-51850	HEX BOLT - LA1162 * ***	$7.19
140	7J416-90122	FRAME, MAIN RH (LABEL)	$3,391.03
140	7J416-90122	FRAME, MAIN RH (LABEL)	$3,391.03
200	02074-50180	NUT, HEX ***	$1.35
260	75568-55920	CONNECTOR 2	$185.79
270	01073-51660	BOLT	$4.13
280	02074-50160	NUT, 4T ***	$1.49
290	04512-70160	WASHER,SPRING	$0.99
300	75599-32517	WASHER,5/8 HD PLAIN	$0.99
310	75568-55950	STAY, TOOL BOX (PAINT)	$29.56
320	01073-51240	BOLT M12x1.25x40 mm ***	$1.68
330	04512-70120	WASHER,SPRING	$0.99
340, 350	02074-50120	NUT ***	$0.99
360	75599-32113	WASHER, FLAT 3/8 USS PLTD * *	$0.99
370	7J416-95500	KIT FRENCH	Call for price
380, 400	7J246-56442	LABEL, WARNING 1	$1.86
390	7J246-56450	LABEL, CAUTION 1	$37.86
410	7J416-90150	KIT SHIM (SVC MOUNTING)	$11.41
420	7J416-90160	SHIM ***	$2.08
420	7J416-90150	KIT SHIM (SVC MOUNTING)	$11.41

Ref: 010 Part #: 7J416-90112 Price: $3,785.71

Item: FRAME, MAIN LH (LABEL)

QTY:

Ref: 010 Part #: 7J416-90112 Price: $3,785.71

Item: FRAME, MAIN LH (LABEL)

QTY:

Ref: 020150 Part #: 7J246-56442 Price: $1.86

Item: LABEL, WARNING 1

QTY:

Ref: 030 Part #: 7J246-56450 Price: $37.86

Item: LABEL, CAUTION 1

QTY:

Ref: 040160 Part #: 01073-51860 Price: $5.88

Item: BOLT M18x1.5x60 mm *

QTY:

Ref: 050090130170210250 Part #: 04512-70180 Price: $0.99

Item: WASHER, SPRING

QTY:

Ref: 060100180220 Part #: 75599-32518 Price: $0.99

Item: WASHER, PLAIN (HD) 3/4

QTY:

Ref: 070190 Part #: 7J416-55812 Price: $10.84

Item: BOLT, STUD (M18X1.5)

QTY:

Ref: 080 Part #: 02076-50180 Price: $1.94

Item: NUT ***

QTY:

Ref: 110230 Part #: 01073-51865 Price: $5.17

Item: BOLT M18x1.5x65 mm * ***

QTY:

Ref: 120240 Part #: 01073-51850 Price: $7.19

Item: HEX BOLT - LA1162 * ***

QTY:

Ref: 140 Part #: 7J416-90122 Price: $3,391.03

Item: FRAME, MAIN RH (LABEL)

QTY:

Ref: 140 Part #: 7J416-90122 Price: $3,391.03

Item: FRAME, MAIN RH (LABEL)

QTY:

Ref: 200 Part #: 02074-50180 Price: $1.35

Item: NUT, HEX ***

QTY:

Ref: 260 Part #: 75568-55920 Price: $185.79

Item: CONNECTOR 2

QTY:

Ref: 270 Part #: 01073-51660 Price: $4.13

Item: BOLT

QTY:

Ref: 280 Part #: 02074-50160 Price: $1.49

Item: NUT, 4T ***

QTY:

Ref: 290 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 300 Part #: 75599-32517 Price: $0.99

Item: WASHER,5/8 HD PLAIN

QTY:

Ref: 310 Part #: 75568-55950 Price: $29.56

Item: STAY, TOOL BOX (PAINT)

QTY:

Ref: 320 Part #: 01073-51240 Price: $1.68

Item: BOLT M12x1.25x40 mm ***

QTY:

Ref: 330 Part #: 04512-70120 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 340350 Part #: 02074-50120 Price: $0.99

Item: NUT ***

QTY:

Ref: 360 Part #: 75599-32113 Price: $0.99

Item: WASHER, FLAT 3/8 USS PLTD *** ***

QTY:

Ref: 370 Part #: 7J416-95500 Price: Call for price

Item: KIT FRENCH

QTY:

Ref: 380400 Part #: 7J246-56442 Price: $1.86

Item: LABEL, WARNING 1

QTY:

Ref: 390 Part #: 7J246-56450 Price: $37.86

Item: LABEL, CAUTION 1

QTY:

Ref: 410 Part #: 7J416-90150 Price: $11.41

Item: KIT SHIM (SVC MOUNTING)

QTY:

Ref: 420 Part #: 7J416-90160 Price: $2.08

Item: SHIM ***

QTY:

Ref: 420 Part #: 7J416-90150 Price: $11.41

Item: KIT SHIM (SVC MOUNTING)

QTY:

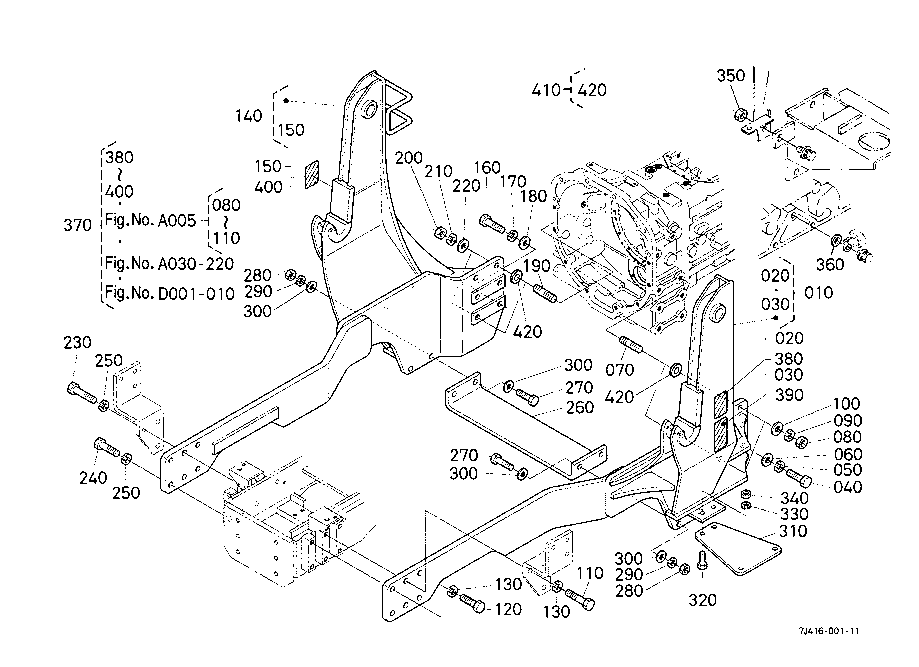

KUBOTA LA1301S PARTS CHASSIS A00100 MAIN FRAME
