Ref	Part #	Item	Price
010	7J419-55017	FRAME(MAIN LH)	$3,467.63
020, 090	01173-52060	BOLT M20x1.5x60 mm	$6.13
030, 060, 100, 130	04512-70200	WASHER, SPRING ***	$0.99
040, 070, 110, 140	75599-32518	WASHER, PLAIN (HD) 3/4	$0.99
050, 120	7J417-57992	BOLT, FRONT GUARD ***	$4.38
080	7J419-55035	FRAME, MAIN RH	$2,822.91
080	7J419-55035	FRAME, MAIN RH	$2,822.91
150	7J442-55950	STAY(TOOL BOX)	$40.33
160	01133-51020	BOLT M10x1.25x20 mm ***	$1.44
170	02114-50080	NUT, HEX M8-1.25 4T ***	$0.99
180	01123-50830	BOLT M8x1.25x30 mm ***	$0.99

Ref: 010 Part #: 7J419-55017 Price: $3,467.63

Item: FRAME(MAIN LH)

QTY:

Ref: 020090 Part #: 01173-52060 Price: $6.13

Item: BOLT M20x1.5x60 mm

QTY:

Ref: 030060100130 Part #: 04512-70200 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 040070110140 Part #: 75599-32518 Price: $0.99

Item: WASHER, PLAIN (HD) 3/4

QTY:

Ref: 050120 Part #: 7J417-57992 Price: $4.38

Item: BOLT, FRONT GUARD ***

QTY:

Ref: 080 Part #: 7J419-55035 Price: $2,822.91

Item: FRAME, MAIN RH

QTY:

Ref: 080 Part #: 7J419-55035 Price: $2,822.91

Item: FRAME, MAIN RH

QTY:

Ref: 150 Part #: 7J442-55950 Price: $40.33

Item: STAY(TOOL BOX)

QTY:

Ref: 160 Part #: 01133-51020 Price: $1.44

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 170 Part #: 02114-50080 Price: $0.99

Item: NUT, HEX M8-1.25 4T ***

QTY:

Ref: 180 Part #: 01123-50830 Price: $0.99

Item: BOLT M8x1.25x30 mm ***

QTY:

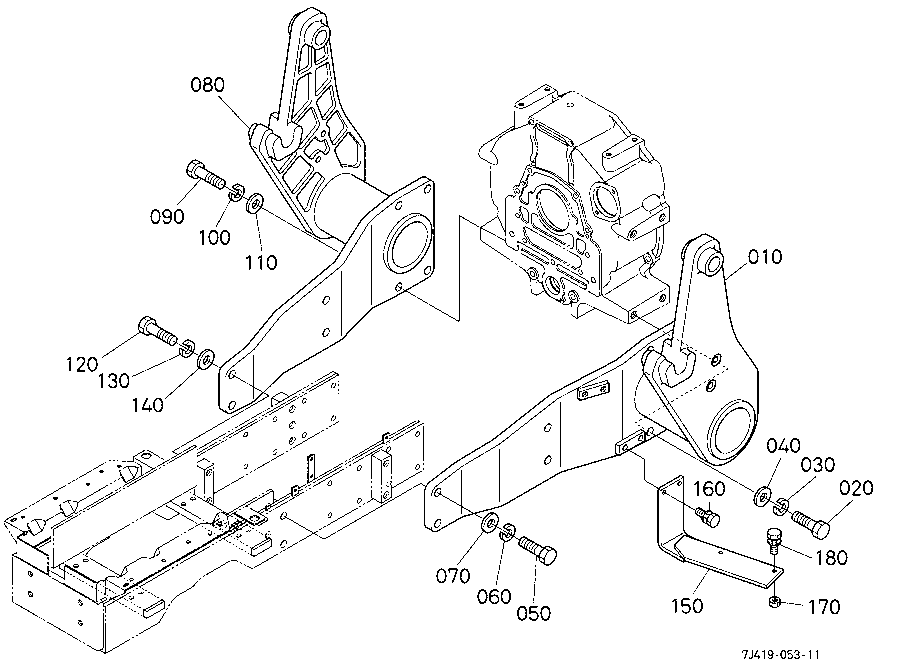

KUBOTA LA1353SA PARTS MAIN FRAME A00102 MAIN FRAME
