Ref	Part #	Item	Price
010	7J274-55013	FRAME, MAIN LH	$1,533.25
020, 050, 140, 170	01073-51645	BOLT M16x1.5x45 mm ***	$3.23
030, 060, 120, 150, 190, 250	75599-32517	WASHER,5/8 HD PLAIN	$0.99
040, 070, 110, 160, 200, 240	04512-70160	WASHER,SPRING	$0.99
080, 210	7J275-55312	FRAME,SUB	$138.13
080, 210	7J275-55312	FRAME,SUB	$138.13
090, 180, 220	01073-51655	BOLT M16x1.5x55 mm ***	$3.90
100, 230	02076-50160	NUT,HEX M16x1.5 ***	$1.65
130	7J274-55033	FRAME, MAIN RH	$1,519.99
260	75590-64650	BAND, CODE (zip tie) * ***	$1.56

Ref: 010 Part #: 7J274-55013 Price: $1,533.25

Item: FRAME, MAIN LH

QTY:

Ref: 020050140170 Part #: 01073-51645 Price: $3.23

Item: BOLT M16x1.5x45 mm ***

QTY:

Ref: 030060120150190250 Part #: 75599-32517 Price: $0.99

Item: WASHER,5/8 HD PLAIN

QTY:

Ref: 040070110160200240 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 080210 Part #: 7J275-55312 Price: $138.13

Item: FRAME,SUB

QTY:

Ref: 080210 Part #: 7J275-55312 Price: $138.13

Item: FRAME,SUB

QTY:

Ref: 090180220 Part #: 01073-51655 Price: $3.90

Item: BOLT M16x1.5x55 mm ***

QTY:

Ref: 100230 Part #: 02076-50160 Price: $1.65

Item: NUT,HEX M16x1.5 ***

QTY:

Ref: 130 Part #: 7J274-55033 Price: $1,519.99

Item: FRAME, MAIN RH

QTY:

Ref: 260 Part #: 75590-64650 Price: $1.56

Item: BAND, CODE (zip tie) * ***

QTY:

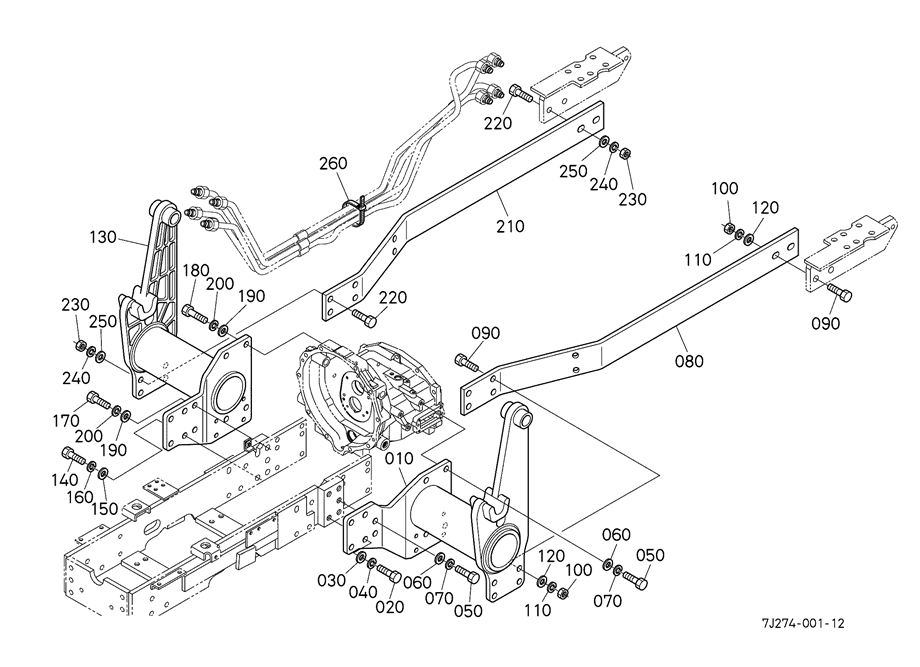

KUBOTA LA724 PARTS MAIN FRAME A00100 MAIN FRAME
