KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3F740-82300	ASSY VALVE	$2,268.12
020	01123-50865	BOLT M8x1.25x65 mm ***	$1.49
030	04816-00140	O-RING ***	$1.32
030	04816-00140	O-RING ***	$1.32
030	04817-00140	O-RING ***	$1.65
040	04816-00200	O-RING	$1.65
040	04816-00200	O-RING	$1.65
040	04817-00200	O-RING	$1.00
050	04816-00090	O RING	$0.99
050	04816-00090	O RING	$0.99
050	04817-00090	O-RING	$0.99
060	YR280-00210	FILTER, MESH	$40.71
070	YR517-11100	ASSY VALVE, RELIEF	$435.46
080	04811-00220	O-RING***	$1.04
080	04816-00220	O-RING	$2.08
080	04817-00220	O-RING	$2.08
090	04816-05150	O RING	$1.00
090	04816-05150	O RING	$1.00
090	04817-05150	O-RING *	$1.00
100	67810-38370	RING,BACK UP	$3.34
110	3F740-82450	SPRING	$12.39
120	3F740-82460	POPPET ***	$42.92
130	3T400-82470	COLLAR (RETAINER)	$13.82
140	04611-00240	CIR-CLIP, INTERNAL	$0.99
150	01153-50812	BOLT ***	$0.99
160	04717-00800	WASHER, w/RUBBER	$1.49
170	3F740-77992	PLATE, HARNES CLAMP	$3.23

Ref: 010 Part #: 3F740-82300 Price: $2,268.12

Item: ASSY VALVE

QTY:

Ref: 020 Part #: 01123-50865 Price: $1.49

Item: BOLT M8x1.25x65 mm ***

QTY:

Ref: 030 Part #: 04816-00140 Price: $1.32

Item: O-RING ***

QTY:

Ref: 030 Part #: 04816-00140 Price: $1.32

Item: O-RING ***

QTY:

Ref: 030 Part #: 04817-00140 Price: $1.65

Item: O-RING ***

QTY:

Ref: 040 Part #: 04816-00200 Price: $1.65

Item: O-RING

QTY:

Ref: 040 Part #: 04816-00200 Price: $1.65

Item: O-RING

QTY:

Ref: 040 Part #: 04817-00200 Price: $1.00

Item: O-RING

QTY:

Ref: 050 Part #: 04816-00090 Price: $0.99

Item: O RING

QTY:

Ref: 050 Part #: 04816-00090 Price: $0.99

Item: O RING

QTY:

Ref: 050 Part #: 04817-00090 Price: $0.99

Item: O-RING

QTY:

Ref: 060 Part #: YR280-00210 Price: $40.71

Item: FILTER, MESH

QTY:

Ref: 070 Part #: YR517-11100 Price: $435.46

Item: ASSY VALVE, RELIEF

QTY:

Ref: 080 Part #: 04811-00220 Price: $1.04

Item: O-RING***

QTY:

Ref: 080 Part #: 04816-00220 Price: $2.08

Item: O-RING

QTY:

Ref: 080 Part #: 04817-00220 Price: $2.08

Item: O-RING

QTY:

Ref: 090 Part #: 04816-05150 Price: $1.00

Item: O RING

QTY:

Ref: 090 Part #: 04816-05150 Price: $1.00

Item: O RING

QTY:

Ref: 090 Part #: 04817-05150 Price: $1.00

Item: O-RING *

QTY:

Ref: 100 Part #: 67810-38370 Price: $3.34

Item: RING,BACK UP

QTY:

Ref: 110 Part #: 3F740-82450 Price: $12.39

Item: SPRING

QTY:

Ref: 120 Part #: 3F740-82460 Price: $42.92

Item: POPPET ***

QTY:

Ref: 130 Part #: 3T400-82470 Price: $13.82

Item: COLLAR (RETAINER)

QTY:

Ref: 140 Part #: 04611-00240 Price: $0.99

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 150 Part #: 01153-50812 Price: $0.99

Item: BOLT ***

QTY:

Ref: 160 Part #: 04717-00800 Price: $1.49

Item: WASHER, w/RUBBER

QTY:

Ref: 170 Part #: 3F740-77992 Price: $3.23

Item: PLATE, HARNES CLAMP

QTY:

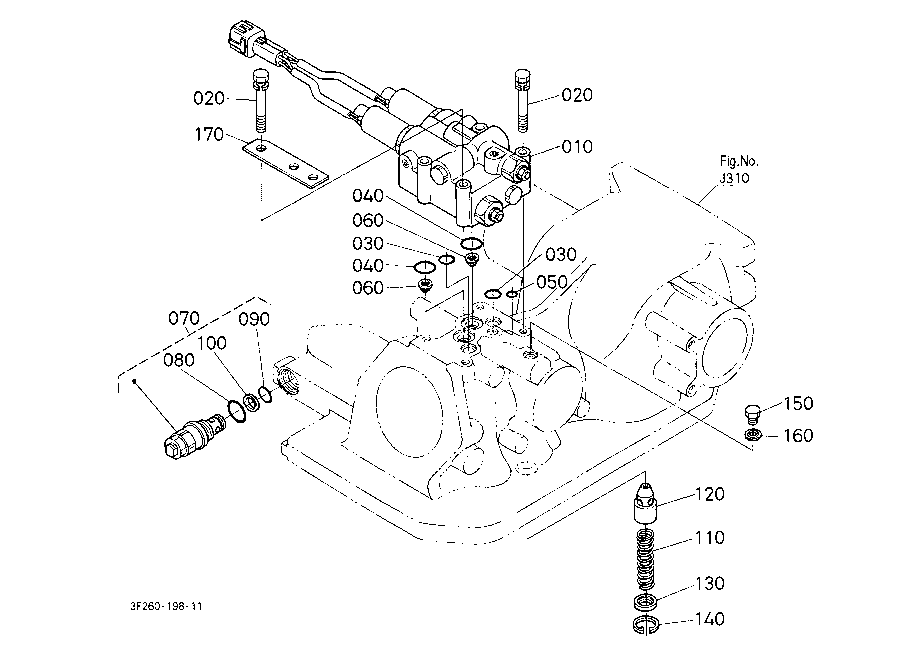

KUBOTA M 120FC PARTS HYDRAULIC SYSTEM J32500 DRAFT CONTROL VALVE
