Ref	Part #	Item	Price
010	3G710-44010	SHAFT, PEDAL	$88.38
020	04612-00250	CIR-CLIP, EXTERNAL ***	$0.99
030	3G710-44070	SUPPORT	$12.71
030	3G710-44074	SUPPORT, PEDAL SHAFT	$26.58
030	3G710-44074	SUPPORT, PEDAL SHAFT	$26.58
040	3N300-44120	PEDAL, BRAKE RH	$144.15
050	34070-44140	SEAL, OIL	$6.39
060	08822-52913	BEARING, NEEDLE ROLLER 25/29	$11.04
060	3R600-44130	BEARING, NEEDLE	$41.55
070	3N300-44110	PEDAL, BRAKE LH	$143.89
080	05411-00840	PIN, SPRING	$0.99
090	34070-44170	SPRING, BRAKE	$21.15
100	3N300-44000	ROD	$47.35
110, 140	01123-70816	BOLT M8x1.25x16 mm	$0.99
120	01155-70835	BOLT	$0.99
130	02114-50080	NUT, HEX M8-1.25 4T ***	$0.99
150	T2050-44120	COVER (PEDAL)	$7.59
150	T2050-44120	COVER (PEDAL)	$7.59

Ref: 010 Part #: 3G710-44010 Price: $88.38

Item: SHAFT, PEDAL

QTY:

Ref: 020 Part #: 04612-00250 Price: $0.99

Item: CIR-CLIP, EXTERNAL ***

QTY:

Ref: 030 Part #: 3G710-44070 Price: $12.71

Item: SUPPORT

QTY:

Ref: 030 Part #: 3G710-44074 Price: $26.58

Item: SUPPORT, PEDAL SHAFT

QTY:

Ref: 030 Part #: 3G710-44074 Price: $26.58

Item: SUPPORT, PEDAL SHAFT

QTY:

Ref: 040 Part #: 3N300-44120 Price: $144.15

Item: PEDAL, BRAKE RH

QTY:

Ref: 050 Part #: 34070-44140 Price: $6.39

Item: SEAL, OIL

QTY:

Ref: 060 Part #: 08822-52913 Price: $11.04

Item: BEARING, NEEDLE ROLLER 25/29

QTY:

Ref: 060 Part #: 3R600-44130 Price: $41.55

Item: BEARING, NEEDLE

QTY:

Ref: 070 Part #: 3N300-44110 Price: $143.89

Item: PEDAL, BRAKE LH

QTY:

Ref: 080 Part #: 05411-00840 Price: $0.99

Item: PIN, SPRING

QTY:

Ref: 090 Part #: 34070-44170 Price: $21.15

Item: SPRING, BRAKE

QTY:

Ref: 100 Part #: 3N300-44000 Price: $47.35

Item: ROD

QTY:

Ref: 110140 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 120 Part #: 01155-70835 Price: $0.99

Item: BOLT

QTY:

Ref: 130 Part #: 02114-50080 Price: $0.99

Item: NUT, HEX M8-1.25 4T ***

QTY:

Ref: 150 Part #: T2050-44120 Price: $7.59

Item: COVER (PEDAL)

QTY:

Ref: 150 Part #: T2050-44120 Price: $7.59

Item: COVER (PEDAL)

QTY:

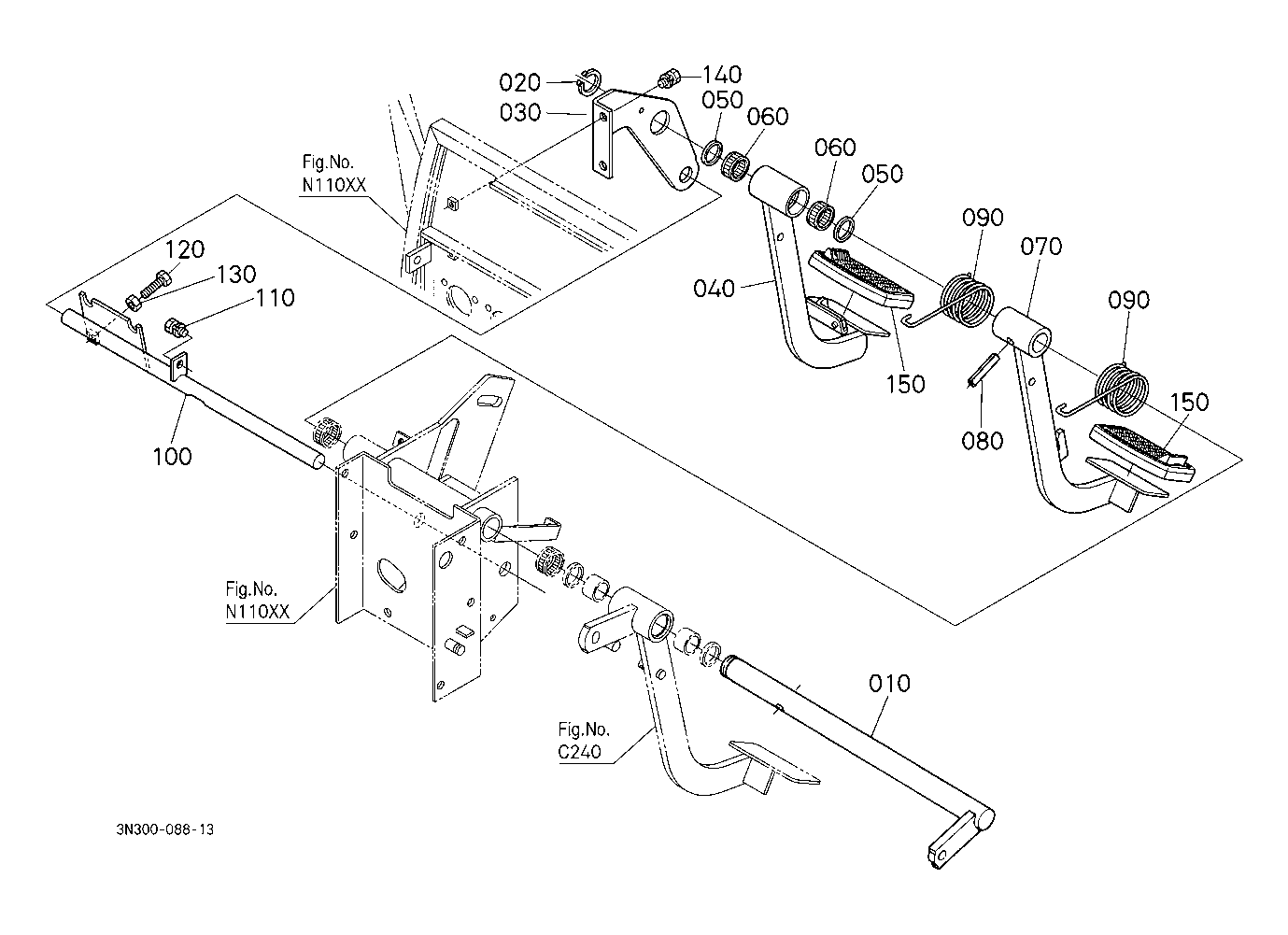

KUBOTA M105SDT CAB PARTS REAR AXLE BRAKE F23500 BRAKE PEDAL
