Ref	Part #	Item	Price
010	3N300-04210	TANK, FUEL (LH)	$961.59
020	3N300-04234	FRAME (LH)	$158.25
030	01123-70814	BOLT M8x1.25x14 mm	$0.99
040	04013-50080	WASHER, M8 PLAIN ***	$0.99
050	01774-71020	BOLT M10x1.25x20 mm	$1.31
060	3N300-04140	BAND	$57.89
070	3N300-04150	BAND	$55.16
080	02574-50100	NUT, M18 SELF-LOCKING	$3.20
090	04013-70100	WASHER,M10 PLAIN/FLAT	$0.99
100	34070-71390	NUT	$3.20
110	31351-18860	WASHER	$0.99
120	01754-70625	BOLT,FLANGE	$0.99
130	3N300-04291	ASSY CAP,FUEL TANK S/N <=10078	Call for price
130	3R600-04300	ASSY CAP, FUEL TANK	$29.82
140	T1060-42090	GASKET	$2.37
150	3N300-04300	GASKET	$6.61

Ref: 010 Part #: 3N300-04210 Price: $961.59

Item: TANK, FUEL (LH)

QTY:

Ref: 020 Part #: 3N300-04234 Price: $158.25

Item: FRAME (LH)

QTY:

Ref: 030 Part #: 01123-70814 Price: $0.99

Item: BOLT M8x1.25x14 mm

QTY:

Ref: 040 Part #: 04013-50080 Price: $0.99

Item: WASHER, M8 PLAIN ***

QTY:

Ref: 050 Part #: 01774-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 060 Part #: 3N300-04140 Price: $57.89

Item: BAND

QTY:

Ref: 070 Part #: 3N300-04150 Price: $55.16

Item: BAND

QTY:

Ref: 080 Part #: 02574-50100 Price: $3.20

Item: NUT, M18 SELF-LOCKING

QTY:

Ref: 090 Part #: 04013-70100 Price: $0.99

Item: WASHER,M10 PLAIN/FLAT

QTY:

Ref: 100 Part #: 34070-71390 Price: $3.20

Item: NUT

QTY:

Ref: 110 Part #: 31351-18860 Price: $0.99

Item: WASHER

QTY:

Ref: 120 Part #: 01754-70625 Price: $0.99

Item: BOLT,FLANGE

QTY:

Ref: 130 Part #: 3N300-04291 Price: Call for price

Item: ASSY CAP,FUEL TANK S/N <=10078

QTY:

Ref: 130 Part #: 3R600-04300 Price: $29.82

Item: ASSY CAP, FUEL TANK

QTY:

Ref: 140 Part #: T1060-42090 Price: $2.37

Item: GASKET

QTY:

Ref: 150 Part #: 3N300-04300 Price: $6.61

Item: GASKET

QTY:

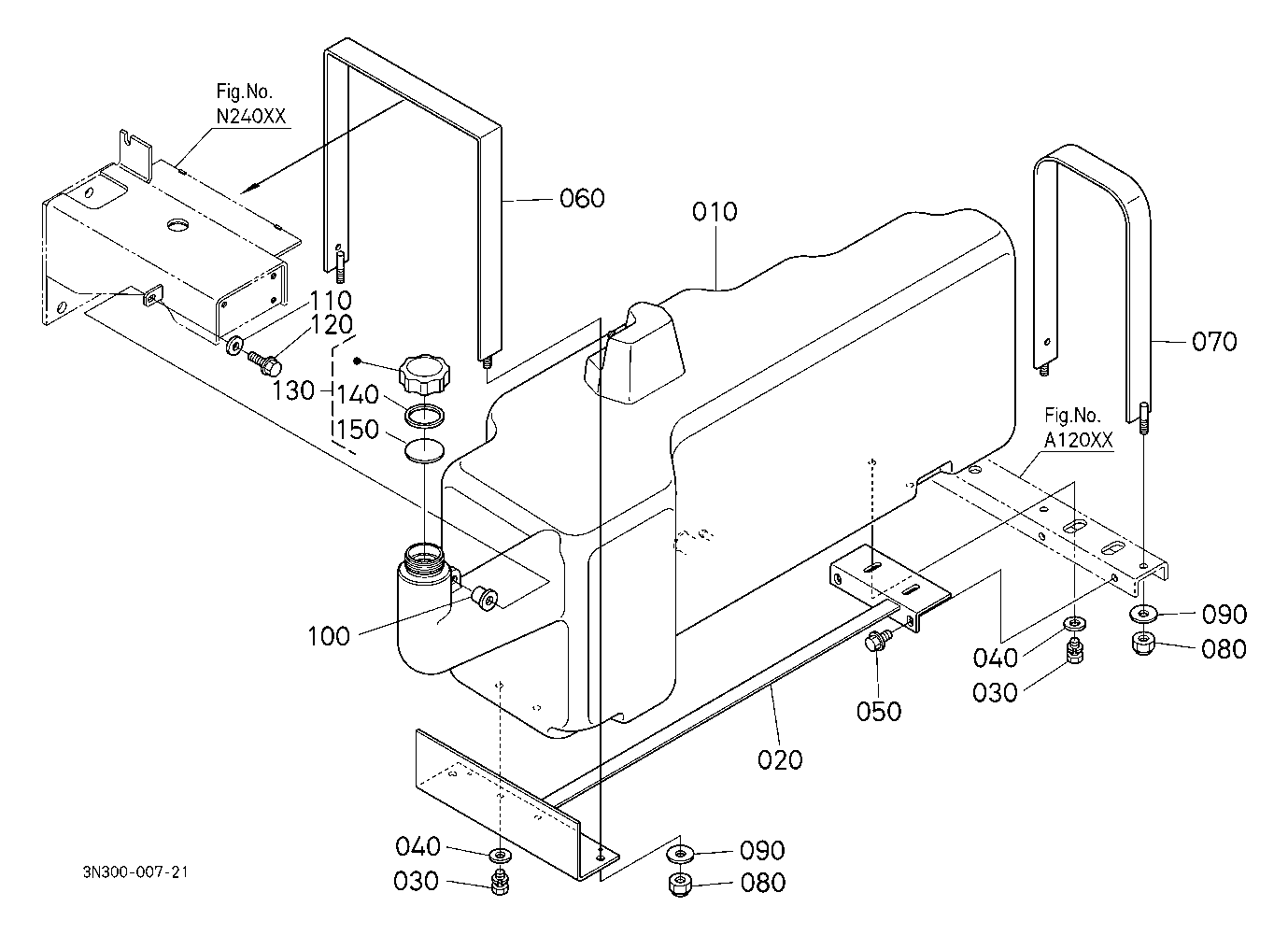

KUBOTA M108SHC PARTS FUEL SYSTEM A13000 FUEL TANK LH
