Ref	Part #	Item	Price
010	3T405-78504	ECU,MAIN *	$1,278.60
020	01754-50650	BOLT M6x1.0x50 mm ***	$3.11
030	3P300-55412	SWITCH, PTO	$100.15
040	3P300-75656	ASSY PANEL	$1,360.76
040	3P300-75656	ASSY PANEL	$1,360.76
050	3P300-76610	CASE UPPER	$207.51
060	3P300-76620	CASE , LOWER	$207.51
070	3P300-76630	LCD UNIT	$1,402.08
080	3P300-76640	SCREW	$6.15
090	3P300-75710	STAY	$50.90
100	03007-50610	SCREW, W/WASHER	$0.99
110	3P300-75730	FRAME	$8.99
120	03514-50514	SCREW, SELF TAPPING	$0.99
130	3T400-94200	ECU, SUB SWITCH	$989.63
140	01754-50640	BOLT M6x1.0x40 mm ***	$2.71
150	3F760-81740	LIGHTER	$69.70

Ref: 010 Part #: 3T405-78504 Price: $1,278.60

Item: ECU,MAIN *

QTY:

Ref: 020 Part #: 01754-50650 Price: $3.11

Item: BOLT M6x1.0x50 mm ***

QTY:

Ref: 030 Part #: 3P300-55412 Price: $100.15

Item: SWITCH, PTO

QTY:

Ref: 040 Part #: 3P300-75656 Price: $1,360.76

Item: ASSY PANEL

QTY:

Ref: 040 Part #: 3P300-75656 Price: $1,360.76

Item: ASSY PANEL

QTY:

Ref: 050 Part #: 3P300-76610 Price: $207.51

Item: CASE UPPER

QTY:

Ref: 060 Part #: 3P300-76620 Price: $207.51

Item: CASE , LOWER

QTY:

Ref: 070 Part #: 3P300-76630 Price: $1,402.08

Item: LCD UNIT

QTY:

Ref: 080 Part #: 3P300-76640 Price: $6.15

Item: SCREW

QTY:

Ref: 090 Part #: 3P300-75710 Price: $50.90

Item: STAY

QTY:

Ref: 100 Part #: 03007-50610 Price: $0.99

Item: SCREW, W/WASHER

QTY:

Ref: 110 Part #: 3P300-75730 Price: $8.99

Item: FRAME

QTY:

Ref: 120 Part #: 03514-50514 Price: $0.99

Item: SCREW, SELF TAPPING

QTY:

Ref: 130 Part #: 3T400-94200 Price: $989.63

Item: ECU, SUB SWITCH

QTY:

Ref: 140 Part #: 01754-50640 Price: $2.71

Item: BOLT M6x1.0x40 mm ***

QTY:

Ref: 150 Part #: 3F760-81740 Price: $69.70

Item: LIGHTER

QTY:

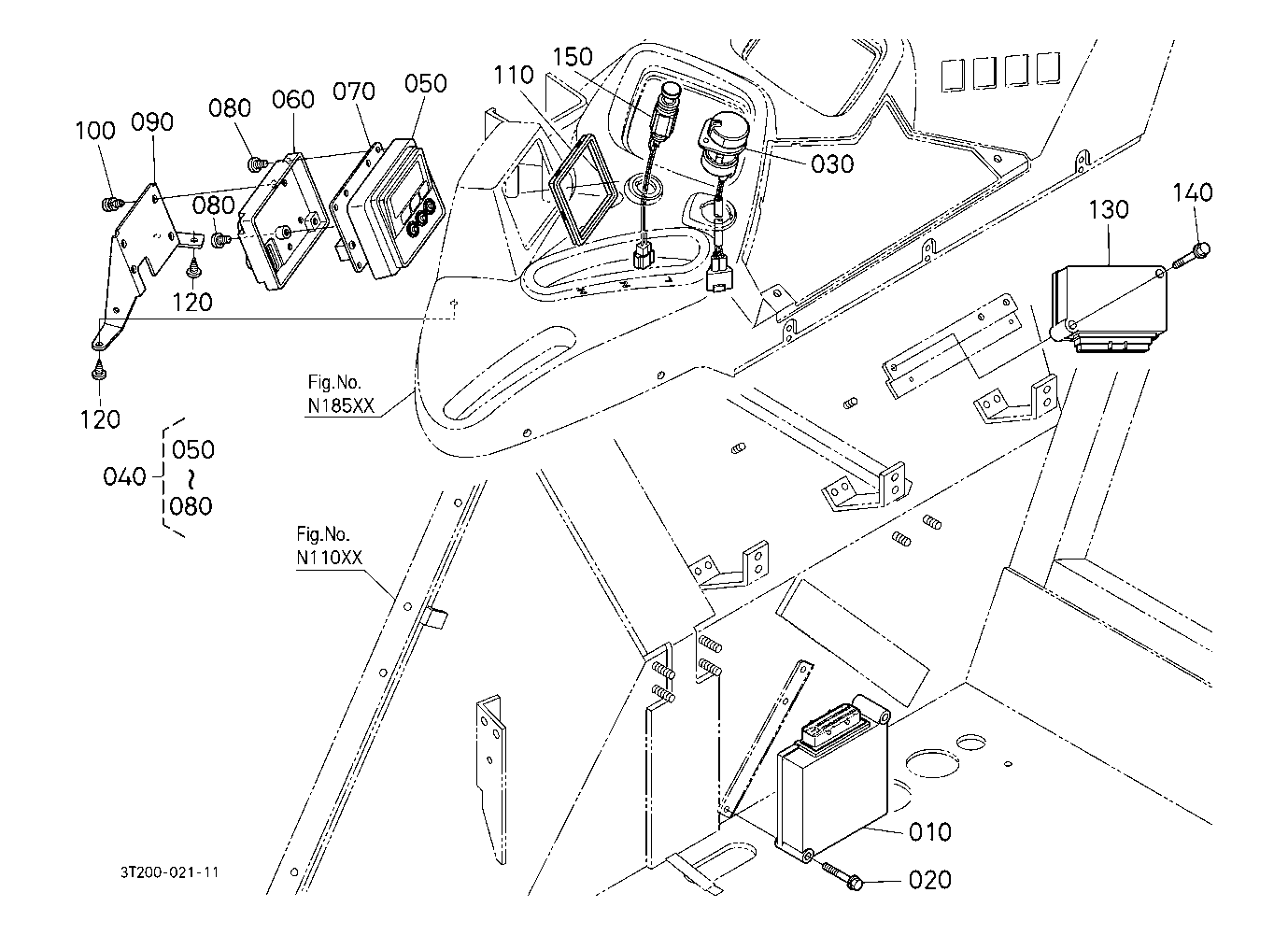

KUBOTA M126XDTC PARTS ELECTRICAL SYSTEM B18000 PTO TACHOMETER SPEEDOMETER
