KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3P903-12322	FLANGE, MUFFLER	$202.11
020	16544-12230	GASKET	$7.00
030	02116-50100	NUT, HEX M10 ***	$0.99
040	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
050	3T400-12110	MUFFLER	$643.97
060	3N300-12230	GASKET, MUFFLER	$44.22
070	01517-51025	STUD,BOLT ***	$1.32
080	02771-50100	NUT, FLANGE M10X1.25 4T ***	$1.94
090	3T400-12212	PIPE, MUFFLER	$178.40
100	3T400-12230	GASKET, MUFFLER	$54.01
110	01774-51020	BOLT M10x1.25x20 mm ***	$2.21
120	3T400-12122	INSULATION, HEAT	$116.14
130	01754-50616	BOLT M6x1.0x16 mm ***	$1.55

Ref: 010 Part #: 3P903-12322 Price: $202.11

Item: FLANGE, MUFFLER

QTY:

Ref: 020 Part #: 16544-12230 Price: $7.00

Item: GASKET

QTY:

Ref: 030 Part #: 02116-50100 Price: $0.99

Item: NUT, HEX M10 ***

QTY:

Ref: 040 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 050 Part #: 3T400-12110 Price: $643.97

Item: MUFFLER

QTY:

Ref: 060 Part #: 3N300-12230 Price: $44.22

Item: GASKET, MUFFLER

QTY:

Ref: 070 Part #: 01517-51025 Price: $1.32

Item: STUD,BOLT ***

QTY:

Ref: 080 Part #: 02771-50100 Price: $1.94

Item: NUT, FLANGE M10X1.25 4T ***

QTY:

Ref: 090 Part #: 3T400-12212 Price: $178.40

Item: PIPE, MUFFLER

QTY:

Ref: 100 Part #: 3T400-12230 Price: $54.01

Item: GASKET, MUFFLER

QTY:

Ref: 110 Part #: 01774-51020 Price: $2.21

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 120 Part #: 3T400-12122 Price: $116.14

Item: INSULATION, HEAT

QTY:

Ref: 130 Part #: 01754-50616 Price: $1.55

Item: BOLT M6x1.0x16 mm ***

QTY:

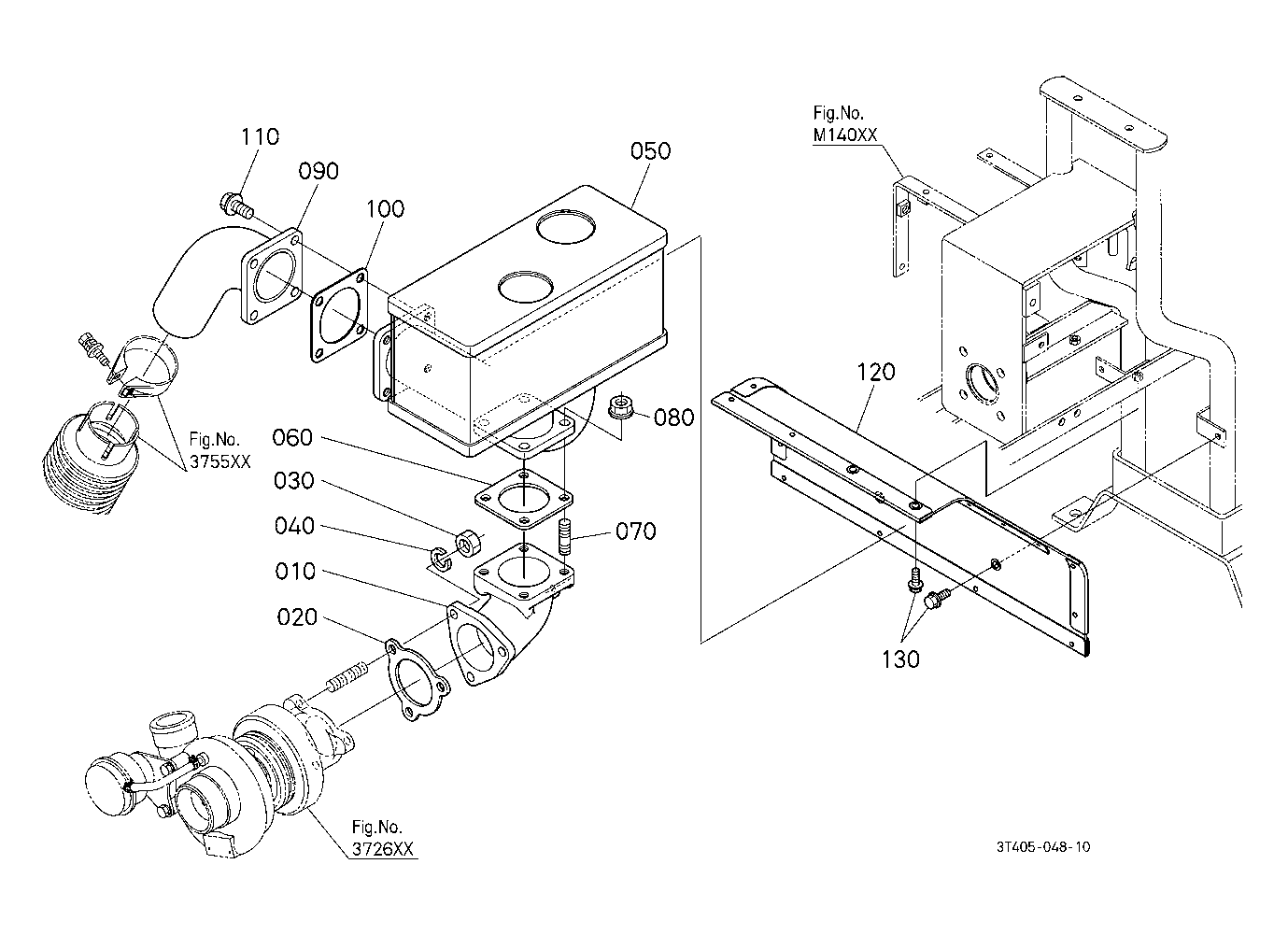

KUBOTA M126XDTPC PARTS ENGINE 375000 MUFFLER
