Ref	Part #	Item	Price
010	33750-43313	CASE, BEVEL GEAR	$938.47
020	04811-51100	O-RING	$8.59
030	01779-71245	BOLT M12x1.25x45 mm	$3.90
040	01779-51250	BOLT, UBS	$4.42
050	36340-43170	PIPE, KNOCK	$8.94
060	3P300-40370	RETAINER	$188.70
070	66591-51130	PLUG 1	$0.99
080	01133-51025	BOLT M10x1.25x25 mm ***	$1.55
090	01173-52040	BOLT M20x1.5x40 mm	$4.85
100	02172-50200	NUT	$1.94
110	04717-02000	WASHER, SEAL W/RUBBER	$2.23
120	3P300-43380	ASSY SUPPORT	$432.49
130	35533-43400	BUSH	$62.03
140	33750-43350	SEAL,OIL (VC65X80X5)	$16.09
150	06613-10675	NIPPLE, GREASE	$2.34
170	3N300-43330	WASHER, THRUST	$11.00
180	35230-43500	STUD, LINK BRACKET	$2.74
190	04512-50120	WASHER, SPRING LOCK ***	$1.70
200	35340-27360	NUT	$1.74
210	3F290-43180	BOLT	$9.78
220	35533-43170	PIPE, KNOCK	$8.62
230	33973-40422	COVER, SWITCH	$47.03
240, 260	01133-51016	BOLT M10x1.25x16 mm ***	$1.31
250	33870-40400	STAY	$46.79

Ref: 010 Part #: 33750-43313 Price: $938.47

Item: CASE, BEVEL GEAR

QTY:

Ref: 020 Part #: 04811-51100 Price: $8.59

Item: O-RING

QTY:

Ref: 030 Part #: 01779-71245 Price: $3.90

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 040 Part #: 01779-51250 Price: $4.42

Item: BOLT, UBS

QTY:

Ref: 050 Part #: 36340-43170 Price: $8.94

Item: PIPE, KNOCK

QTY:

Ref: 060 Part #: 3P300-40370 Price: $188.70

Item: RETAINER

QTY:

Ref: 070 Part #: 66591-51130 Price: $0.99

Item: PLUG 1

QTY:

Ref: 080 Part #: 01133-51025 Price: $1.55

Item: BOLT M10x1.25x25 mm ***

QTY:

Ref: 090 Part #: 01173-52040 Price: $4.85

Item: BOLT M20x1.5x40 mm

QTY:

Ref: 100 Part #: 02172-50200 Price: $1.94

Item: NUT

QTY:

Ref: 110 Part #: 04717-02000 Price: $2.23

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 120 Part #: 3P300-43380 Price: $432.49

Item: ASSY SUPPORT

QTY:

Ref: 130 Part #: 35533-43400 Price: $62.03

Item: BUSH

QTY:

Ref: 140 Part #: 33750-43350 Price: $16.09

Item: SEAL,OIL (VC65X80X5)

QTY:

Ref: 150 Part #: 06613-10675 Price: $2.34

Item: NIPPLE, GREASE

QTY:

Ref: 170 Part #: 3N300-43330 Price: $11.00

Item: WASHER, THRUST

QTY:

Ref: 180 Part #: 35230-43500 Price: $2.74

Item: STUD, LINK BRACKET

QTY:

Ref: 190 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 200 Part #: 35340-27360 Price: $1.74

Item: NUT

QTY:

Ref: 210 Part #: 3F290-43180 Price: $9.78

Item: BOLT

QTY:

Ref: 220 Part #: 35533-43170 Price: $8.62

Item: PIPE, KNOCK

QTY:

Ref: 230 Part #: 33973-40422 Price: $47.03

Item: COVER, SWITCH

QTY:

Ref: 240260 Part #: 01133-51016 Price: $1.31

Item: BOLT M10x1.25x16 mm ***

QTY:

Ref: 250 Part #: 33870-40400 Price: $46.79

Item: STAY

QTY:

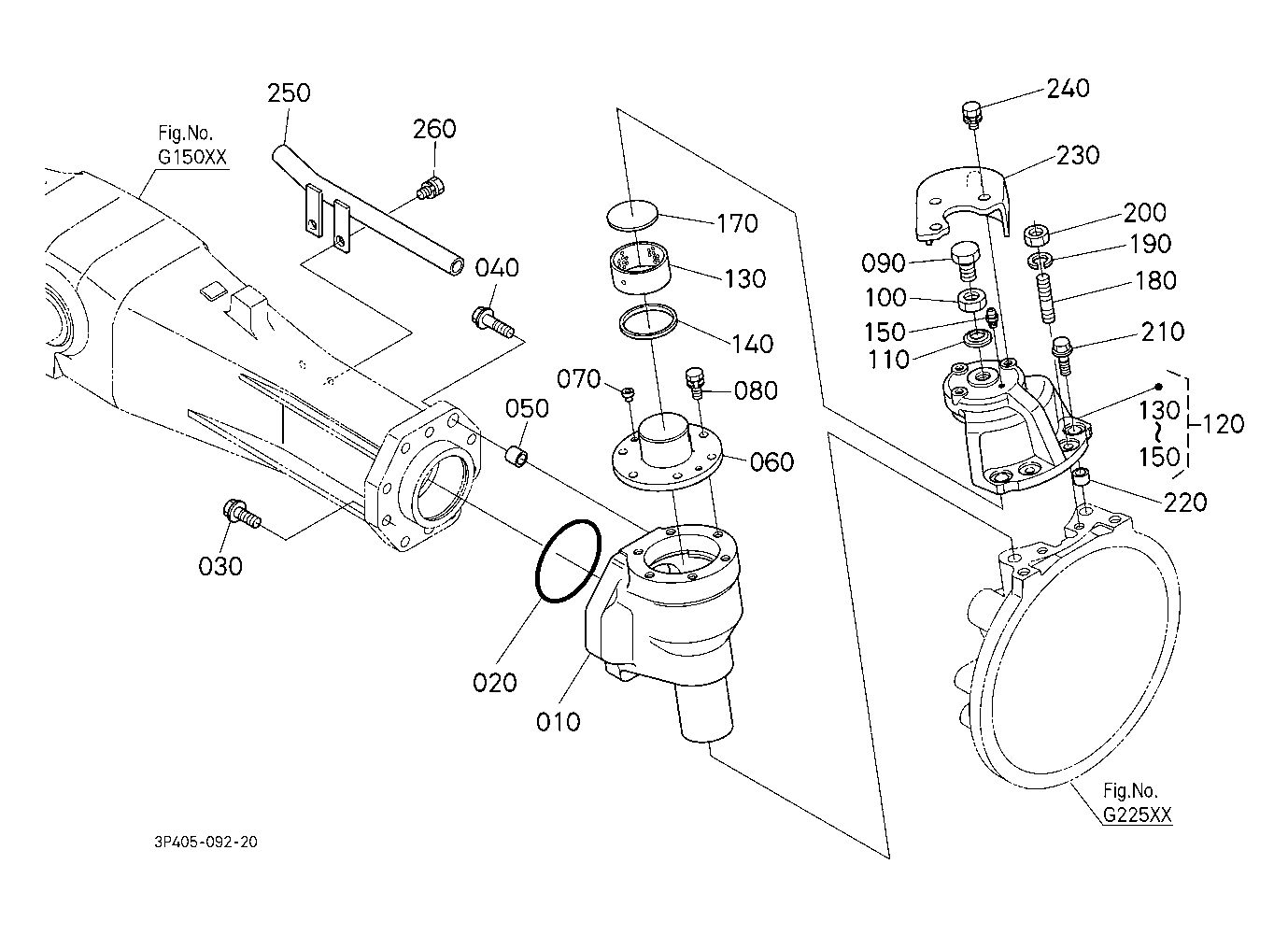

KUBOTA M126XDTPC PARTS FRONT AXLE CHASSIS G22200 BEVEL GEAR CASE LH
