Ref	Part #	Item	Price
010	YW409-00103	ASSY VALVE	$6,031.79
010	YW409-00103	ASSY VALVE	$6,031.79
020	31351-37930	SEAT, RELIEF (VALVE)	$14.89
030	04817-05160	O RING	$1.32
040	31351-37950	SHIM 0.4	$0.99
040	31351-37960	SHIM 0.2	$0.99
040	31351-37970	SHIM 0.1	$0.99
050	YW226-01120	PLUG	$45.93
060	04817-00180	O-RING ***	$1.49
070	YW350-00120	SEAT, CHECK	$23.45
080	YT145-00630	POPPET	$20.55
090	YT859-51560	SPRING, CHECK	$3.23
100	YW409-00240	PLUG	$38.54
110	04817-05120	O-RING	$1.00
120	YW409-00503	COMP VALVE	$575.49
130	YW014-05220	SPRING, DISC	$40.82
140	YW409-00372	GASKET	$9.15
150	YW409-00380	PLATE, SUSPENTION	$89.77
160	YW414-00320	ORIFICE	$6.47
170	T1063-65620	CONNECTOR, 8P	$37.25
180	04816-00180	O-RING	$1.32
190	04612-00220	CIR-CLIP, EXTERNAL	$0.99
200	YR796-00210	ORIFICE	$24.66
210	---- -	ORIFICE	Call for price
220	01023-50616	BOLT M6x1.0x16 mm ***	$0.99

Ref: 010 Part #: YW409-00103 Price: $6,031.79

Item: ASSY VALVE

QTY:

Ref: 010 Part #: YW409-00103 Price: $6,031.79

Item: ASSY VALVE

QTY:

Ref: 020 Part #: 31351-37930 Price: $14.89

Item: SEAT, RELIEF (VALVE)

QTY:

Ref: 030 Part #: 04817-05160 Price: $1.32

Item: O RING

QTY:

Ref: 040 Part #: 31351-37950 Price: $0.99

Item: SHIM 0.4

QTY:

Ref: 040 Part #: 31351-37960 Price: $0.99

Item: SHIM 0.2

QTY:

Ref: 040 Part #: 31351-37970 Price: $0.99

Item: SHIM 0.1

QTY:

Ref: 050 Part #: YW226-01120 Price: $45.93

Item: PLUG

QTY:

Ref: 060 Part #: 04817-00180 Price: $1.49

Item: O-RING ***

QTY:

Ref: 070 Part #: YW350-00120 Price: $23.45

Item: SEAT, CHECK

QTY:

Ref: 080 Part #: YT145-00630 Price: $20.55

Item: POPPET

QTY:

Ref: 090 Part #: YT859-51560 Price: $3.23

Item: SPRING, CHECK

QTY:

Ref: 100 Part #: YW409-00240 Price: $38.54

Item: PLUG

QTY:

Ref: 110 Part #: 04817-05120 Price: $1.00

Item: O-RING

QTY:

Ref: 120 Part #: YW409-00503 Price: $575.49

Item: COMP VALVE

QTY:

Ref: 130 Part #: YW014-05220 Price: $40.82

Item: SPRING, DISC

QTY:

Ref: 140 Part #: YW409-00372 Price: $9.15

Item: GASKET

QTY:

Ref: 150 Part #: YW409-00380 Price: $89.77

Item: PLATE, SUSPENTION

QTY:

Ref: 160 Part #: YW414-00320 Price: $6.47

Item: ORIFICE

QTY:

Ref: 170 Part #: T1063-65620 Price: $37.25

Item: CONNECTOR, 8P

QTY:

Ref: 180 Part #: 04816-00180 Price: $1.32

Item: O-RING

QTY:

Ref: 190 Part #: 04612-00220 Price: $0.99

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 200 Part #: YR796-00210 Price: $24.66

Item: ORIFICE

QTY:

Ref: 210 Part #: ---- - Price: Call for price

Item: ORIFICE

QTY:

Ref: 220 Part #: 01023-50616 Price: $0.99

Item: BOLT M6x1.0x16 mm ***

QTY:

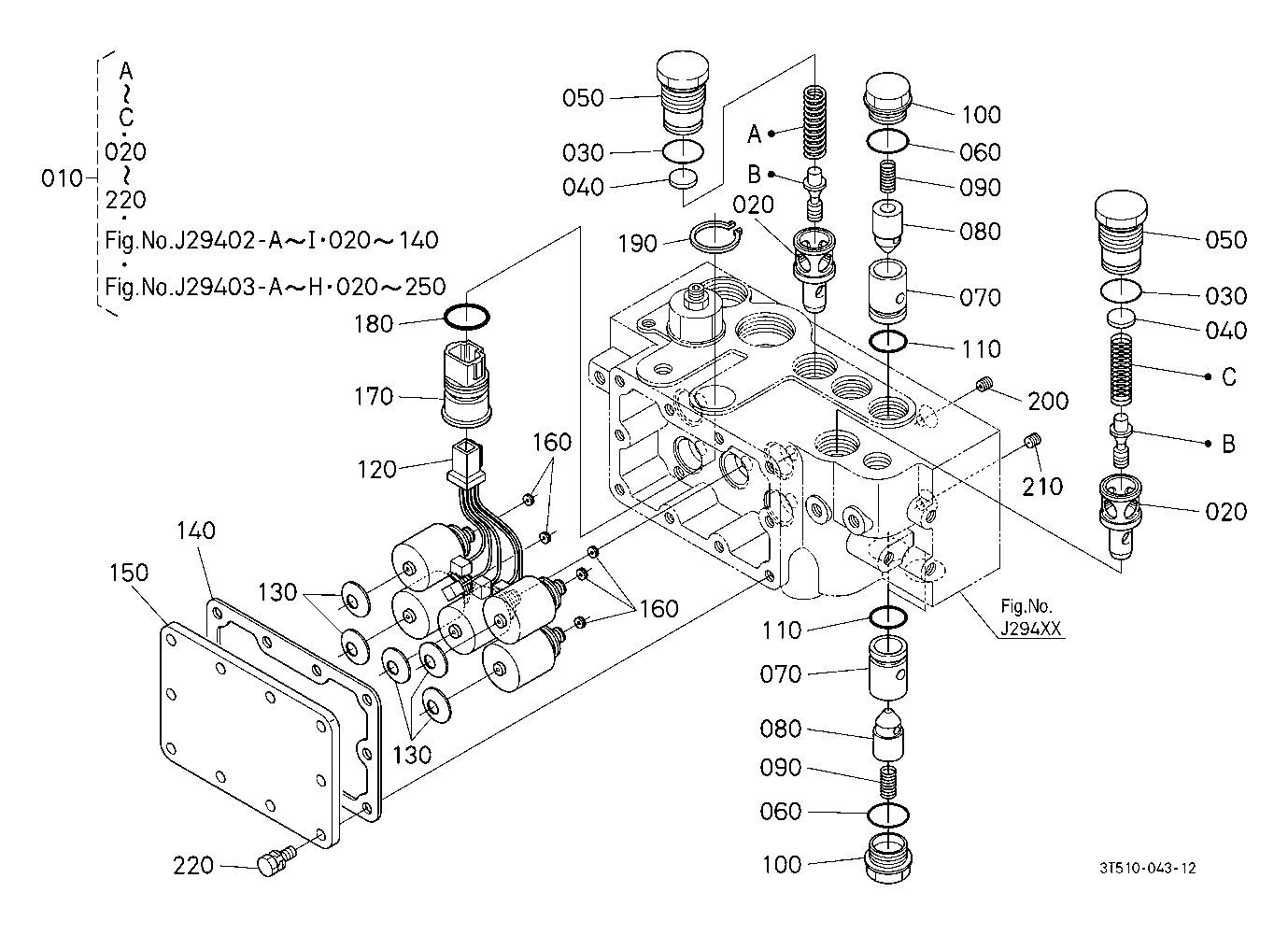

KUBOTA M135XDTC DTSC PARTS HYDRAULIC SYSTEM J29401 FRONT SUSPENSION VALVE (RELIEF CHECK) [COMPONENT PARTS] [DTSC]
