Ref	Part #	Item	Price
001	36200-32110	SUPPORT, BEARING DIFF ***	$150.23
002	36200-32120	SUPPORT,DIFF BEARING ***	$156.14
003	36200-32130	SHIM 0.1MM ***	$1.98
004	36200-32140	SHIM 0.3MM	$4.87
005	36200-32150	SHIM 0.5MM ***	$1.67
006	01173-51030	BOLT M10x1.25x30 mm ***	$1.17
007	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
008	08711-30209	BEARING TAPER ROLL45/85	$41.81
009	08711-30211	BEARING TAPER ROLL55/100 ***	$44.35
010	H3540-32200	ASSY DIFFERENTIAL ***	$962.46
011	33400-32714	CASE, DIFF***	$1,967.88
012	33400-32722	DIFF SIDE GEAR 1 ***	$658.37
013	33400-32732	DIFF SDIE GEAR 2 ***	$351.00
014	35450-97350	ASSY KIT REPAIR, DIFFERENTIAL ***	$570.04
016	33400-32760	BUSHING, DIFF PINION	$125.78
017	33400-32773	SHAFT**	$63.18
018	33251-32782	WASHER ***	$33.90
019	33251-32792	WASHER ***	$10.10
020	33400-32810	WASHER ***	$18.14
021	33251-32820	KEY	$4.66
022	33251-32223	BOLT ***	$20.37
023	01176-51228	BOLT	$0.99
024	02176-50120	NUT, HEX M12x1.25 ***	$0.99
025	36200-32080	WASHER ***	$19.30
026	33400-32850	SHIFTER L	$989.71
027	36200-32880	FORK	$135.33
028	32590-26600	ASSY FORK DIFF LOCK ***	$169.90
029	33251-32930	SPRING	$16.94
030	36200-32940	PEDAL,DIFF LOCK ***	$29.08
031	05411-00636	PIN, SPRING	$1.00
032	09500-16287	SEAL, OIL	$5.24
033	06331-35020	PLUG ***	$3.34
034	04717-02000	WASHER, SEAL W/RUBBER	$2.23
035	01173-51435	BOLT M14x1.5x35 mm ***	$2.01
036	02172-50140	NUT ***	$1.00
037	36200-32950	SHIM 1.0MM	$1.72

Ref: 001 Part #: 36200-32110 Price: $150.23

Item: SUPPORT, BEARING DIFF ***

QTY:

Ref: 002 Part #: 36200-32120 Price: $156.14

Item: SUPPORT,DIFF BEARING ***

QTY:

Ref: 003 Part #: 36200-32130 Price: $1.98

Item: SHIM 0.1MM ***

QTY:

Ref: 004 Part #: 36200-32140 Price: $4.87

Item: SHIM 0.3MM

QTY:

Ref: 005 Part #: 36200-32150 Price: $1.67

Item: SHIM 0.5MM ***

QTY:

Ref: 006 Part #: 01173-51030 Price: $1.17

Item: BOLT M10x1.25x30 mm ***

QTY:

Ref: 007 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 008 Part #: 08711-30209 Price: $41.81

Item: BEARING TAPER ROLL45/85

QTY:

Ref: 009 Part #: 08711-30211 Price: $44.35

Item: BEARING TAPER ROLL55/100 ***

QTY:

Ref: 010 Part #: H3540-32200 Price: $962.46

Item: ASSY DIFFERENTIAL ***

QTY:

Ref: 011 Part #: 33400-32714 Price: $1,967.88

Item: CASE, DIFF***

QTY:

Ref: 012 Part #: 33400-32722 Price: $658.37

Item: DIFF SIDE GEAR 1 ***

QTY:

Ref: 013 Part #: 33400-32732 Price: $351.00

Item: DIFF SDIE GEAR 2 ***

QTY:

Ref: 014 Part #: 35450-97350 Price: $570.04

Item: ASSY KIT REPAIR, DIFFERENTIAL ***

QTY:

Ref: 016 Part #: 33400-32760 Price: $125.78

Item: BUSHING, DIFF PINION

QTY:

Ref: 017 Part #: 33400-32773 Price: $63.18

Item: SHAFT**

QTY:

Ref: 018 Part #: 33251-32782 Price: $33.90

Item: WASHER ***

QTY:

Ref: 019 Part #: 33251-32792 Price: $10.10

Item: WASHER ***

QTY:

Ref: 020 Part #: 33400-32810 Price: $18.14

Item: WASHER ***

QTY:

Ref: 021 Part #: 33251-32820 Price: $4.66

Item: KEY

QTY:

Ref: 022 Part #: 33251-32223 Price: $20.37

Item: BOLT ***

QTY:

Ref: 023 Part #: 01176-51228 Price: $0.99

Item: BOLT

QTY:

Ref: 024 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 025 Part #: 36200-32080 Price: $19.30

Item: WASHER ***

QTY:

Ref: 026 Part #: 33400-32850 Price: $989.71

Item: SHIFTER L

QTY:

Ref: 027 Part #: 36200-32880 Price: $135.33

Item: FORK

QTY:

Ref: 028 Part #: 32590-26600 Price: $169.90

Item: ASSY FORK DIFF LOCK ***

QTY:

Ref: 029 Part #: 33251-32930 Price: $16.94

Item: SPRING

QTY:

Ref: 030 Part #: 36200-32940 Price: $29.08

Item: PEDAL,DIFF LOCK ***

QTY:

Ref: 031 Part #: 05411-00636 Price: $1.00

Item: PIN, SPRING

QTY:

Ref: 032 Part #: 09500-16287 Price: $5.24

Item: SEAL, OIL

QTY:

Ref: 033 Part #: 06331-35020 Price: $3.34

Item: PLUG ***

QTY:

Ref: 034 Part #: 04717-02000 Price: $2.23

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 035 Part #: 01173-51435 Price: $2.01

Item: BOLT M14x1.5x35 mm ***

QTY:

Ref: 036 Part #: 02172-50140 Price: $1.00

Item: NUT ***

QTY:

Ref: 037 Part #: 36200-32950 Price: $1.72

Item: SHIM 1.0MM

QTY:

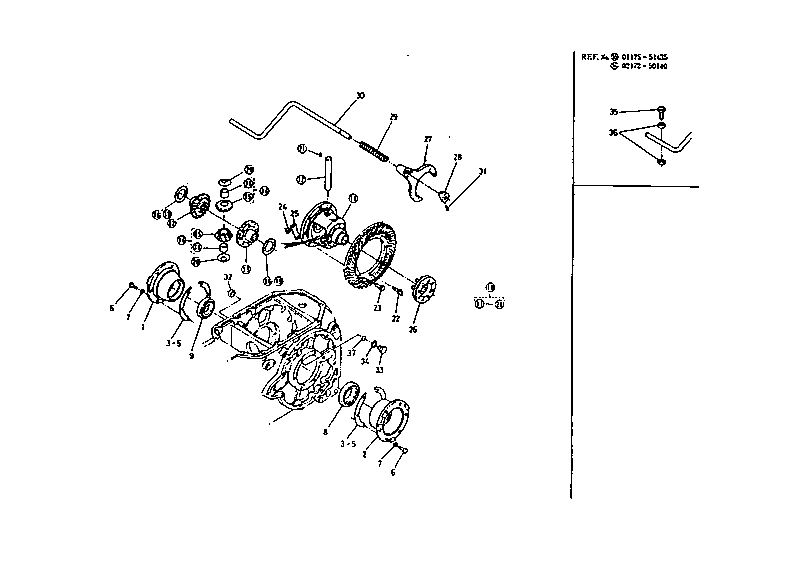

KUBOTA M4000 PARTS TRANSMISSION 360000 DIFF SUPPORT
