KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	35513-31410	COLLAR 1	$11.57
020	35420-31410	COUPLING	$108.90
030	35513-31420	COLLAR 2	$14.40
040, 140	08101-06208	BEARING,BALL RADIAL 40/80 ***	$22.31
050	35533-32390	GEAR 20-40 ***	$664.81
060	38260-26790	BRG BALL RAD35/80	$38.81
070	08822-53216	BRG NDL ROLLER25/32	$10.60
080	35502-32280	SHAFT,AUX.S-CHANGE ***	$113.25
080	35532-32280	SHAFT,HI-LO SHIFT	$206.83
090	08824-04517	BRG NDL ROLLER40/45	$9.58
100	35502-32300	RING, SNAP ***	$3.47
110	35502-32340	GEAR,43	$348.48
120	32530-21750	SHIFTER	$110.35
130	36330-28663	COLLAR, THRUST	$25.18
150	04611-00800	CIR-CLIP, INTERNAL	$8.83
160	35533-32300	CIR-CLIP, EXTERNAL	$4.57
170	36200-32315	SUPPORT, BEARING	$316.80
170	36200-32316	SUPPORT ***	$332.62
170	36200-32317	SUPPORT, BEARING ***	$316.93
180	05012-01020	PIN, STRAIGHT	$1.00
190	01133-51245	BOLT M12x1.25x45 mm	$1.74
200	01133-51235	BOLT M12x1.25x35 mm ***	$1.63

Ref: 010 Part #: 35513-31410 Price: $11.57

Item: COLLAR 1

QTY:

Ref: 020 Part #: 35420-31410 Price: $108.90

Item: COUPLING

QTY:

Ref: 030 Part #: 35513-31420 Price: $14.40

Item: COLLAR 2

QTY:

Ref: 040140 Part #: 08101-06208 Price: $22.31

Item: BEARING,BALL RADIAL 40/80 ***

QTY:

Ref: 050 Part #: 35533-32390 Price: $664.81

Item: GEAR 20-40 ***

QTY:

Ref: 060 Part #: 38260-26790 Price: $38.81

Item: BRG BALL RAD35/80

QTY:

Ref: 070 Part #: 08822-53216 Price: $10.60

Item: BRG NDL ROLLER25/32

QTY:

Ref: 080 Part #: 35502-32280 Price: $113.25

Item: SHAFT,AUX.S-CHANGE ***

QTY:

Ref: 080 Part #: 35532-32280 Price: $206.83

Item: SHAFT,HI-LO SHIFT

QTY:

Ref: 090 Part #: 08824-04517 Price: $9.58

Item: BRG NDL ROLLER40/45

QTY:

Ref: 100 Part #: 35502-32300 Price: $3.47

Item: RING, SNAP ***

QTY:

Ref: 110 Part #: 35502-32340 Price: $348.48

Item: GEAR,43

QTY:

Ref: 120 Part #: 32530-21750 Price: $110.35

Item: SHIFTER

QTY:

Ref: 130 Part #: 36330-28663 Price: $25.18

Item: COLLAR, THRUST

QTY:

Ref: 150 Part #: 04611-00800 Price: $8.83

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 160 Part #: 35533-32300 Price: $4.57

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 170 Part #: 36200-32315 Price: $316.80

Item: SUPPORT, BEARING

QTY:

Ref: 170 Part #: 36200-32316 Price: $332.62

Item: SUPPORT ***

QTY:

Ref: 170 Part #: 36200-32317 Price: $316.93

Item: SUPPORT, BEARING ***

QTY:

Ref: 180 Part #: 05012-01020 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 190 Part #: 01133-51245 Price: $1.74

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 200 Part #: 01133-51235 Price: $1.63

Item: BOLT M12x1.25x35 mm ***

QTY:

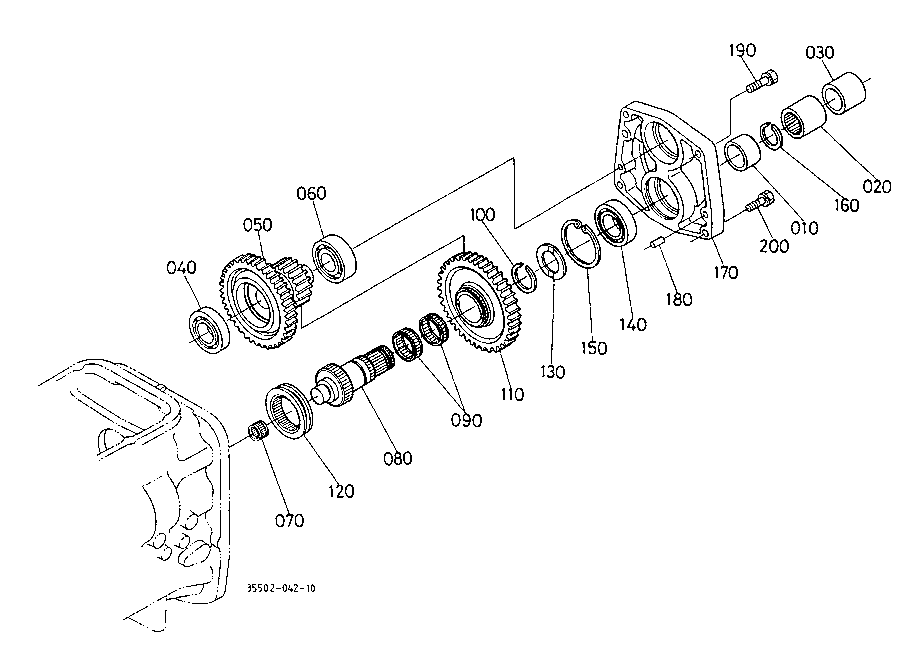

KUBOTA M4030SU PARTS TRANSMISSION T06200 RANGE SHIFT SHAFT
