Ref	Part #	Item	Price
010	36330-91230	ASSY ROD,LIFT RH ***	$498.83
020	36330-91240	CASE, RH LIFT ROD	$232.78
030	36330-91280	ADJUST.SHAFT COMP ***	$211.76
040	08401-51106	BEARING THRUST BALL32/47	$24.10
050	36330-91203	ASSY PINION,LIFT ROD ***	$121.99
060	36330-91330	PINION, RH LIFT ROD	$98.79
070	36330-91392	SHAFT,LIFT ROD RH ***	$17.71
080	05411-00520	PIN, SPRING	$0.99
090	36330-91300	ROD RH.SLEEVE COMP. ***	$62.66
100	01133-51030	BOLT M10x1.25x30 mm *	$1.68
110	06613-20010	NIPPLE, GREASE	$1.72
120, 330	35535-91260	LOWER LIFT ROD ***	$152.40
130, 340	36330-91360	PLUG	$3.34
140, 350	06613-10010	NIPPLE, GREASE	$2.34
150	36330-91372	ADJUSTIN SUPPORT ***	$46.75
160	08511-01815	BUSHING (CREEP SPEED KIT)	$4.65
170	36330-91323	HANDLE, RH LIFT ROD	$31.27
180	05411-00525	PIN, SPRING *	$0.99
190	36330-91270	SPRING, HANDLE	$9.89
200, 260	36330-91510	JOINT, CROSS	$132.52
210, 270	36330-91530	PIN, LIFT ROD	$27.81
220, 280, 310	05511-50535	PIN, SPLIT ***	$0.99
230	35535-91400	ASSY ROD, LIFT LH ***	$252.20
240	36330-91460	ROD, LIFT UPPER LH (OLD TYPE) *	$198.46
250	36330-91432	LFT.LH.ROD ***	$118.95
290	36330-91470	PIN, ADJUSTING	$36.45
300, 370, 390	33251-91860	PIN, LOCK	$7.92
320	04011-50180	WASHER, FLAT 18MM (19MM IDX34MM OD) ***	$0.99
360	35595-91520	PIN, LIFT ROD	$42.26
380	36330-91540	LFT.ROD PIN	$31.18

Ref: 010 Part #: 36330-91230 Price: $498.83

Item: ASSY ROD,LIFT RH ***

QTY:

Ref: 020 Part #: 36330-91240 Price: $232.78

Item: CASE, RH LIFT ROD

QTY:

Ref: 030 Part #: 36330-91280 Price: $211.76

Item: ADJUST.SHAFT COMP ***

QTY:

Ref: 040 Part #: 08401-51106 Price: $24.10

Item: BEARING THRUST BALL32/47

QTY:

Ref: 050 Part #: 36330-91203 Price: $121.99

Item: ASSY PINION,LIFT ROD ***

QTY:

Ref: 060 Part #: 36330-91330 Price: $98.79

Item: PINION, RH LIFT ROD

QTY:

Ref: 070 Part #: 36330-91392 Price: $17.71

Item: SHAFT,LIFT ROD RH ***

QTY:

Ref: 080 Part #: 05411-00520 Price: $0.99

Item: PIN, SPRING

QTY:

Ref: 090 Part #: 36330-91300 Price: $62.66

Item: ROD RH.SLEEVE COMP. ***

QTY:

Ref: 100 Part #: 01133-51030 Price: $1.68

Item: BOLT M10x1.25x30 mm *

QTY:

Ref: 110 Part #: 06613-20010 Price: $1.72

Item: NIPPLE, GREASE

QTY:

Ref: 120330 Part #: 35535-91260 Price: $152.40

Item: LOWER LIFT ROD ***

QTY:

Ref: 130340 Part #: 36330-91360 Price: $3.34

Item: PLUG

QTY:

Ref: 140350 Part #: 06613-10010 Price: $2.34

Item: NIPPLE, GREASE

QTY:

Ref: 150 Part #: 36330-91372 Price: $46.75

Item: ADJUSTIN SUPPORT ***

QTY:

Ref: 160 Part #: 08511-01815 Price: $4.65

Item: BUSHING (CREEP SPEED KIT)

QTY:

Ref: 170 Part #: 36330-91323 Price: $31.27

Item: HANDLE, RH LIFT ROD

QTY:

Ref: 180 Part #: 05411-00525 Price: $0.99

Item: PIN, SPRING *

QTY:

Ref: 190 Part #: 36330-91270 Price: $9.89

Item: SPRING, HANDLE

QTY:

Ref: 200260 Part #: 36330-91510 Price: $132.52

Item: JOINT, CROSS

QTY:

Ref: 210270 Part #: 36330-91530 Price: $27.81

Item: PIN, LIFT ROD

QTY:

Ref: 220280310 Part #: 05511-50535 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 230 Part #: 35535-91400 Price: $252.20

Item: ASSY ROD, LIFT LH ***

QTY:

Ref: 240 Part #: 36330-91460 Price: $198.46

Item: ROD, LIFT UPPER LH (OLD TYPE) *

QTY:

Ref: 250 Part #: 36330-91432 Price: $118.95

Item: LFT.LH.ROD ***

QTY:

Ref: 290 Part #: 36330-91470 Price: $36.45

Item: PIN, ADJUSTING

QTY:

Ref: 300370390 Part #: 33251-91860 Price: $7.92

Item: PIN, LOCK

QTY:

Ref: 320 Part #: 04011-50180 Price: $0.99

Item: WASHER, FLAT 18MM (19MM IDX34MM OD) ***

QTY:

Ref: 360 Part #: 35595-91520 Price: $42.26

Item: PIN, LIFT ROD

QTY:

Ref: 380 Part #: 36330-91540 Price: $31.18

Item: LFT.ROD PIN

QTY:

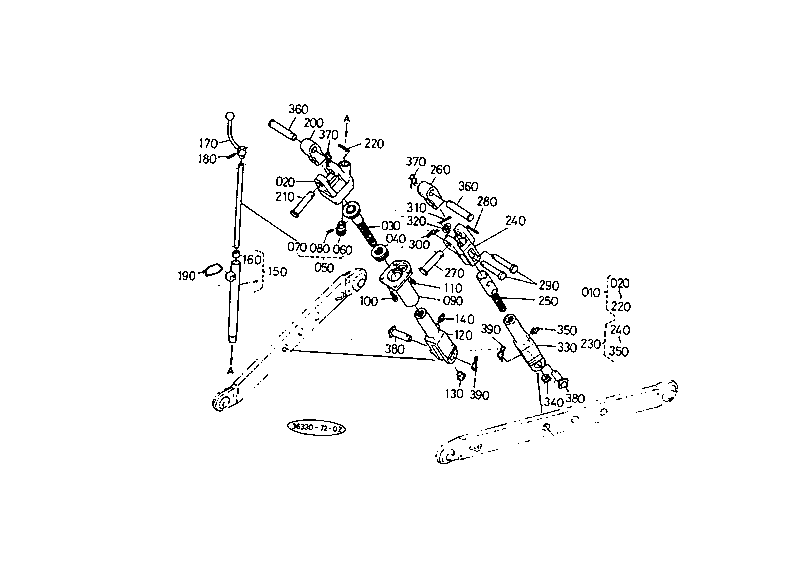

KUBOTA M4950DT PARTS HYDRAULIC SYSTEM T07000 3-POINT LINKAGE 2
