Ref	Part #	Item	Price
010	3C043-21413	GEARCASE	$980.99
020, 050	05012-01018	PIN, STRAIGHT	$1.00
030	3B234-21520	GUIDE(OIL GAUGE)	$7.45
040	3A484-79310	HOLDER,BEARING PTO 2	$302.09
060	32530-25440	BOLT, REAMER (TRANNY)	$7.98
070	01133-51260	BOLT M12x1.25x60 mm ***	$1.95
080, 130	04512-50120	WASHER, SPRING LOCK ***	$1.70
090	01133-51295	BOLT M12x1.25x95 mm	$2.25
100	01133-51275	BOLT M12x1.25x75 mm	$2.13
110	01574-71235	STUD	$1.94
120	T3680-80950	NUT,M12,CR	$1.65
140	01133-51240	BOLT M12x1.25x40 mm ***	$1.68
150	3A211-21510	GAUGE,OIL	$22.76
160	3B291-21410	PLUG OIL FILLER *	$5.30
170	04817-50300	O-RING *	$2.08
180	3B731-21430	COVER	$91.64
190	01754-50812	BOLT M8x1.25x12 mm ***	$2.59
200	3C001-81880	STOPPER	$29.82
210	32701-52930	BOLT, UBS	$3.20

Ref: 010 Part #: 3C043-21413 Price: $980.99

Item: GEARCASE

QTY:

Ref: 020050 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 030 Part #: 3B234-21520 Price: $7.45

Item: GUIDE(OIL GAUGE)

QTY:

Ref: 040 Part #: 3A484-79310 Price: $302.09

Item: HOLDER,BEARING PTO 2

QTY:

Ref: 060 Part #: 32530-25440 Price: $7.98

Item: BOLT, REAMER (TRANNY)

QTY:

Ref: 070 Part #: 01133-51260 Price: $1.95

Item: BOLT M12x1.25x60 mm ***

QTY:

Ref: 080130 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 090 Part #: 01133-51295 Price: $2.25

Item: BOLT M12x1.25x95 mm

QTY:

Ref: 100 Part #: 01133-51275 Price: $2.13

Item: BOLT M12x1.25x75 mm

QTY:

Ref: 110 Part #: 01574-71235 Price: $1.94

Item: STUD

QTY:

Ref: 120 Part #: T3680-80950 Price: $1.65

Item: NUT,M12,CR

QTY:

Ref: 140 Part #: 01133-51240 Price: $1.68

Item: BOLT M12x1.25x40 mm ***

QTY:

Ref: 150 Part #: 3A211-21510 Price: $22.76

Item: GAUGE,OIL

QTY:

Ref: 160 Part #: 3B291-21410 Price: $5.30

Item: PLUG OIL FILLER *

QTY:

Ref: 170 Part #: 04817-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 180 Part #: 3B731-21430 Price: $91.64

Item: COVER

QTY:

Ref: 190 Part #: 01754-50812 Price: $2.59

Item: BOLT M8x1.25x12 mm ***

QTY:

Ref: 200 Part #: 3C001-81880 Price: $29.82

Item: STOPPER

QTY:

Ref: 210 Part #: 32701-52930 Price: $3.20

Item: BOLT, UBS

QTY:

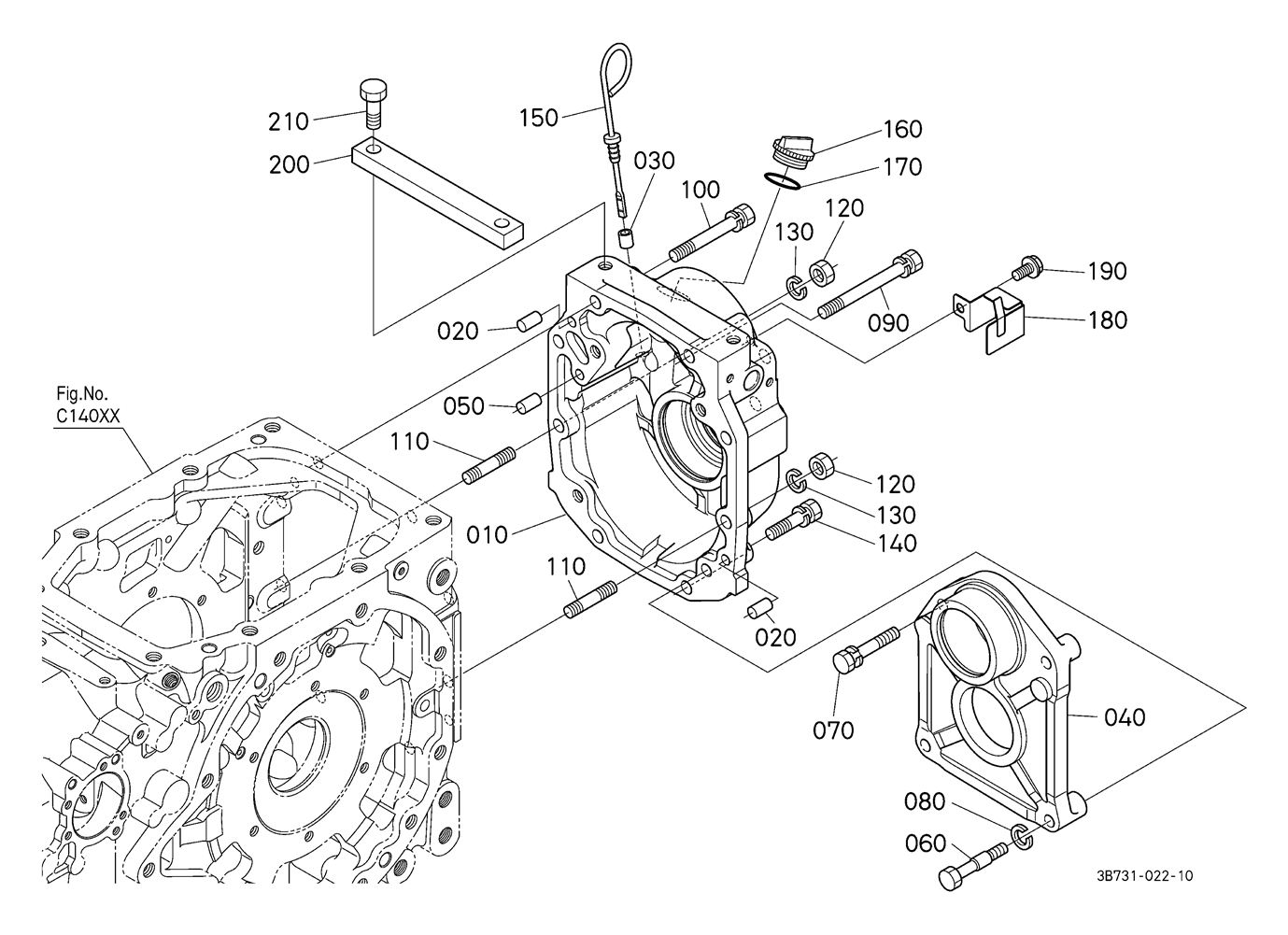

KUBOTA M4D 071HDC12 PARTS CLUTCH TRANSMISSION C15002 TRANSMISSION CASE REAR COVER
