Ref	Part #	Item	Price
010	35533-43290	BEARING, BALL RADIAL 85/130 *	$80.99
020	3C091-43720	GEAR, BEVEL	$423.89
030	38450-25350	BEARING, BALL (RADIAL) 30/72	$33.90
040	3C091-44210	SUPPORT	$179.08
050	3C091-43290	BEARING, BALL	$56.68
060	3C091-44220	GEAR	$200.36
070	3C091-44230	COLLAR	$15.85
080	3F740-44240	BEARING,NEEDLE	$27.64
090	3C091-44252	PIN	$23.26
100	05411-00522	PIN, SPRING	$0.99
110	3C091-44190	GEAR, INTERNAL	$463.79
120	35533-44260	PIN, STRAIGHT	$4.42
130	33740-30370	CIR-CLIP, EXTERNAL	$11.29
140	3C091-43712	AXLE (FRONT)	$728.76
150	3C091-43620	COVER, FRONT AXLE	$317.97
160	35533-44292	O RING *	$12.87
170	3A161-48250	SEAL,OIL *	$79.64
180	08101-06211	BEARING BALL RADIAL55/100	$35.81
190	04611-01000	CIR-CLIP, INTERNAL	$13.37
200	01133-51040	BOLT M10x1.25x40 mm ***	$1.90

Ref: 010 Part #: 35533-43290 Price: $80.99

Item: BEARING, BALL RADIAL 85/130 *

QTY:

Ref: 020 Part #: 3C091-43720 Price: $423.89

Item: GEAR, BEVEL

QTY:

Ref: 030 Part #: 38450-25350 Price: $33.90

Item: BEARING, BALL (RADIAL) 30/72

QTY:

Ref: 040 Part #: 3C091-44210 Price: $179.08

Item: SUPPORT

QTY:

Ref: 050 Part #: 3C091-43290 Price: $56.68

Item: BEARING, BALL

QTY:

Ref: 060 Part #: 3C091-44220 Price: $200.36

Item: GEAR

QTY:

Ref: 070 Part #: 3C091-44230 Price: $15.85

Item: COLLAR

QTY:

Ref: 080 Part #: 3F740-44240 Price: $27.64

Item: BEARING,NEEDLE

QTY:

Ref: 090 Part #: 3C091-44252 Price: $23.26

Item: PIN

QTY:

Ref: 100 Part #: 05411-00522 Price: $0.99

Item: PIN, SPRING

QTY:

Ref: 110 Part #: 3C091-44190 Price: $463.79

Item: GEAR, INTERNAL

QTY:

Ref: 120 Part #: 35533-44260 Price: $4.42

Item: PIN, STRAIGHT

QTY:

Ref: 130 Part #: 33740-30370 Price: $11.29

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 140 Part #: 3C091-43712 Price: $728.76

Item: AXLE (FRONT)

QTY:

Ref: 150 Part #: 3C091-43620 Price: $317.97

Item: COVER, FRONT AXLE

QTY:

Ref: 160 Part #: 35533-44292 Price: $12.87

Item: O RING *

QTY:

Ref: 170 Part #: 3A161-48250 Price: $79.64

Item: SEAL,OIL *

QTY:

Ref: 180 Part #: 08101-06211 Price: $35.81

Item: BEARING BALL RADIAL55/100

QTY:

Ref: 190 Part #: 04611-01000 Price: $13.37

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 200 Part #: 01133-51040 Price: $1.90

Item: BOLT M10x1.25x40 mm ***

QTY:

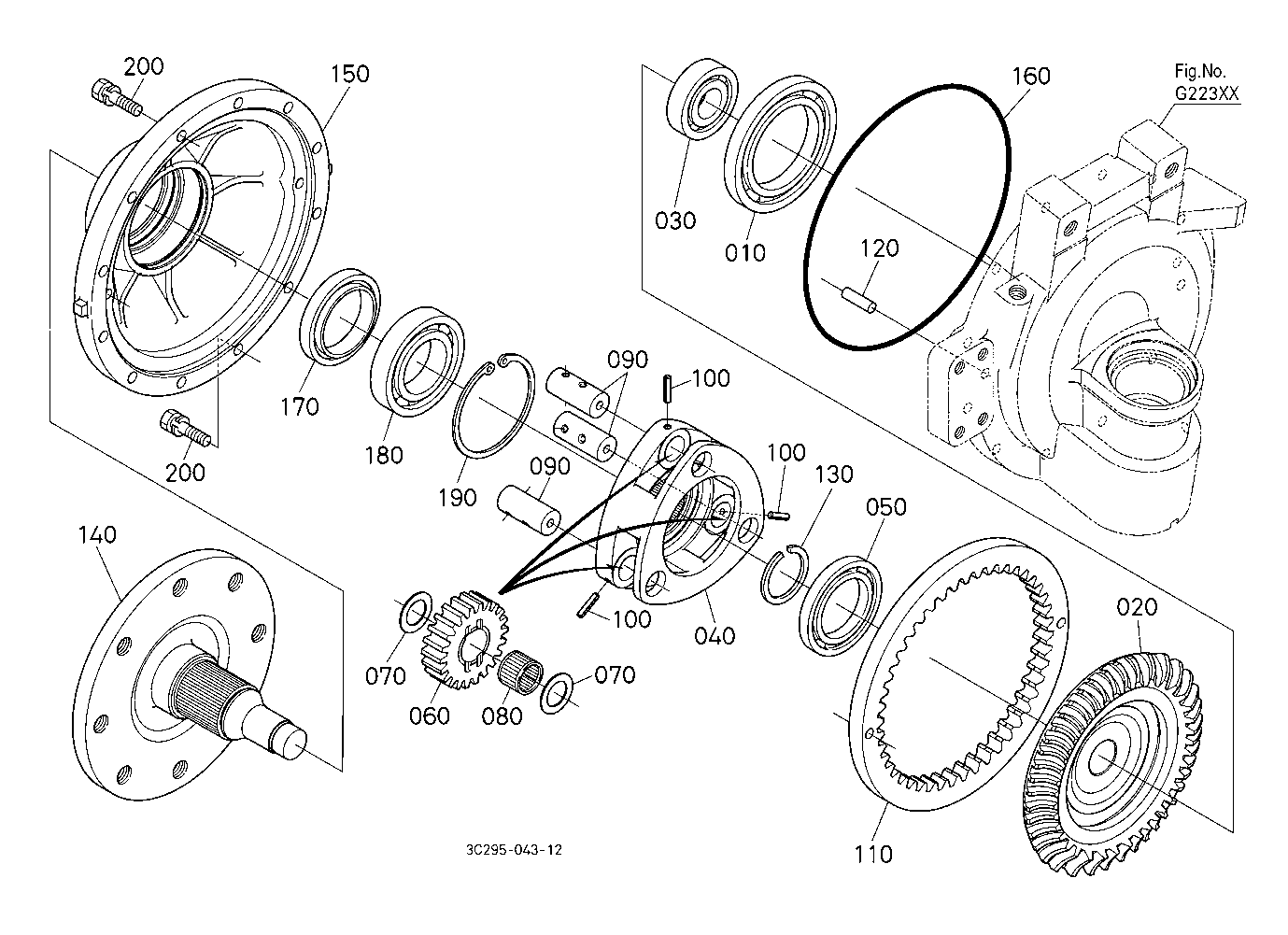

KUBOTA M5 111HD HD 1 PARTS FRONT AXLE CHASSIS G24100 FRONT AXLE RH
