Ref	Part #	Item	Price
010	3B291-04160	COVER FUEL TANK	$98.71
020	01123-50814	BOLT M8x1.25x14 mm ***	$0.99
030	04015-50080	WASHER, PLAIN ***	$0.99
040	3B291-04180	STAY, FUEL TANK	$65.04
050, 080	3C581-04680	CUSHION,TANK	$9.89
060	01133-51470	BOLT,SEMS	$6.28
070	3B291-04190	STAY	$550.75
090	01133-51230	BOLT M12x1.25x30 mm ***	$1.55
100	01574-71230	STUD	$1.65
110	02783-50120	NUT FLANGE	$2.08

Ref: 010 Part #: 3B291-04160 Price: $98.71

Item: COVER FUEL TANK

QTY:

Ref: 020 Part #: 01123-50814 Price: $0.99

Item: BOLT M8x1.25x14 mm ***

QTY:

Ref: 030 Part #: 04015-50080 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 040 Part #: 3B291-04180 Price: $65.04

Item: STAY, FUEL TANK

QTY:

Ref: 050080 Part #: 3C581-04680 Price: $9.89

Item: CUSHION,TANK

QTY:

Ref: 060 Part #: 01133-51470 Price: $6.28

Item: BOLT,SEMS

QTY:

Ref: 070 Part #: 3B291-04190 Price: $550.75

Item: STAY

QTY:

Ref: 090 Part #: 01133-51230 Price: $1.55

Item: BOLT M12x1.25x30 mm ***

QTY:

Ref: 100 Part #: 01574-71230 Price: $1.65

Item: STUD

QTY:

Ref: 110 Part #: 02783-50120 Price: $2.08

Item: NUT FLANGE

QTY:

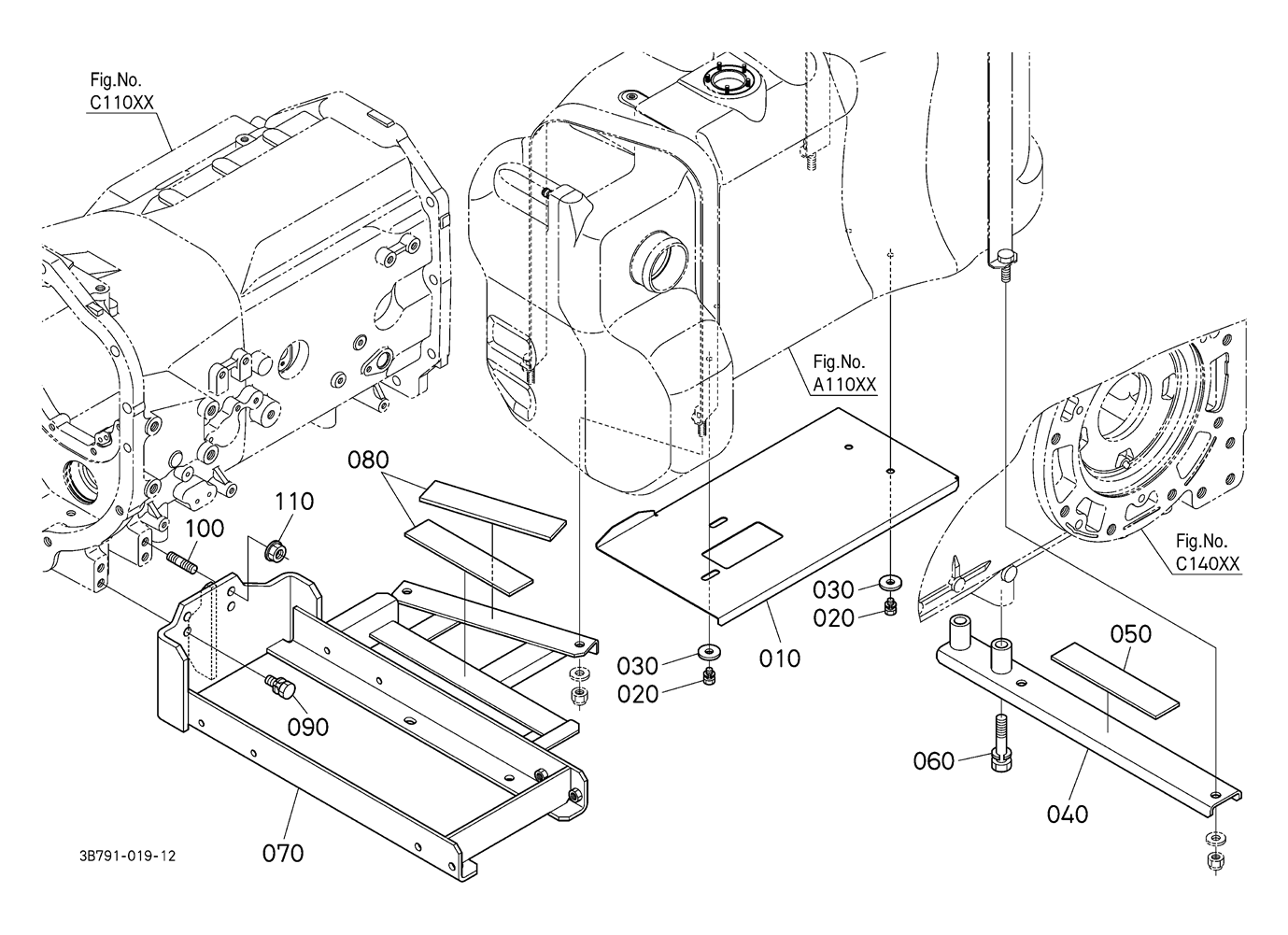

KUBOTA M5 111HD HD 1 PARTS FUEL SYSTEM A11500 FUEL TANK BRACKET
