KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3A111-97210	SHAFT, KNUCKLE RH	$462.32
010	3A111-97210	SHAFT, KNUCKLE RH	$462.32
020, 040	33251-58260	PIN, KNOCK	$4.80
030	3A111-97220	SHAFT, KNUCKLE LH	$462.32
030	3A111-97220	SHAFT, KNUCKLE LH	$462.32
050	3A011-58710	COLLAR, THRUST	$32.74
060	3A011-58720	COLLAR, THRUST	$17.32
070	08711-30207	BEARING TAPER ROLL 35/72	$30.01
080	08711-30205	BEARING, TAPER ROLLER ***	$22.91
090	33251-58770	COVER, DUST	$91.51
100	33251-58760	SEAL, OIL	$26.64
110	02375-50220	NUT	$2.92
120	05511-50435	PIN, SPLIT ***	$0.99
130	3A111-62730	ARM, KNUCKLE	$173.27
140	36830-58430	BOLT	$7.22
150	04512-70140	WASHER,SPRING *	$0.99
160	02174-50140	NUT, HEX M14-1.5 ***	$1.00
170	3A011-58813	HUB, FRONT AXLE	$322.22
170	3A011-58813	HUB, FRONT AXLE	$322.22
180	32240-11350	CAP, FRONT WHEEL	$12.04
190	01123-70814	BOLT M8x1.25x14 mm	$0.99

Ref: 010 Part #: 3A111-97210 Price: $462.32

Item: SHAFT, KNUCKLE RH

QTY:

Ref: 010 Part #: 3A111-97210 Price: $462.32

Item: SHAFT, KNUCKLE RH

QTY:

Ref: 020040 Part #: 33251-58260 Price: $4.80

Item: PIN, KNOCK

QTY:

Ref: 030 Part #: 3A111-97220 Price: $462.32

Item: SHAFT, KNUCKLE LH

QTY:

Ref: 030 Part #: 3A111-97220 Price: $462.32

Item: SHAFT, KNUCKLE LH

QTY:

Ref: 050 Part #: 3A011-58710 Price: $32.74

Item: COLLAR, THRUST

QTY:

Ref: 060 Part #: 3A011-58720 Price: $17.32

Item: COLLAR, THRUST

QTY:

Ref: 070 Part #: 08711-30207 Price: $30.01

Item: BEARING TAPER ROLL 35/72

QTY:

Ref: 080 Part #: 08711-30205 Price: $22.91

Item: BEARING, TAPER ROLLER ***

QTY:

Ref: 090 Part #: 33251-58770 Price: $91.51

Item: COVER, DUST

QTY:

Ref: 100 Part #: 33251-58760 Price: $26.64

Item: SEAL, OIL

QTY:

Ref: 110 Part #: 02375-50220 Price: $2.92

Item: NUT

QTY:

Ref: 120 Part #: 05511-50435 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 130 Part #: 3A111-62730 Price: $173.27

Item: ARM, KNUCKLE

QTY:

Ref: 140 Part #: 36830-58430 Price: $7.22

Item: BOLT

QTY:

Ref: 150 Part #: 04512-70140 Price: $0.99

Item: WASHER,SPRING *

QTY:

Ref: 160 Part #: 02174-50140 Price: $1.00

Item: NUT, HEX M14-1.5 ***

QTY:

Ref: 170 Part #: 3A011-58813 Price: $322.22

Item: HUB, FRONT AXLE

QTY:

Ref: 170 Part #: 3A011-58813 Price: $322.22

Item: HUB, FRONT AXLE

QTY:

Ref: 180 Part #: 32240-11350 Price: $12.04

Item: CAP, FRONT WHEEL

QTY:

Ref: 190 Part #: 01123-70814 Price: $0.99

Item: BOLT M8x1.25x14 mm

QTY:

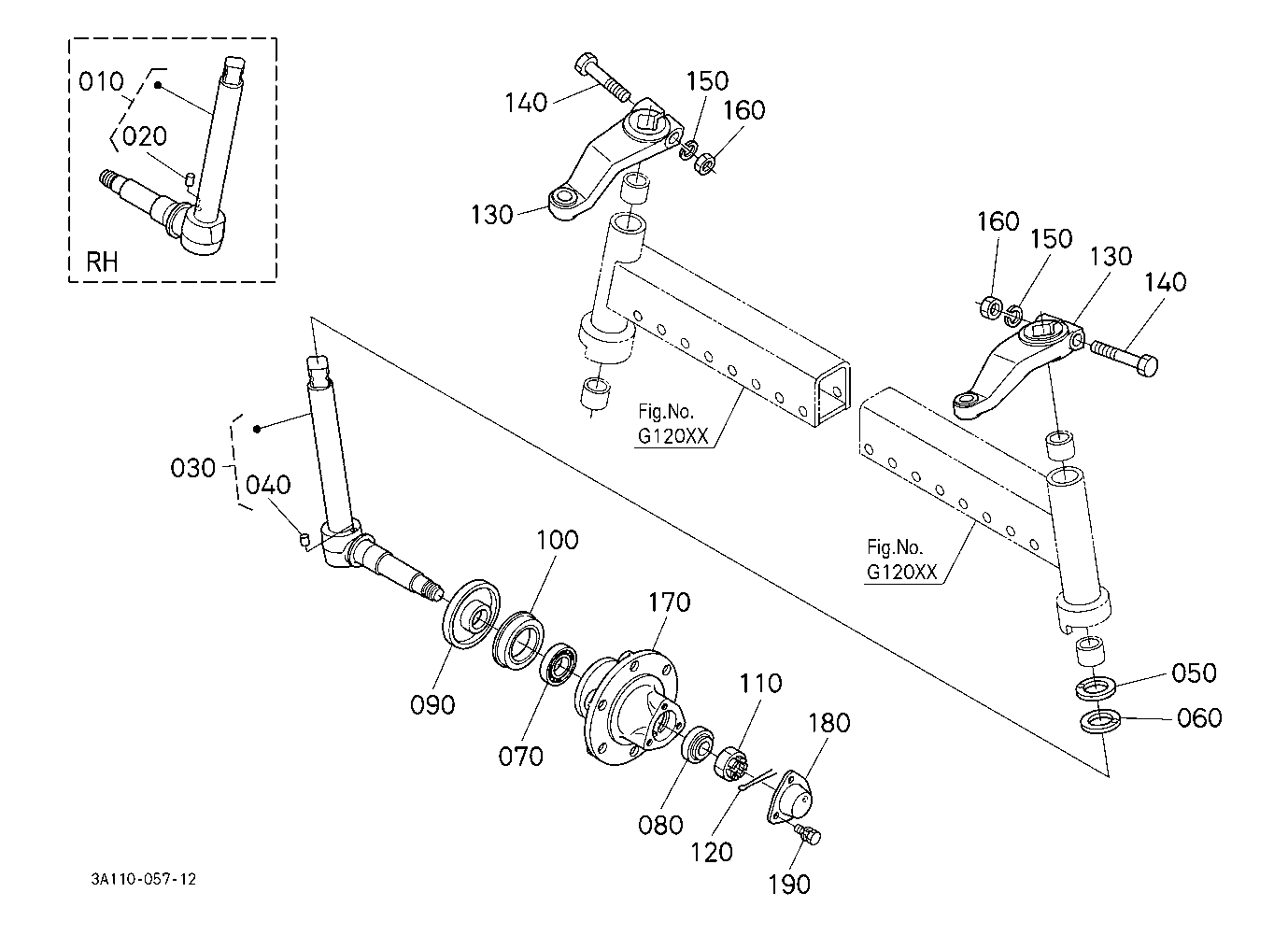

KUBOTA M5040F 1 PARTS FRONT AXLE CHASSIS G13000 FRONT WHEEL HUB
