KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3A011-63881	CYLINDER,HYDRAULIC S/N <=10298	Call for price
010	YW397-00103	ASSY CYLINDER *	$1,276.65
010	3A012-63880	CYLINDER,HYDRAULIC ***	$1,830.28
020	3A011-62130	CLAMP	$38.32
020	3A012-62130	CLAMP	$93.98
030, 180	02176-50100	NUT,HEX M10-1.25mm 6T ***	$0.99
040	3A011-62971	ASSY ROD,TIE S/N <=30072	Call for price
040	3A011-62972	ASSY ROD, TIE ***	$415.77
040	3A012-62970	ASSY ROD TIE ***	$434.61
050	3A011-62980	JOINT,TIE ROD	$312.83
050	3A151-62980	ROD,END	$342.59
055	35080-44680	COVER, DUST RUBBER	$25.18
055	35533-62850	COVER, DUST	$22.76
060	35533-62860	RING, SET	$2.17
070	35080-44690	CLIP	$1.65
070	35533-62820	CLIP	$1.00
080	3A011-62922	END,TIE ROD	$200.18
080	3A011-62922	END,TIE ROD	$200.18
080	3A012-62920	END, TIE ROD	$165.51
090	32580-44780	COVER, DUST	$9.26
090	35860-62852	COVER, DUST	$34.40
100	36280-62860	CLIP	$0.99
110	36330-62750	NUT	$6.61
110	35860-62750	NUT, SLOTTED	$8.22
120	05511-50328	PIN, SPLIT ***	$0.99
120	05511-50335	PIN, SPLIT ***	$0.99
130	3A011-62911	ROD,TIE OUTER S/N <=30180	Call for price
130	3A011-62912	ROD, TIE	$94.45
140	02172-50200	NUT	$1.94
150	33251-62860	CLAMP, TIE ROD	$13.15
160	38430-12560	BOLT	$2.23
170	04512-70100	WASHER,SPRING	$0.99

Ref: 010 Part #: 3A011-63881 Price: Call for price

Item: CYLINDER,HYDRAULIC S/N <=10298

QTY:

Ref: 010 Part #: YW397-00103 Price: $1,276.65

Item: ASSY CYLINDER *

QTY:

Ref: 010 Part #: 3A012-63880 Price: $1,830.28

Item: CYLINDER,HYDRAULIC ***

QTY:

Ref: 020 Part #: 3A011-62130 Price: $38.32

Item: CLAMP

QTY:

Ref: 020 Part #: 3A012-62130 Price: $93.98

Item: CLAMP

QTY:

Ref: 030180 Part #: 02176-50100 Price: $0.99

Item: NUT,HEX M10-1.25mm 6T ***

QTY:

Ref: 040 Part #: 3A011-62971 Price: Call for price

Item: ASSY ROD,TIE S/N <=30072

QTY:

Ref: 040 Part #: 3A011-62972 Price: $415.77

Item: ASSY ROD, TIE ***

QTY:

Ref: 040 Part #: 3A012-62970 Price: $434.61

Item: ASSY ROD TIE ***

QTY:

Ref: 050 Part #: 3A011-62980 Price: $312.83

Item: JOINT,TIE ROD

QTY:

Ref: 050 Part #: 3A151-62980 Price: $342.59

Item: ROD,END

QTY:

Ref: 055 Part #: 35080-44680 Price: $25.18

Item: COVER, DUST RUBBER

QTY:

Ref: 055 Part #: 35533-62850 Price: $22.76

Item: COVER, DUST

QTY:

Ref: 060 Part #: 35533-62860 Price: $2.17

Item: RING, SET

QTY:

Ref: 070 Part #: 35080-44690 Price: $1.65

Item: CLIP

QTY:

Ref: 070 Part #: 35533-62820 Price: $1.00

Item: CLIP

QTY:

Ref: 080 Part #: 3A011-62922 Price: $200.18

Item: END,TIE ROD

QTY:

Ref: 080 Part #: 3A011-62922 Price: $200.18

Item: END,TIE ROD

QTY:

Ref: 080 Part #: 3A012-62920 Price: $165.51

Item: END, TIE ROD

QTY:

Ref: 090 Part #: 32580-44780 Price: $9.26

Item: COVER, DUST

QTY:

Ref: 090 Part #: 35860-62852 Price: $34.40

Item: COVER, DUST

QTY:

Ref: 100 Part #: 36280-62860 Price: $0.99

Item: CLIP

QTY:

Ref: 110 Part #: 36330-62750 Price: $6.61

Item: NUT

QTY:

Ref: 110 Part #: 35860-62750 Price: $8.22

Item: NUT, SLOTTED

QTY:

Ref: 120 Part #: 05511-50328 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 120 Part #: 05511-50335 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 130 Part #: 3A011-62911 Price: Call for price

Item: ROD,TIE OUTER S/N <=30180

QTY:

Ref: 130 Part #: 3A011-62912 Price: $94.45

Item: ROD, TIE

QTY:

Ref: 140 Part #: 02172-50200 Price: $1.94

Item: NUT

QTY:

Ref: 150 Part #: 33251-62860 Price: $13.15

Item: CLAMP, TIE ROD

QTY:

Ref: 160 Part #: 38430-12560 Price: $2.23

Item: BOLT

QTY:

Ref: 170 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

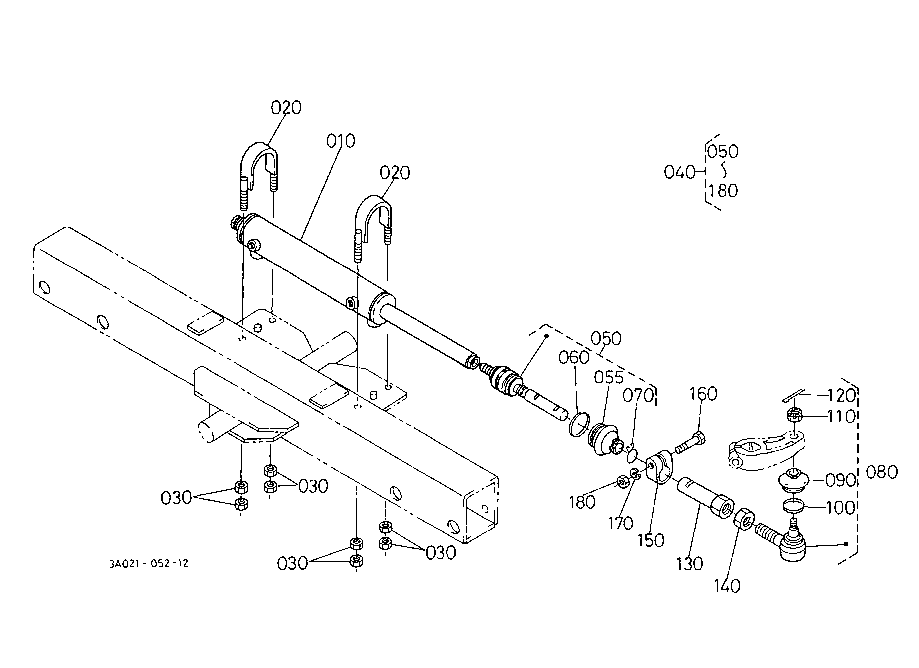

KUBOTA M5400 PARTS STEERING T09401 STEERING LINKAGE
