Ref	Part #	Item	Price
001	36280-41610	BRACKET, FRONT	$172.79
002	36580-41620	BRACKET**	$230.34
003	01517-51645	STUD	$5.72
004	02074-50160	NUT, 4T ***	$1.49
005	04512-70160	WASHER,SPRING	$0.99
006	04811-50550	O RING	$1.98
007	36280-41630	WASHER	$5.41
008	36280-41640	SCREW, ADJUSTING ***	$20.13
009	36280-41650	NUT, LOCK	$48.16
010	04717-01600	WASHER, SEAL W/RUBBER	$1.94
011	08511-05540	BUSHING	$17.32
012	36280-41670	WASHER, THRUST	$40.82
013	36280-42150	CASE,DIFF FRONT ***	$2,624.78
014	36280-42163	COVER, CASE	$1,059.82
014	36280-42164	COVER, DIFF. CASE**	$361.42
015, 024	04512-50120	WASHER, SPRING LOCK ***	$1.70
016	36280-42190	PIN,STRAIGHT ***	$1.73
017	06331-35020	PLUG ***	$3.34
018	04717-02000	WASHER, SEAL W/RUBBER	$2.23
019	36280-42210	CASE,PIN.BRG. ***	$429.67
020	36280-42220	SHIM	$6.60
021	36280-42230	SHIM ***	$8.20
022	04811-50950	O RING	$4.20
023	01176-51235	BOLT M12x1.25x35 mm	$1.63
025	36280-42250	CAP PINION SHAFT**	$445.90
026	04811-10750	O-RING	$3.90
027	01176-71030	BOLT M10x1.25x30 mm	$0.99
028	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
029	36280-42180	STUD ***	$11.21
030	02176-50120	NUT, HEX M12x1.25 ***	$0.99

Ref: 001 Part #: 36280-41610 Price: $172.79

Item: BRACKET, FRONT

QTY:

Ref: 002 Part #: 36580-41620 Price: $230.34

Item: BRACKET**

QTY:

Ref: 003 Part #: 01517-51645 Price: $5.72

Item: STUD

QTY:

Ref: 004 Part #: 02074-50160 Price: $1.49

Item: NUT, 4T ***

QTY:

Ref: 005 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 006 Part #: 04811-50550 Price: $1.98

Item: O RING

QTY:

Ref: 007 Part #: 36280-41630 Price: $5.41

Item: WASHER

QTY:

Ref: 008 Part #: 36280-41640 Price: $20.13

Item: SCREW, ADJUSTING ***

QTY:

Ref: 009 Part #: 36280-41650 Price: $48.16

Item: NUT, LOCK

QTY:

Ref: 010 Part #: 04717-01600 Price: $1.94

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 011 Part #: 08511-05540 Price: $17.32

Item: BUSHING

QTY:

Ref: 012 Part #: 36280-41670 Price: $40.82

Item: WASHER, THRUST

QTY:

Ref: 013 Part #: 36280-42150 Price: $2,624.78

Item: CASE,DIFF FRONT ***

QTY:

Ref: 014 Part #: 36280-42163 Price: $1,059.82

Item: COVER, CASE

QTY:

Ref: 014 Part #: 36280-42164 Price: $361.42

Item: COVER, DIFF. CASE**

QTY:

Ref: 015024 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 016 Part #: 36280-42190 Price: $1.73

Item: PIN,STRAIGHT ***

QTY:

Ref: 017 Part #: 06331-35020 Price: $3.34

Item: PLUG ***

QTY:

Ref: 018 Part #: 04717-02000 Price: $2.23

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 019 Part #: 36280-42210 Price: $429.67

Item: CASE,PIN.BRG. ***

QTY:

Ref: 020 Part #: 36280-42220 Price: $6.60

Item: SHIM

QTY:

Ref: 021 Part #: 36280-42230 Price: $8.20

Item: SHIM ***

QTY:

Ref: 022 Part #: 04811-50950 Price: $4.20

Item: O RING

QTY:

Ref: 023 Part #: 01176-51235 Price: $1.63

Item: BOLT M12x1.25x35 mm

QTY:

Ref: 025 Part #: 36280-42250 Price: $445.90

Item: CAP PINION SHAFT**

QTY:

Ref: 026 Part #: 04811-10750 Price: $3.90

Item: O-RING

QTY:

Ref: 027 Part #: 01176-71030 Price: $0.99

Item: BOLT M10x1.25x30 mm

QTY:

Ref: 028 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 029 Part #: 36280-42180 Price: $11.21

Item: STUD ***

QTY:

Ref: 030 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

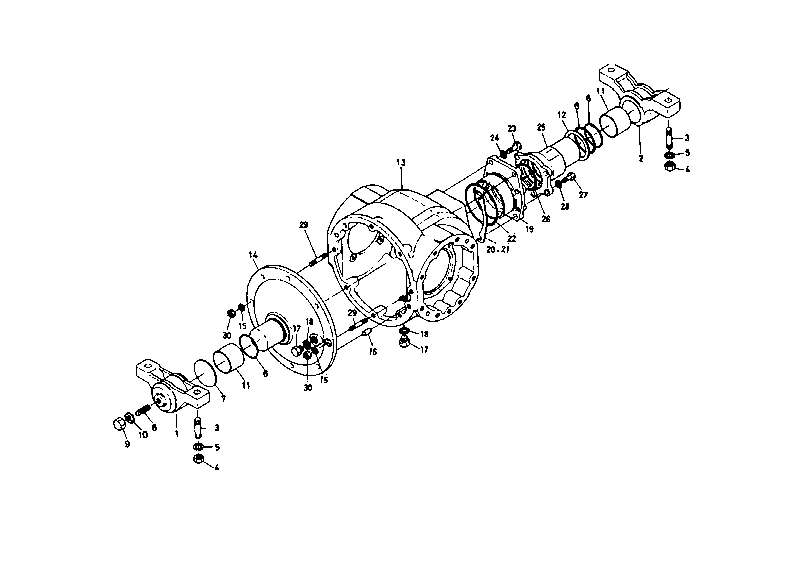

KUBOTA M5500DT PARTS FRONT AXLE FRONT WHEEL CHASSIS 077000 DIFF CASE 1
