Ref	Part #	Item	Price
010	33960-48210	AXLE, REAR	$2,341.30
020	36910-48250	SEAL, OIL	$70.22
030	08101-06215	BEARING,BALL RADIAL 75/130 ***	$80.99
040	36500-48274	NUT	$132.27
050	08101-06213	BEARING,BALL RADIAL 65/120	$58.23
070	3F860-48310	GEAR,INTERNAL 56	$926.17
080	3Y205-48340	SUPPORT,PLANETARY GEAR	$550.96
090	3F280-48360	SHAFT, PLANETARY	$114.40
100	3F860-48320	GEAR,PLANETARY	$280.46
110	35893-48350	BRG NDL ROLLER35/49	$39.17
120	33870-44230	COLLAR, THRUST	$20.34
130	05411-00830	PIN, SPRING	$1.00
140	36730-48450	PIN, STRAIGHT	$7.22
150	36500-48280	RETAINER,SUPPORT	$63.41
160	01779-51225	BOLT,UBS	$3.19
170	3F860-48500	ASSY SHAFT,BRAKE RH	$616.60
180, 200	07715-03219	BALL	$1.07
190	3F280-48510	ASSY SHAFT BRAKE, LH	$884.86
210	04612-00550	CIR-CLIP, EXTERNAL	$2.23
220	3F749-49152	STUD	$23.16
230	36200-49140	NUT, WHEEL REAR	$10.40
240	36200-49130	SPRING, PLATE [AU]	$5.66

Ref: 010 Part #: 33960-48210 Price: $2,341.30

Item: AXLE, REAR

QTY:

Ref: 020 Part #: 36910-48250 Price: $70.22

Item: SEAL, OIL

QTY:

Ref: 030 Part #: 08101-06215 Price: $80.99

Item: BEARING,BALL RADIAL 75/130 ***

QTY:

Ref: 040 Part #: 36500-48274 Price: $132.27

Item: NUT

QTY:

Ref: 050 Part #: 08101-06213 Price: $58.23

Item: BEARING,BALL RADIAL 65/120

QTY:

Ref: 070 Part #: 3F860-48310 Price: $926.17

Item: GEAR,INTERNAL 56

QTY:

Ref: 080 Part #: 3Y205-48340 Price: $550.96

Item: SUPPORT,PLANETARY GEAR

QTY:

Ref: 090 Part #: 3F280-48360 Price: $114.40

Item: SHAFT, PLANETARY

QTY:

Ref: 100 Part #: 3F860-48320 Price: $280.46

Item: GEAR,PLANETARY

QTY:

Ref: 110 Part #: 35893-48350 Price: $39.17

Item: BRG NDL ROLLER35/49

QTY:

Ref: 120 Part #: 33870-44230 Price: $20.34

Item: COLLAR, THRUST

QTY:

Ref: 130 Part #: 05411-00830 Price: $1.00

Item: PIN, SPRING

QTY:

Ref: 140 Part #: 36730-48450 Price: $7.22

Item: PIN, STRAIGHT

QTY:

Ref: 150 Part #: 36500-48280 Price: $63.41

Item: RETAINER,SUPPORT

QTY:

Ref: 160 Part #: 01779-51225 Price: $3.19

Item: BOLT,UBS

QTY:

Ref: 170 Part #: 3F860-48500 Price: $616.60

Item: ASSY SHAFT,BRAKE RH

QTY:

Ref: 180200 Part #: 07715-03219 Price: $1.07

Item: BALL

QTY:

Ref: 190 Part #: 3F280-48510 Price: $884.86

Item: ASSY SHAFT BRAKE, LH

QTY:

Ref: 210 Part #: 04612-00550 Price: $2.23

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 220 Part #: 3F749-49152 Price: $23.16

Item: STUD

QTY:

Ref: 230 Part #: 36200-49140 Price: $10.40

Item: NUT, WHEEL REAR

QTY:

Ref: 240 Part #: 36200-49130 Price: $5.66

Item: SPRING, PLATE [AU]

QTY:

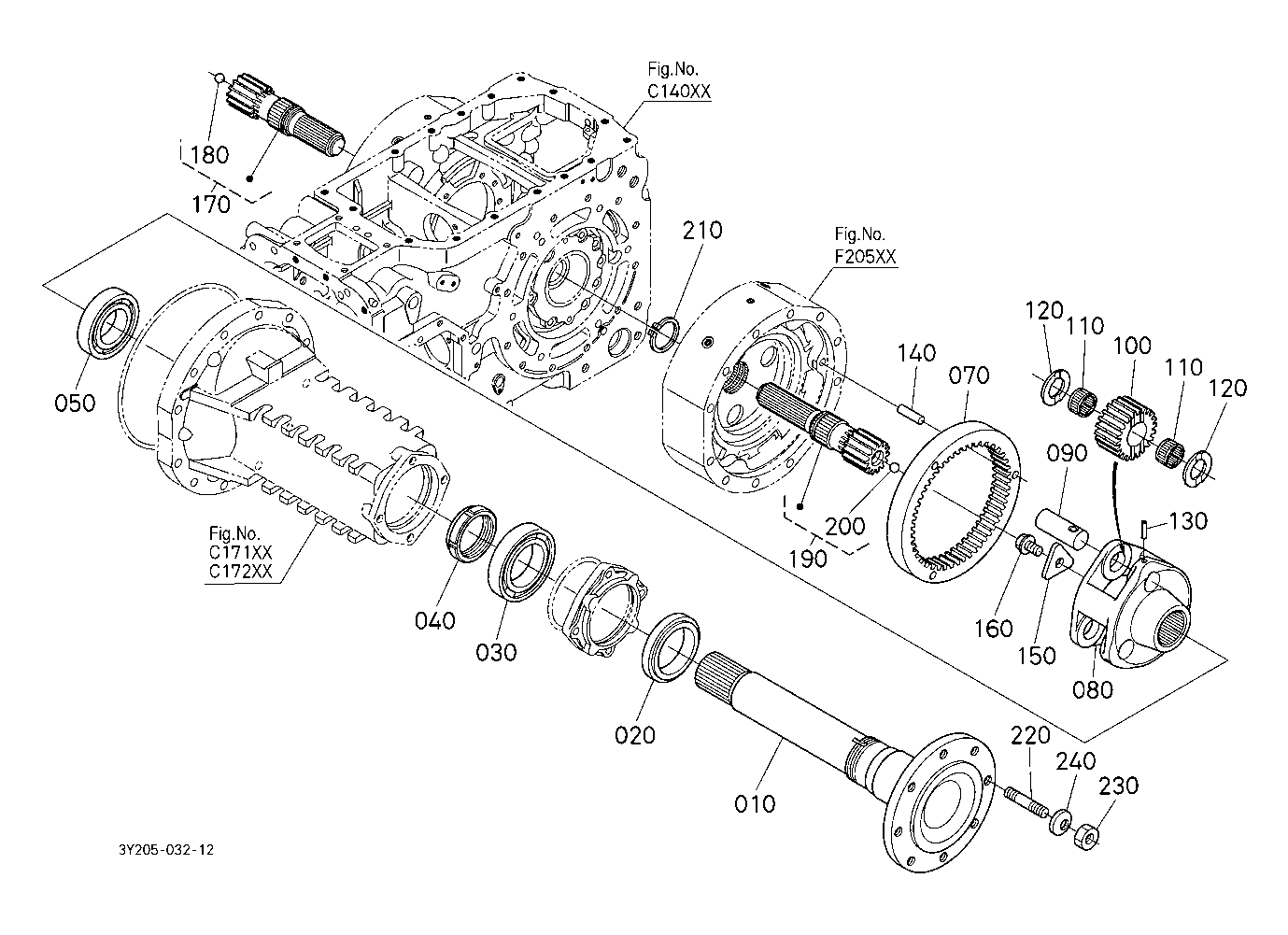

KUBOTA M6 111DTC PARTS REAR AXLE BRAKE F20003 REAR AXLE SHAFT [A]
