Ref	Part #	Item	Price
010	35533-04510	STAY, TANK RH	$143.14
010	35533-04513	STAY, RH TANK ***	$129.90
020	35533-04540	STAY, TANK LH	$143.14
020	35533-04543	STAY, LH TANK ***	$129.90
030	35533-04270	STAY, TANK SUPPORT ***	$9.72
040	01133-51025	BOLT M10x1.25x25 mm ***	$1.55
050	01574-51225	STUD	$1.65
060	04512-50120	WASHER, SPRING LOCK ***	$1.70
070	02176-50120	NUT, HEX M12x1.25 ***	$0.99
080	35533-04280	COLLAR, TANK STAY	$14.78
090	01173-51280	BOLT M12x1.25x80 mm	$2.71
090	01173-51285	BOLT	$2.23
100	35553-04250	COLLAR	$8.94
100	36760-85190	COLLAR	$10.08
110	35553-04610	SHUTTER PLATE	$86.76
110	35553-04613	SHUTTER PLATE	$88.52
120	35533-04580	ELEMENT 1 ***	$18.79
130	35533-04590	ELEMENT 2 ***	$13.31
140	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
150	02118-50100	NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***	$0.99
160	35533-04750	RING, RUBBER***	$2.81
170	35533-04770	SUPPORT, BONNET	$8.36
180	35533-04790	SUPPORT, BONNET	$8.36
190, 220	01023-50612	BOLT M6x1.0x12 mm ***	$0.99
200	35533-04960	STAY, COVER	$24.90
210	35533-04680	CUSHION	$47.35
230	35553-04890	SHUTTER PLATE	$18.52
240	36330-87450	RING	$1.65

Ref: 010 Part #: 35533-04510 Price: $143.14

Item: STAY, TANK RH

QTY:

Ref: 010 Part #: 35533-04513 Price: $129.90

Item: STAY, RH TANK ***

QTY:

Ref: 020 Part #: 35533-04540 Price: $143.14

Item: STAY, TANK LH

QTY:

Ref: 020 Part #: 35533-04543 Price: $129.90

Item: STAY, LH TANK ***

QTY:

Ref: 030 Part #: 35533-04270 Price: $9.72

Item: STAY, TANK SUPPORT ***

QTY:

Ref: 040 Part #: 01133-51025 Price: $1.55

Item: BOLT M10x1.25x25 mm ***

QTY:

Ref: 050 Part #: 01574-51225 Price: $1.65

Item: STUD

QTY:

Ref: 060 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 070 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 080 Part #: 35533-04280 Price: $14.78

Item: COLLAR, TANK STAY

QTY:

Ref: 090 Part #: 01173-51280 Price: $2.71

Item: BOLT M12x1.25x80 mm

QTY:

Ref: 090 Part #: 01173-51285 Price: $2.23

Item: BOLT

QTY:

Ref: 100 Part #: 35553-04250 Price: $8.94

Item: COLLAR

QTY:

Ref: 100 Part #: 36760-85190 Price: $10.08

Item: COLLAR

QTY:

Ref: 110 Part #: 35553-04610 Price: $86.76

Item: SHUTTER PLATE

QTY:

Ref: 110 Part #: 35553-04613 Price: $88.52

Item: SHUTTER PLATE

QTY:

Ref: 120 Part #: 35533-04580 Price: $18.79

Item: ELEMENT 1 ***

QTY:

Ref: 130 Part #: 35533-04590 Price: $13.31

Item: ELEMENT 2 ***

QTY:

Ref: 140 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 150 Part #: 02118-50100 Price: $0.99

Item: NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

QTY:

Ref: 160 Part #: 35533-04750 Price: $2.81

Item: RING, RUBBER***

QTY:

Ref: 170 Part #: 35533-04770 Price: $8.36

Item: SUPPORT, BONNET

QTY:

Ref: 180 Part #: 35533-04790 Price: $8.36

Item: SUPPORT, BONNET

QTY:

Ref: 190220 Part #: 01023-50612 Price: $0.99

Item: BOLT M6x1.0x12 mm ***

QTY:

Ref: 200 Part #: 35533-04960 Price: $24.90

Item: STAY, COVER

QTY:

Ref: 210 Part #: 35533-04680 Price: $47.35

Item: CUSHION

QTY:

Ref: 230 Part #: 35553-04890 Price: $18.52

Item: SHUTTER PLATE

QTY:

Ref: 240 Part #: 36330-87450 Price: $1.65

Item: RING

QTY:

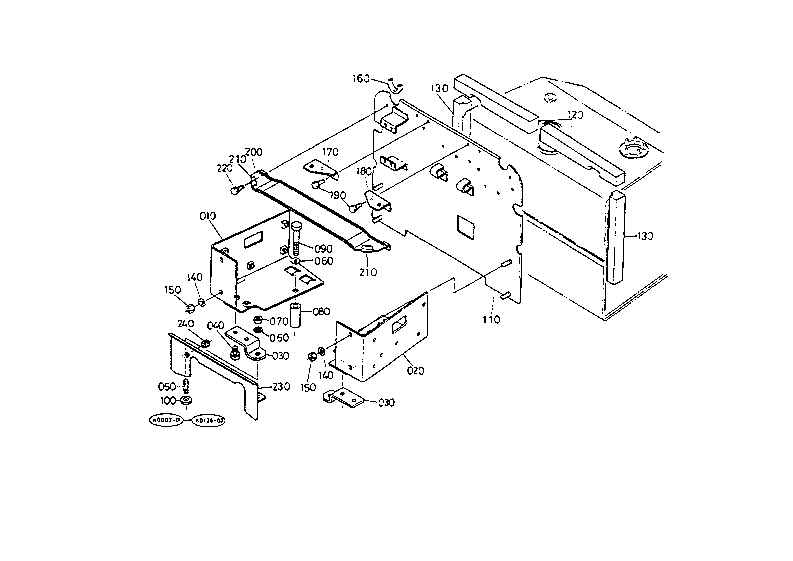

KUBOTA M6030 PARTS FUEL SYSTEM T03300 FUEL TANK BRACKET
