KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	16134-25010	FLYWHEEL ASSY	$1,103.00
010	16134-25010	FLYWHEEL ASSY	$1,103.00
020	16141-63820	GEAR, RING	$313.48
020	16141-63820	GEAR, RING	$313.48
030	08141-06303	BEARING BALL RADIAL17/47	$14.34
040	15451-25160	BOLT, FLYWHEEL ***	$32.10
040	15471-25162	BOLT, FLYWHEEL	$23.37
050	15571-25170	WASHER, FLYWHEEL ***	$23.92
060	15451-04600	FLYWHEEL HSNG ASSY.	$695.22
070	05012-01016	PIN, STRAIGHT	$1.00
080	01073-51435	BOLT M14x1.5x35 mm ***	$1.55
090	01073-51400	BOLT	$9.42
100	04512-50140	WASHER, SPRING ***	$0.99
110	15451-04670	PLATE	$3.03
120	15451-91500	STUD (FLYWHEEL)	$7.15
130	04512-50080	WASHER, SPRING ***	$0.99
140	15451-04680	COVER	$120.67
150	15451-92330	NUT, CAP *	$5.42
160	15451-96660	GASKET	$2.74

Ref: 010 Part #: 16134-25010 Price: $1,103.00

Item: FLYWHEEL ASSY

QTY:

Ref: 010 Part #: 16134-25010 Price: $1,103.00

Item: FLYWHEEL ASSY

QTY:

Ref: 020 Part #: 16141-63820 Price: $313.48

Item: GEAR, RING

QTY:

Ref: 020 Part #: 16141-63820 Price: $313.48

Item: GEAR, RING

QTY:

Ref: 030 Part #: 08141-06303 Price: $14.34

Item: BEARING BALL RADIAL17/47

QTY:

Ref: 040 Part #: 15451-25160 Price: $32.10

Item: BOLT, FLYWHEEL ***

QTY:

Ref: 040 Part #: 15471-25162 Price: $23.37

Item: BOLT, FLYWHEEL

QTY:

Ref: 050 Part #: 15571-25170 Price: $23.92

Item: WASHER, FLYWHEEL ***

QTY:

Ref: 060 Part #: 15451-04600 Price: $695.22

Item: FLYWHEEL HSNG ASSY.

QTY:

Ref: 070 Part #: 05012-01016 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 080 Part #: 01073-51435 Price: $1.55

Item: BOLT M14x1.5x35 mm ***

QTY:

Ref: 090 Part #: 01073-51400 Price: $9.42

Item: BOLT

QTY:

Ref: 100 Part #: 04512-50140 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 110 Part #: 15451-04670 Price: $3.03

Item: PLATE

QTY:

Ref: 120 Part #: 15451-91500 Price: $7.15

Item: STUD (FLYWHEEL)

QTY:

Ref: 130 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 140 Part #: 15451-04680 Price: $120.67

Item: COVER

QTY:

Ref: 150 Part #: 15451-92330 Price: $5.42

Item: NUT, CAP *

QTY:

Ref: 160 Part #: 15451-96660 Price: $2.74

Item: GASKET

QTY:

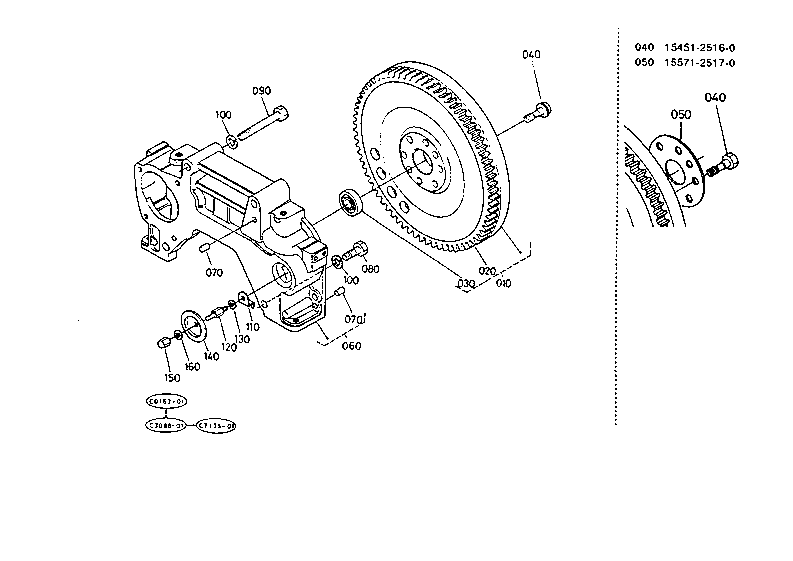

KUBOTA M6030DT N PARTS ENGINE T00600 FLYWHEEL
