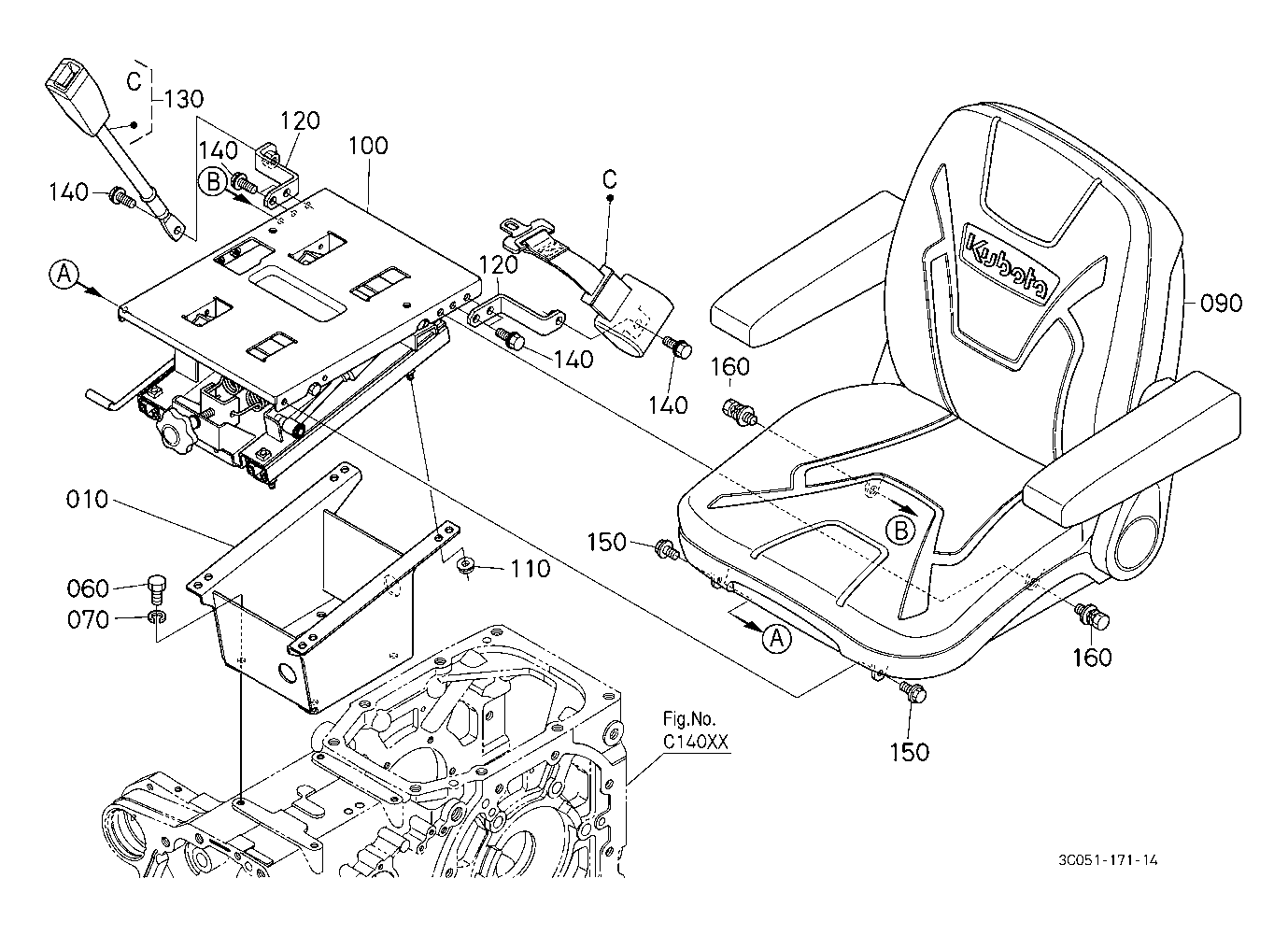

KUBOTA M6040DT PARTS HOOD BONNET M23500 SEAT

    KUBOTA >kubota-m6040dt-parts-hood-bonnet-m23500-seat
    Ref: 010  Part #: 3C001-85152  Price: $177.23

    Item: BRACKET SEAT (NEW TYPE) ***

    QTY:
    Ref: 010  Part #: 3C001-85153  Price: $227.38

    Item: BRACKET, SEAT

    QTY:
    Ref: 020  Part #: 3C001-97010  Price: $24.15

    Item: KIT COLLAR (SEAT)

    QTY:
    Ref: 030  Part #: 3C001-85320  Price: $22.99

    Item: CUSHION (2,SEAT) ***

    QTY:
    Ref: 040  Part #: 53511-27170  Price: $1.00

    Item: WASHER *

    QTY:
    Ref: 050  Part #: TD060-23790  Price: $28.04

    Item: COLLAR *

    QTY:
    Ref: 060  Part #: 01517-71030  Price: $1.28

    Item: STUD *

    QTY:
    Ref: 060  Part #: 01173-51020  Price: $0.99

    Item: BOLT M10x1.25x20 mm ***

    QTY:
    Ref: 070  Part #: 04512-50100  Price: $0.99

    Item: WASHER,M10 SPRING LOCK ***

    QTY:
    Ref: 080  Part #: 02118-50100  Price: $0.99

    Item: NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

    QTY:
    Ref: 085  Part #: 3C001-85340  Price: $6.15

    Item: COLLAR (BRACKET, SEAT)

    QTY:
    Ref: 090  Part #: 3C081-85013  Price: $1,360.03

    Item: ASSY SEAT

    QTY:
    Ref: 100  Part #: 3C081-85022  Price: $957.90

    Item: ASSY SUSPENSION

    QTY:
    Ref: 110  Part #: 02763-50080  Price: $3.20

    Item: NUT, FLANGE ***

    QTY:
    Ref: 120  Part #: TD060-47764  Price: $12.54

    Item: STAY SEAT BELT

    QTY:
    Ref: 130  Part #: K3181-56882  Price: $122.54

    Item: KIT BELT,SEAT * ***

    QTY:
    Ref: 140  Part #: 01774-51020  Price: $2.21

    Item: BOLT M10x1.25x20 mm ***

    QTY:
    Ref: 150  Part #: 01754-50820  Price: $3.11

    Item: BOLT M8x1.25x20 mm ***

    QTY:
    Ref: 160  Part #: 01135-51025  Price: $1.44

    Item: BOLT M10x1.25x25 mm ***

    QTY:
    Ref: 170  Part #: 3C001-97010  Price: $24.15

    Item: KIT COLLAR (SEAT)

    QTY:
    Ref: 180  Part #: ---- -  Price: Call for price

    Item: MANUAL,INSTRUCTION S/N <=50829

    QTY:
