Ref	Part #	Item	Price
010	36340-41610	FRT.BRACKET	$299.07
010	35830-41610	FRONT BRACKET	$241.11
020	36340-41620	BRACKET,REAR ***	$152.00
030	01519-51848	STUD	$6.93
040	02076-50180	NUT ***	$1.94
050	04512-50180	WASHER, SPRING LOCK ***	$0.99
060	04811-50550	O RING	$1.98
060	35999-05460	OIL SEAL ***	$10.81
070	04811-50600	O RING *	$1.98
070	09230-65885	SEAL, OIL	$9.78
080	36280-41630	WASHER	$5.41
090	01073-51640	BOLT M16x1.5x40 mm	$2.92
090	01175-51645	BOLT M16x1.5x45 mm	$1.95
100	02172-50160	NUT, 149400 ***	$1.49
100	32580-44580	NUT	$13.15
110	38440-44750	WASHER, SEAL	$1.49
120	08511-05540	BUSHING	$17.32
120	08511-05540	BUSHING	$17.32
130	36280-41670	WASHER, THRUST	$40.82
140	08511-06040	BUSHING	$27.08
140	33750-41680	BUSHING	$35.79
150	36970-42140	ASSY CASE, FRONT DIF	$3,037.05
160	36840-42160	RING, INNER	$69.70
170	36840-42180	WASHER	$34.13
180	06331-35020	PLUG ***	$3.34
190	04717-02000	WASHER, SEAL W/RUBBER	$2.23
200	06331-35010	PLUG ***	$2.04
210	04717-01000	WASHER, SEAL W/RUBBER	$1.49
220	36540-42210	PINION BEARING CASE	$1,682.07
230	36740-42172	GASKET	$19.08
240	36280-43170	PIN	$12.22
250	36340-43180	BOLT, UBS	$4.13
260	01176-51295	BOLT	$4.28
270, 310	36740-42220	BOLT	$6.15
280, 320	04512-50120	WASHER, SPRING LOCK ***	$1.70
290	36540-42250	PINION CASE CAP	$618.01
300	04811-10750	O-RING	$3.90

Ref: 010 Part #: 36340-41610 Price: $299.07

Item: FRT.BRACKET

QTY:

Ref: 010 Part #: 35830-41610 Price: $241.11

Item: FRONT BRACKET

QTY:

Ref: 020 Part #: 36340-41620 Price: $152.00

Item: BRACKET,REAR ***

QTY:

Ref: 030 Part #: 01519-51848 Price: $6.93

Item: STUD

QTY:

Ref: 040 Part #: 02076-50180 Price: $1.94

Item: NUT ***

QTY:

Ref: 050 Part #: 04512-50180 Price: $0.99

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 060 Part #: 04811-50550 Price: $1.98

Item: O RING

QTY:

Ref: 060 Part #: 35999-05460 Price: $10.81

Item: OIL SEAL ***

QTY:

Ref: 070 Part #: 04811-50600 Price: $1.98

Item: O RING *

QTY:

Ref: 070 Part #: 09230-65885 Price: $9.78

Item: SEAL, OIL

QTY:

Ref: 080 Part #: 36280-41630 Price: $5.41

Item: WASHER

QTY:

Ref: 090 Part #: 01073-51640 Price: $2.92

Item: BOLT M16x1.5x40 mm

QTY:

Ref: 090 Part #: 01175-51645 Price: $1.95

Item: BOLT M16x1.5x45 mm

QTY:

Ref: 100 Part #: 02172-50160 Price: $1.49

Item: NUT, 149400 ***

QTY:

Ref: 100 Part #: 32580-44580 Price: $13.15

Item: NUT

QTY:

Ref: 110 Part #: 38440-44750 Price: $1.49

Item: WASHER, SEAL

QTY:

Ref: 120 Part #: 08511-05540 Price: $17.32

Item: BUSHING

QTY:

Ref: 120 Part #: 08511-05540 Price: $17.32

Item: BUSHING

QTY:

Ref: 130 Part #: 36280-41670 Price: $40.82

Item: WASHER, THRUST

QTY:

Ref: 140 Part #: 08511-06040 Price: $27.08

Item: BUSHING

QTY:

Ref: 140 Part #: 33750-41680 Price: $35.79

Item: BUSHING

QTY:

Ref: 150 Part #: 36970-42140 Price: $3,037.05

Item: ASSY CASE, FRONT DIF

QTY:

Ref: 160 Part #: 36840-42160 Price: $69.70

Item: RING, INNER

QTY:

Ref: 170 Part #: 36840-42180 Price: $34.13

Item: WASHER

QTY:

Ref: 180 Part #: 06331-35020 Price: $3.34

Item: PLUG ***

QTY:

Ref: 190 Part #: 04717-02000 Price: $2.23

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 200 Part #: 06331-35010 Price: $2.04

Item: PLUG ***

QTY:

Ref: 210 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 220 Part #: 36540-42210 Price: $1,682.07

Item: PINION BEARING CASE

QTY:

Ref: 230 Part #: 36740-42172 Price: $19.08

Item: GASKET

QTY:

Ref: 240 Part #: 36280-43170 Price: $12.22

Item: PIN

QTY:

Ref: 250 Part #: 36340-43180 Price: $4.13

Item: BOLT, UBS

QTY:

Ref: 260 Part #: 01176-51295 Price: $4.28

Item: BOLT

QTY:

Ref: 270310 Part #: 36740-42220 Price: $6.15

Item: BOLT

QTY:

Ref: 280320 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 290 Part #: 36540-42250 Price: $618.01

Item: PINION CASE CAP

QTY:

Ref: 300 Part #: 04811-10750 Price: $3.90

Item: O-RING

QTY:

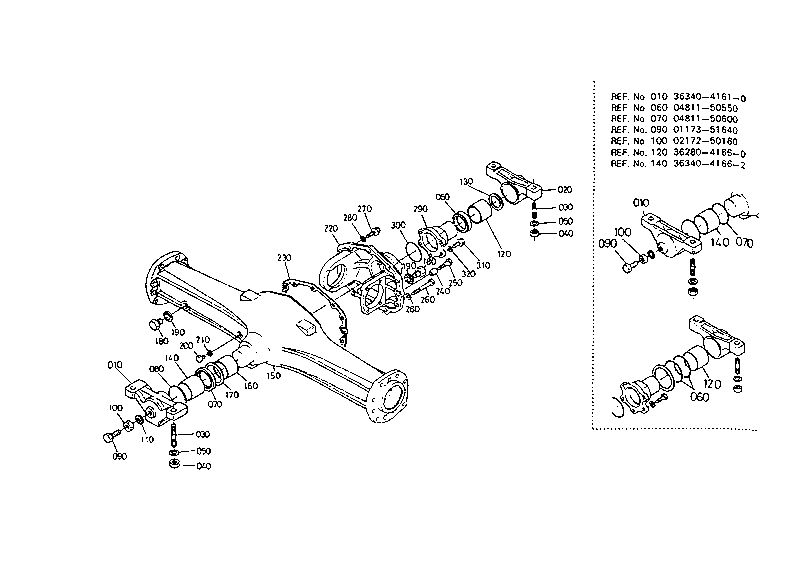

KUBOTA M6950DT PARTS FRONT DRIVE AXLE T08200 FRONT DIFF.CASE
