Ref	Part #	Item	Price
005	W71RM-00020	TRANSAXLE CVT, USCB ***	$78,506.31
010	3J080-13750	SLEEVE	$1,190.67
020	3J080-13760	CIRCLIP,INT(26X1.2)	$11.53
030	3J080-13770	SCREW,HEX SOC CAP	$63.68
040	3J080-28360	BEARING BALL,5	$122.72
050	3J080-22940	CIRCLIP,INT(80X2.5)	$14.55
060	3J080-31190	GEAR(11)	$2,508.67
070	3J080-22890	CIRCLIP,EXT(50X2)	$11.84
080	3J080-22990	RING SNAP,3	$4.49
090	3J080-31200	PLATE SCREEN,4	$163.48
100, 170	3J080-28190	SCREW,HEX SOC CAP(M6X12)	$1.43
110	3J080-28840	PIPE HYDROSTATIC,1	$90.15
120	3J080-22500	O-RING(2.5X13)	$2.73
130	3J080-22510	O-RING(14X3)	$4.49
140	3J080-31140	HYDRAULIC-UNIT STATIC	$25,608.01
150	3J080-27470	WASHER,PLAIN(35X13)	$37.62
160	3J080-24380	SCREW,HEX SOC CAP(M12X80)	$7.69
180	3J080-31240	PLATE, SHACKLE	$3.73

Ref: 005 Part #: W71RM-00020 Price: $78,506.31

Item: TRANSAXLE CVT, USCB ***

QTY:

Ref: 010 Part #: 3J080-13750 Price: $1,190.67

Item: SLEEVE

QTY:

Ref: 020 Part #: 3J080-13760 Price: $11.53

Item: CIRCLIP,INT(26X1.2)

QTY:

Ref: 030 Part #: 3J080-13770 Price: $63.68

Item: SCREW,HEX SOC CAP

QTY:

Ref: 040 Part #: 3J080-28360 Price: $122.72

Item: BEARING BALL,5

QTY:

Ref: 050 Part #: 3J080-22940 Price: $14.55

Item: CIRCLIP,INT(80X2.5)

QTY:

Ref: 060 Part #: 3J080-31190 Price: $2,508.67

Item: GEAR(11)

QTY:

Ref: 070 Part #: 3J080-22890 Price: $11.84

Item: CIRCLIP,EXT(50X2)

QTY:

Ref: 080 Part #: 3J080-22990 Price: $4.49

Item: RING SNAP,3

QTY:

Ref: 090 Part #: 3J080-31200 Price: $163.48

Item: PLATE SCREEN,4

QTY:

Ref: 100170 Part #: 3J080-28190 Price: $1.43

Item: SCREW,HEX SOC CAP(M6X12)

QTY:

Ref: 110 Part #: 3J080-28840 Price: $90.15

Item: PIPE HYDROSTATIC,1

QTY:

Ref: 120 Part #: 3J080-22500 Price: $2.73

Item: O-RING(2.5X13)

QTY:

Ref: 130 Part #: 3J080-22510 Price: $4.49

Item: O-RING(14X3)

QTY:

Ref: 140 Part #: 3J080-31140 Price: $25,608.01

Item: HYDRAULIC-UNIT STATIC

QTY:

Ref: 150 Part #: 3J080-27470 Price: $37.62

Item: WASHER,PLAIN(35X13)

QTY:

Ref: 160 Part #: 3J080-24380 Price: $7.69

Item: SCREW,HEX SOC CAP(M12X80)

QTY:

Ref: 180 Part #: 3J080-31240 Price: $3.73

Item: PLATE, SHACKLE

QTY:

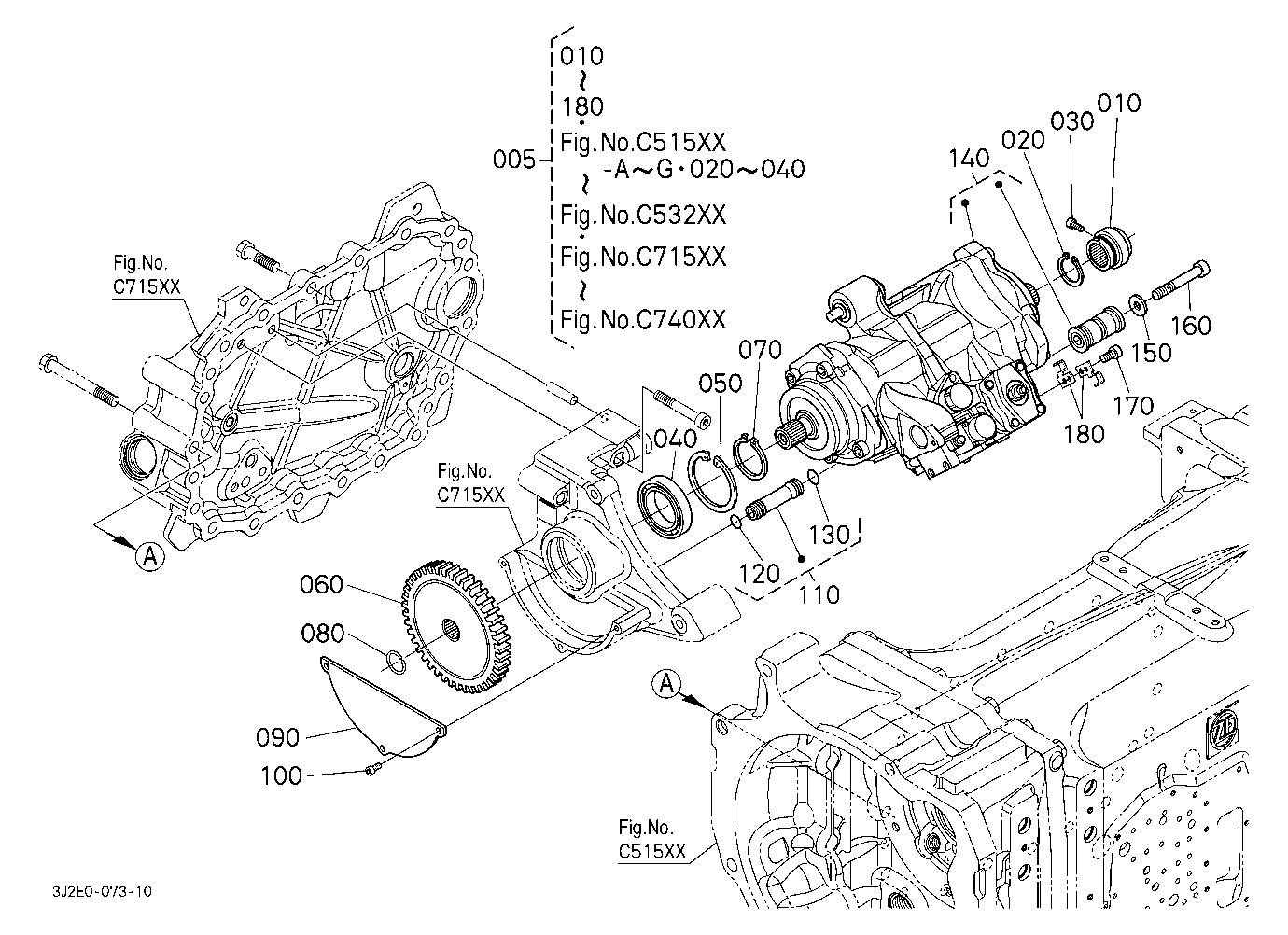

KUBOTA M7 132P KVT PARTS CLUTCH TRANSMISSION C71000 HYDRAULIC UNIT
