Ref	Part #	Item	Price
010	01053-50840	BOLT M8x1.25x40 mm ***	$0.99
020	02056-50080	NUT, HEX M8-1.25, 6T ***	$1.54
030	3J030-72150	SPRING	$7.79
040	3J036-54842	BRACKET CABLE	$62.58
050	01754-50820	BOLT M8x1.25x20 mm ***	$3.11
060	3J036-54963	LEVER,COMP BRAKE ***	$160.85
070	3J036-54932	CABLE(PARKING) ***	$225.98
080	3J036-54832	BRACKET HANDBRAKE	$45.87
090, 100	3J036-91550	BOLT(EN 1665,M8-16,C	$1.10
110	3J036-37310	CLAMP(PARKING)	$4.00
120	3J036-54850	COLLAR(1,PARKING)	$12.33
130	3J036-54860	COLLAR(2,PARKING)	$12.33
140	3J099-29778	NUT ISO 4032, M10, C10	$0.99
150	3J099-40949	NUT(DIN 985,M10,C8)	$8.59
160	T1065-72750	GROMMET	$2.37

Ref: 010 Part #: 01053-50840 Price: $0.99

Item: BOLT M8x1.25x40 mm ***

QTY:

Ref: 020 Part #: 02056-50080 Price: $1.54

Item: NUT, HEX M8-1.25, 6T ***

QTY:

Ref: 030 Part #: 3J030-72150 Price: $7.79

Item: SPRING

QTY:

Ref: 040 Part #: 3J036-54842 Price: $62.58

Item: BRACKET CABLE

QTY:

Ref: 050 Part #: 01754-50820 Price: $3.11

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 060 Part #: 3J036-54963 Price: $160.85

Item: LEVER,COMP BRAKE ***

QTY:

Ref: 070 Part #: 3J036-54932 Price: $225.98

Item: CABLE(PARKING) ***

QTY:

Ref: 080 Part #: 3J036-54832 Price: $45.87

Item: BRACKET HANDBRAKE

QTY:

Ref: 090100 Part #: 3J036-91550 Price: $1.10

Item: BOLT(EN 1665,M8-16,C

QTY:

Ref: 110 Part #: 3J036-37310 Price: $4.00

Item: CLAMP(PARKING)

QTY:

Ref: 120 Part #: 3J036-54850 Price: $12.33

Item: COLLAR(1,PARKING)

QTY:

Ref: 130 Part #: 3J036-54860 Price: $12.33

Item: COLLAR(2,PARKING)

QTY:

Ref: 140 Part #: 3J099-29778 Price: $0.99

Item: NUT ISO 4032, M10, C10

QTY:

Ref: 150 Part #: 3J099-40949 Price: $8.59

Item: NUT(DIN 985,M10,C8)

QTY:

Ref: 160 Part #: T1065-72750 Price: $2.37

Item: GROMMET

QTY:

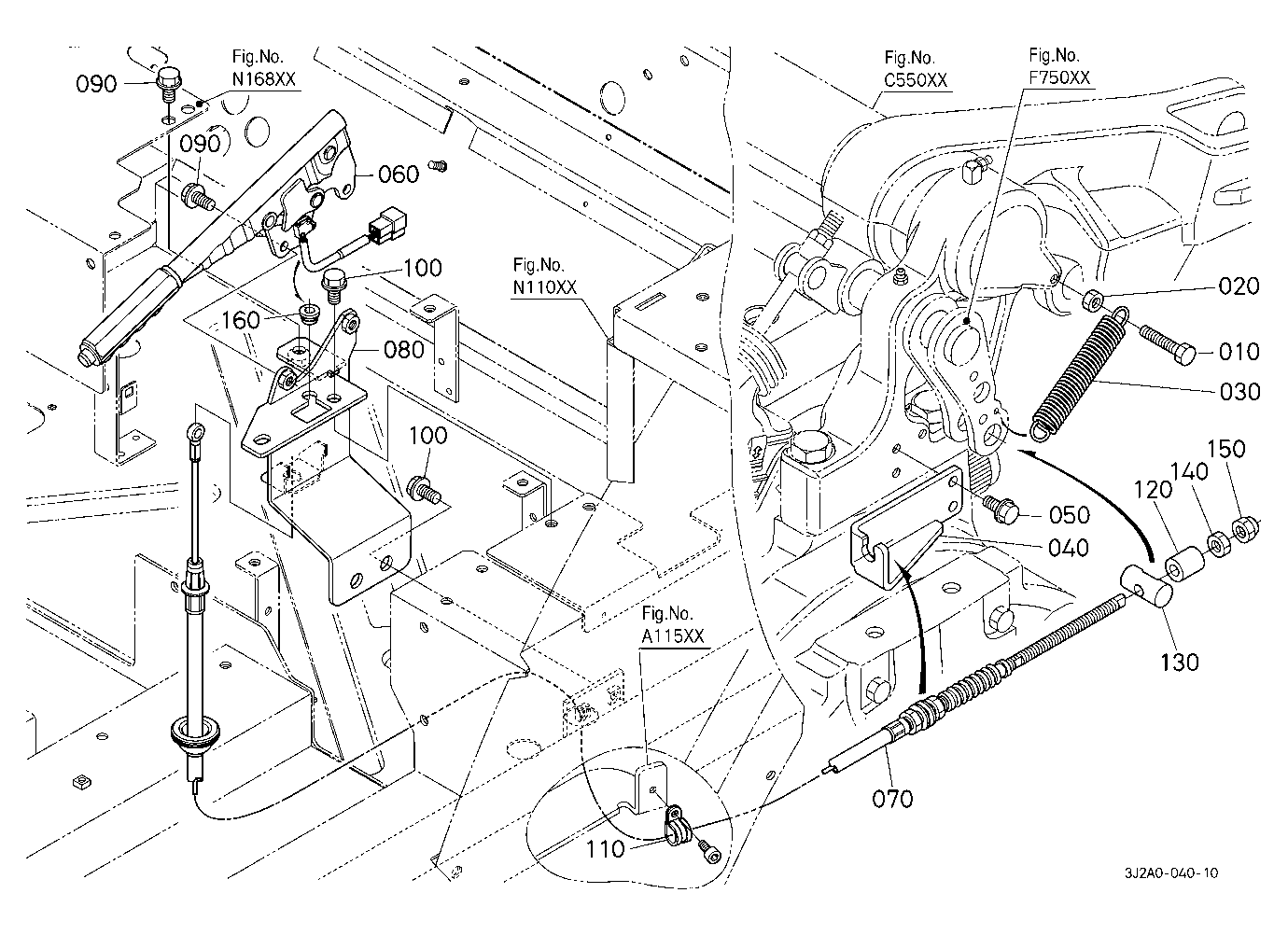

KUBOTA M7 132P KVT PARTS REAR AXLE BRAKE F80000 PARKING BRAKE LEVER
